Pipe transits

Sort by:

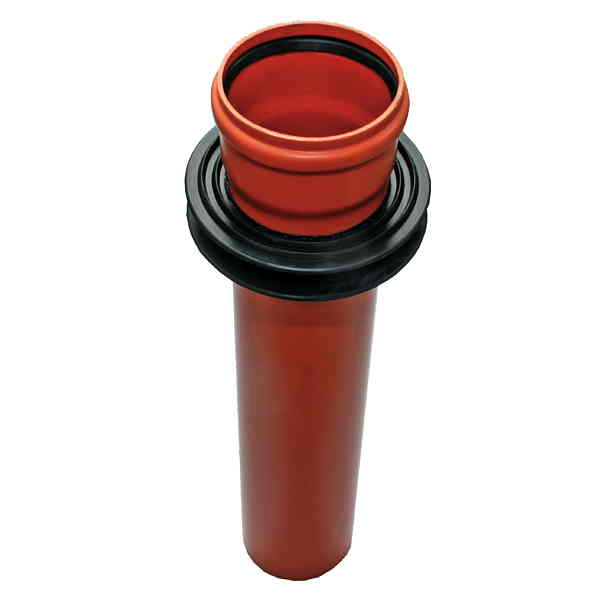

KG - Bodendurchlässe

MPA tested! KG pipe length 0.5 mwith water stop and one-sided sleeve without cover

KG-Deckel

KG cover for Pipe bushing and floor outlets

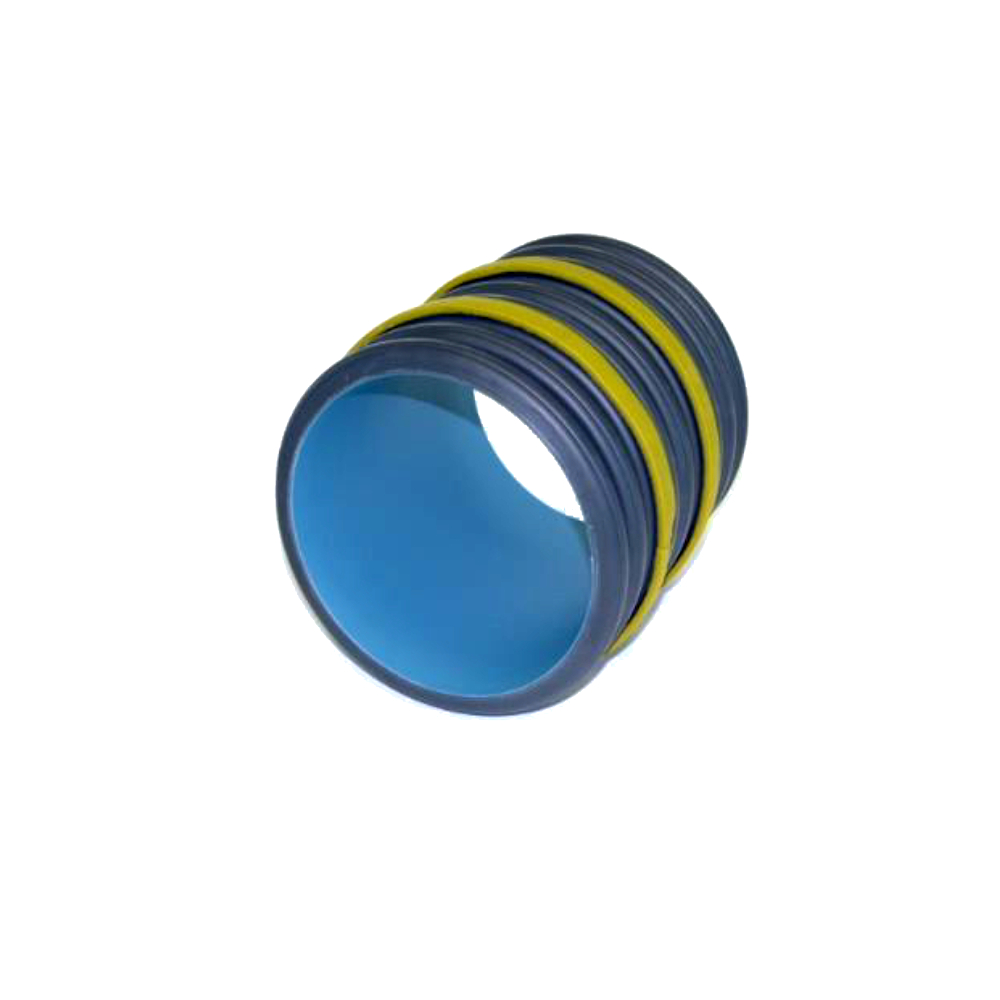

Kunststoff-Futterrohr WELLO mit Quellband

WELLO, the lining tube made of PE with an all-round swelling coating. The tube is smooth inside. The undulating outside clings to the concrete. Two swelling tapes applied around the center also prevent water from entering the structure Wello casing, double security through corrugation and swelling tape, sealing by means of an annular seal. Tested up to 30m water column.

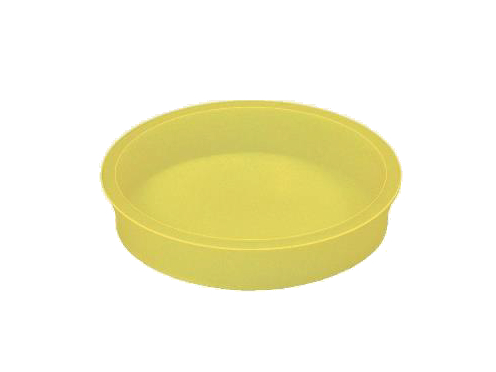

Kunststoffverschlussdeckel für Futterrohr

Sealing cap + formwork aid for WELLO and FASO lining tube reusable

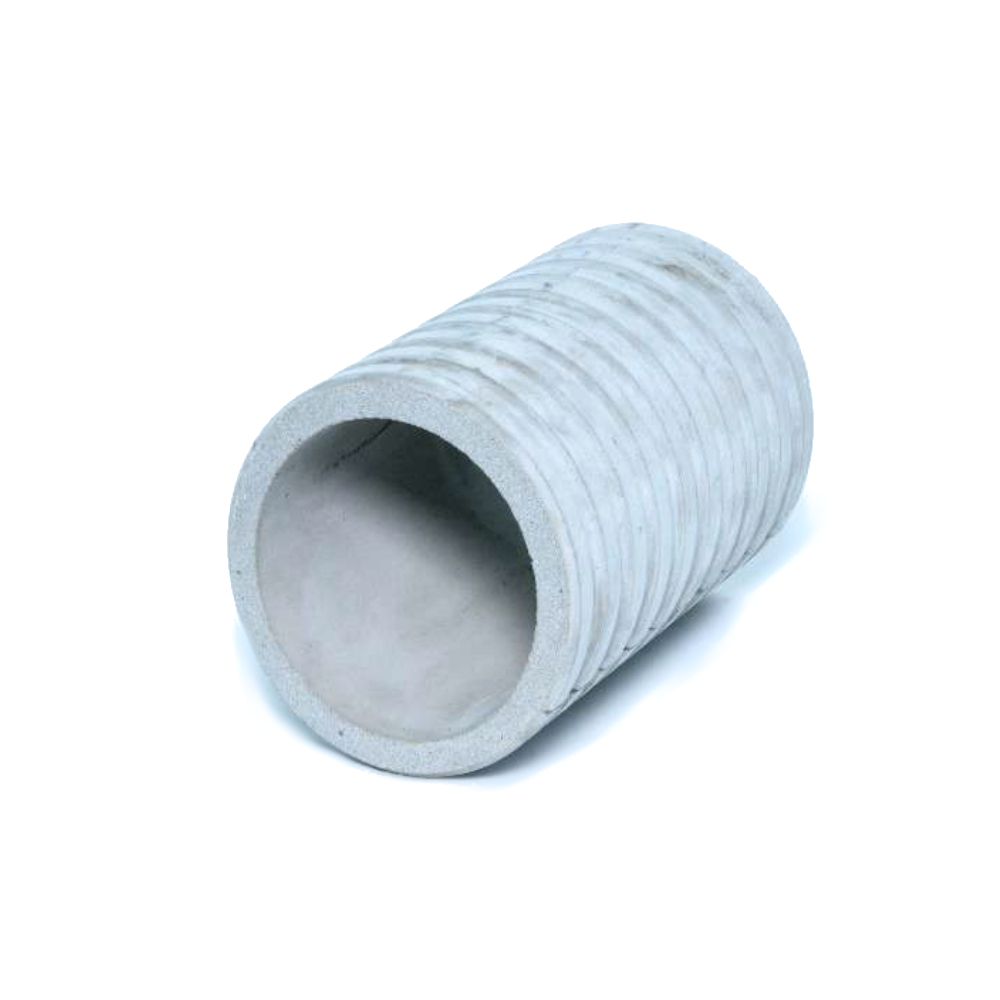

Faserzement-Futterrohr

The fiber cement wall sleeves are available for immediate delivery from DN 80 to DN 600. The tube is smooth on the inside and roughened on the outside. Because the undulating outside connects with the concrete no water circulation occurs.

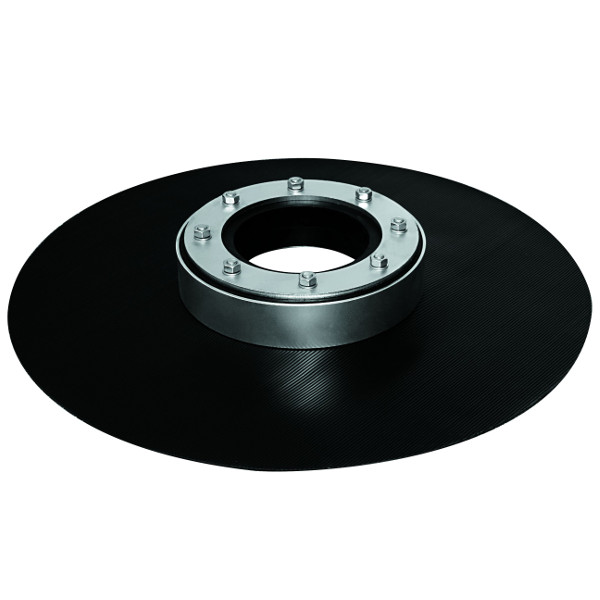

Foil clamping flange type FKF Uni A Ø 150 1.5 bar

Folienklemmflansch Typ FKF - Universal

For sealing media of any material from a wall,against pressing water up to 1.5 bar Scope of delivery of the film clamping flange type FKF Universal: Seal made of stainless steel V2A, 40 mm wide Foil flange 1.2 mm, based on DIN 16937, oil and bitumen-resistant, approx. 15 cm all round Adhesive and sealant PU 50 Notched spatula Pressure roller and pencil

Foil clamping flange type FKF Uni A Ø 200 2.5 bar

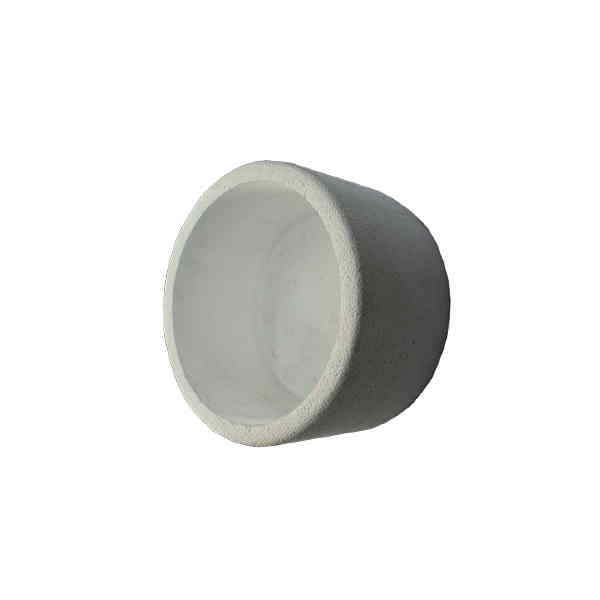

KG-Muffenring

For floor outlets

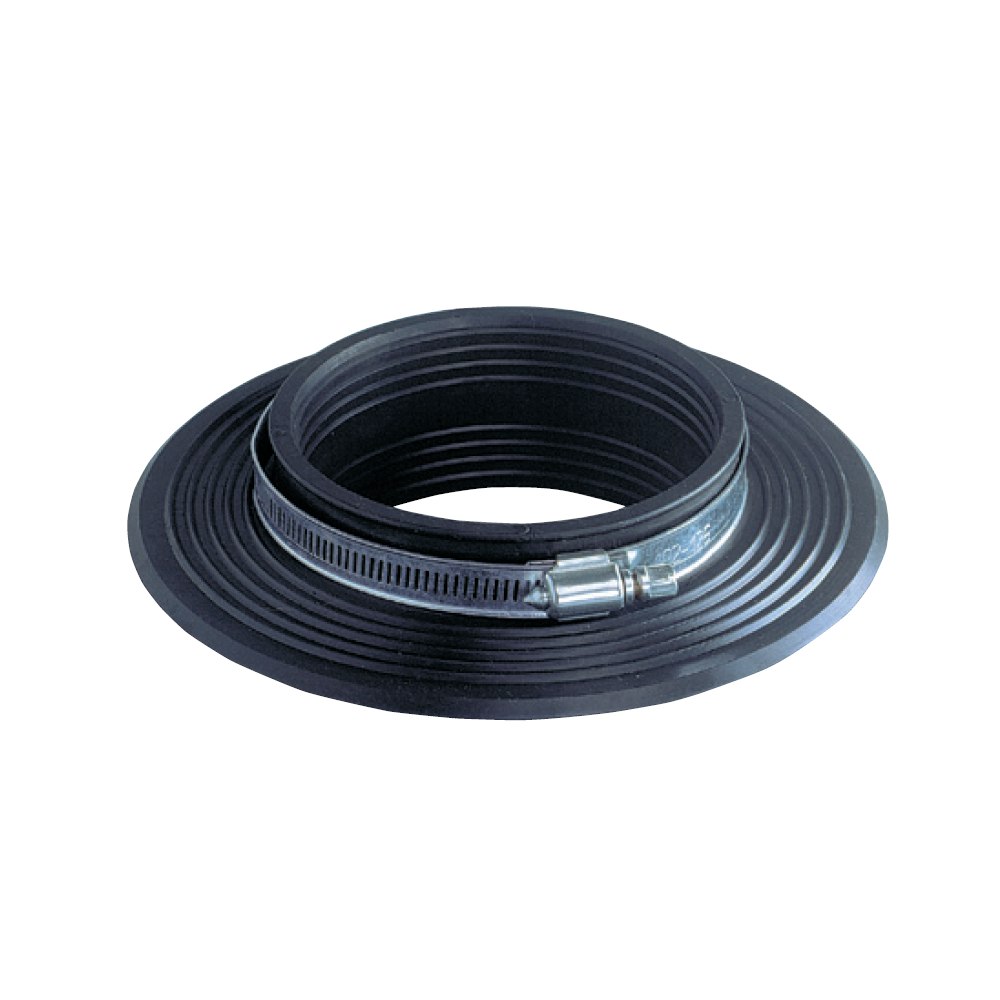

Mauerkragen aus TPE - Themoplastischem Elastomer

MPA certificated! Masonry collars from TPE-Themoplastic Elastomer Application area:The sealing collar is used whenever a water-tight lead-through of pipe lines through foundation slabs, walls, and masonry is required. The sealing collar, which has passed the pressure test at 5 bar, prevents moisture from getting into the building along the outer pipe walls. Tested for impermeability up to 50 m water column. Properties:The sealing collar is supplied in pre-assembled condition with 2 stainless steel straps. The circular, 4 cm wide collar, which is equipped with additional waterstops, prevents liquids from getting into the building. Small waterstops inside the collar ensure water-tightness up to a water column of 50 m after tightening of the stainless steel fastening straps.Assembly clean pipe surface if necessary slide on the sealing collar and fix it in the centre of the concrete/wall tighten the fastening straps

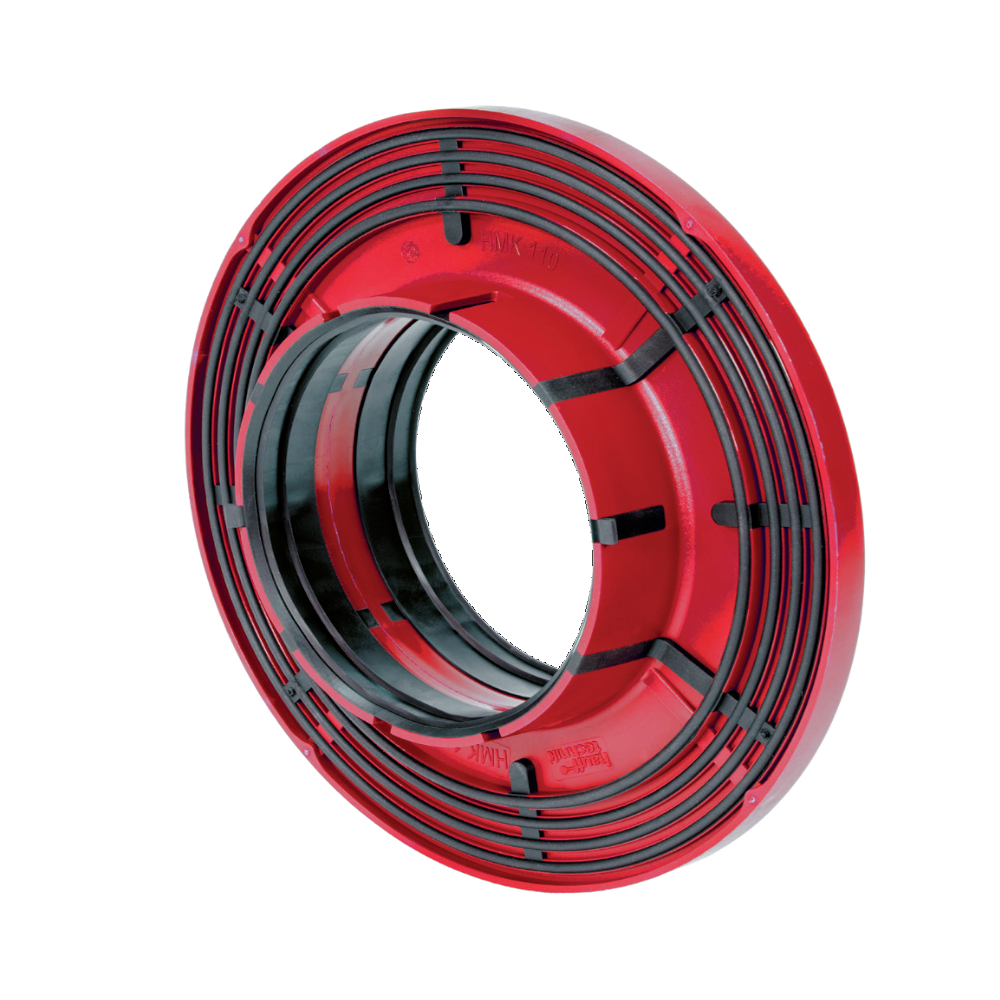

Sealing collar KG-FIX 110

The new KG-FIX sealing collar is suitable for sewage pipes DN110 (outer diameter ø 110 mm) and rigid, smooth plastic pipes according to DIN EN 1852-1 / EN 13476 / DIN 16873 / DIN 8061/62, which are used watertight in floor slabs, concrete walls and shafts .is suitable for all common pipe materials. Ø 110 mm Injection molding technology high dimensional stability through 2-components radon proof 25 m water column pressure-tight up to 2.5 bar Materials ABS / TPE checked by KIWA building test

Anschlusstrichter AT 110

Anschlusstrichter mit und ohne vormontiertes KG-Rohr erhältlich. Eigenschaften und technische Daten: lieferbar in DN 100 (Außendurchmesser 110 mm) Auslieferung inkl. Verschlussdeckel als Schutz gegen Beton und Schmutz, trittsicher und stolperfrei Trichter ø innen = 250 mm, ø aussen = 370 mm maximaler Versatz 90 mm • Anschlusstrichter aus ABS WU-Beton Beanspruchungsklasse 1, Beanspruchungsklasse 2 DIN 18533 W1.1-E, Bodenfeuchte Gas- und wasserdichte Verbindung mit der Bodenplatte dank integrierter Dreistegdichtung KIWA-Geprüft aus Radondichtem ABS - Kunststoff mit integrierter Libelle zur lagemäßigen Ausrichtung des Anschlußtrichters kann zur Bodenplattenentwässerung während der Bauphase verwendet werden; integrierte Schmutzfangrillen

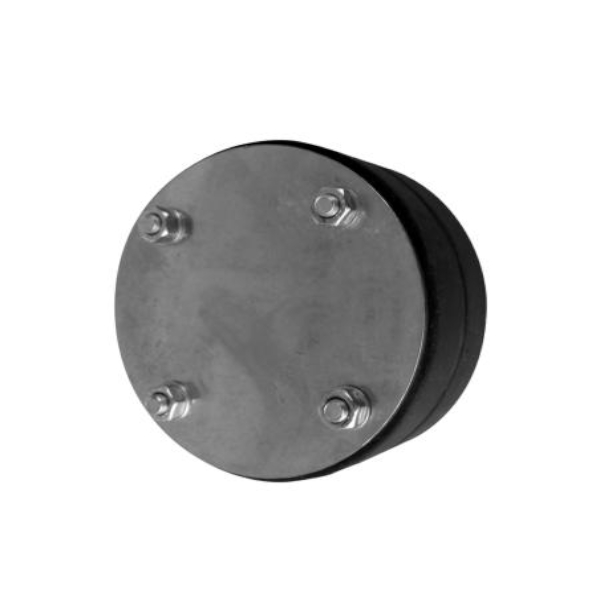

Blind plug compact V2A Ø 50 - 250 mm

Gas and water tight sealing for drill holes, tubes, etc. Rubber insert made of EPDM, press plates made of stainless steel V2A completly gastight and watertight pressing water 2.5 bar (30 m WS) radon tight KTW/W270 drinking water - quality

Seal "onion ring" technology Ø 100 mm - divisible MR Ø 25, 32, 40, 50 und 63 mm

Super segment ring technology for cables and pipes Open the pipe seal. Cut into the selected segment rings at the predetermined separation point with a sharp knife and tear off 5 segment rings with a diameter of 25 - 63 mm segment ring Pipe area Plug Ø 25 - 28 mm Nr. 1 Ø 32 mm Nr. 2 Ø 40 mm Nr. 3 Ø 50 mm Nr. 4 Ø 63 mm

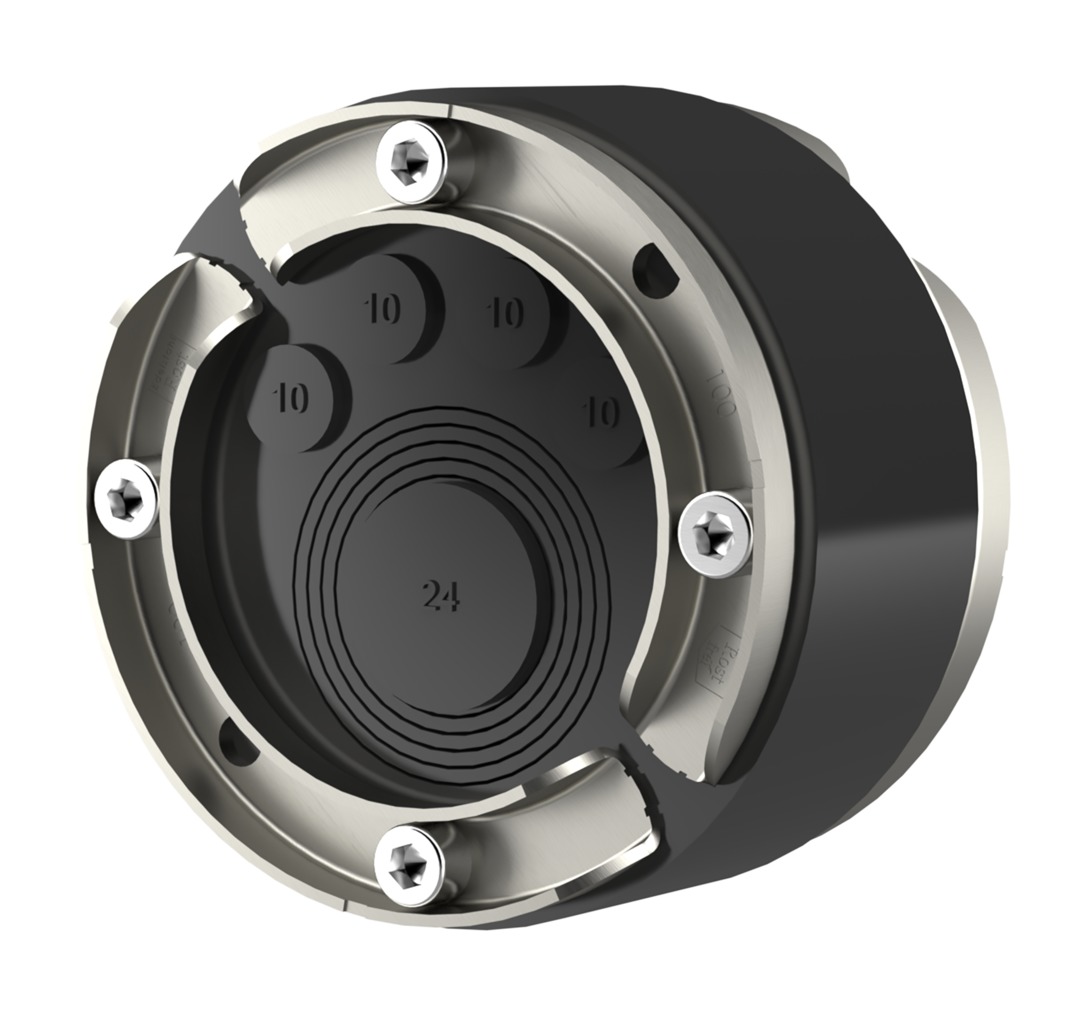

Annular seal - cable Ø 100 mm solid

Annular seal - cable 5-fold Ø 100 mm MR 8-35 mm Tested up to 10 m WS (1 bar) Hinged annular seal for core drilling / wall sleeves Ø 100 mm Segment ring technology for 1 cable / pipe Ø 22 - 44 mm as well as 4 cables Ø 7-12 mm completely gastight and watertight Sealing width 40 mm, pressure-tight up to 1 bar U-profile and screws made of stainless steel V2A EPDM rubber insert integrated blind plug We expressly point out that if there are deviations from the information in the assembly instructions and if our products are used improperly, no guarantee is given for any consequential damage.

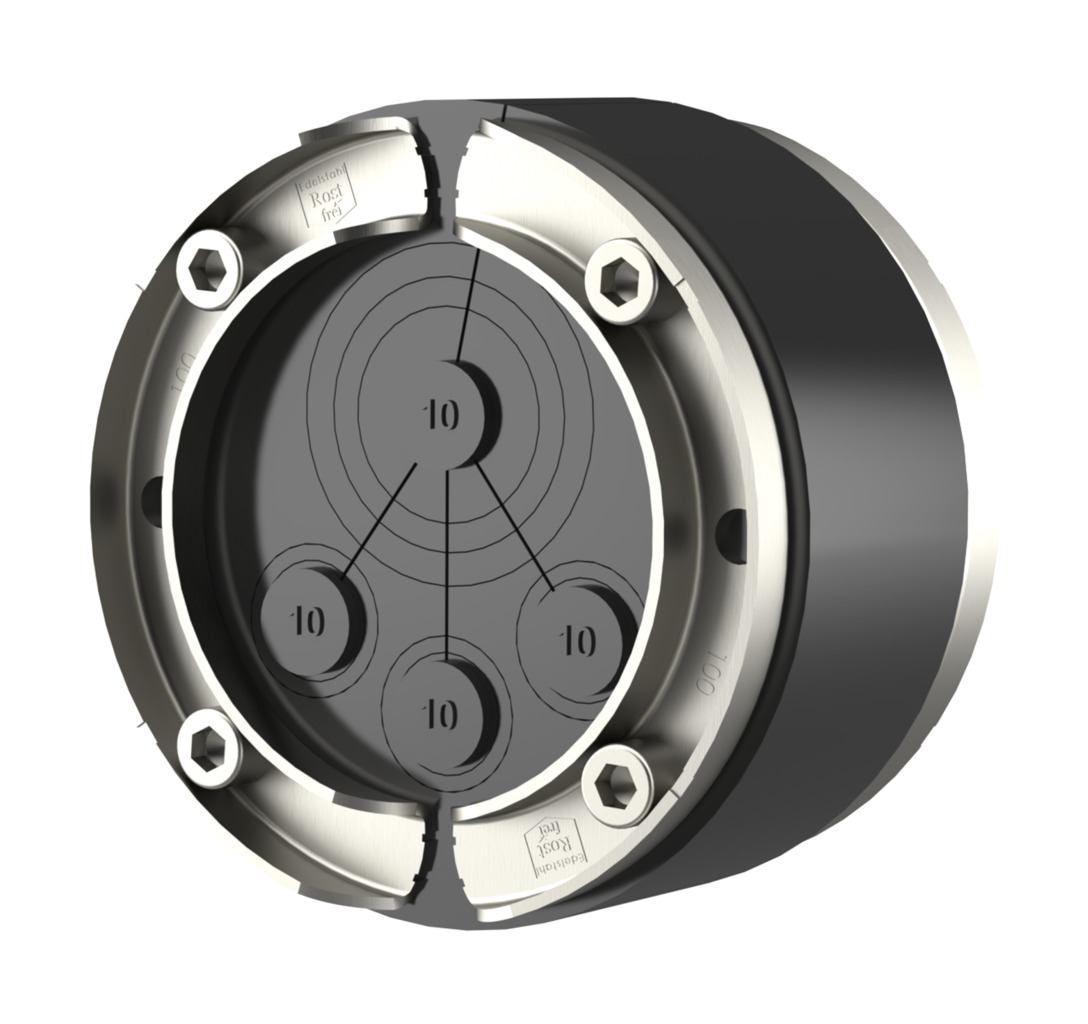

Annular Seal - cable Ø 100 mm foldable

Annular seal - 4-fold cable Ø 100 mm MR Ø 6-40 mm Tested up to 10 m WS (1 bar) Hinged Annular seal for core drilling / wall sleeves Ø 100 mm Segment ring technology for 1 cable / tube Ø 25, 32 or 40 mm as well as 3 cables Ø 6-18 mm completly gastight and watertight Sealing width 40 mm, pressure-tight up to 1 bar profile and screws made of stainless steel V2A EPDM rubber insert integrated blind plug We expressly point out that if there are deviations from the information in the assembly instructions and if our products are used improperly, no guarantee is given for any consequential damage. MR = carrier pipe. Technical changes reserved.

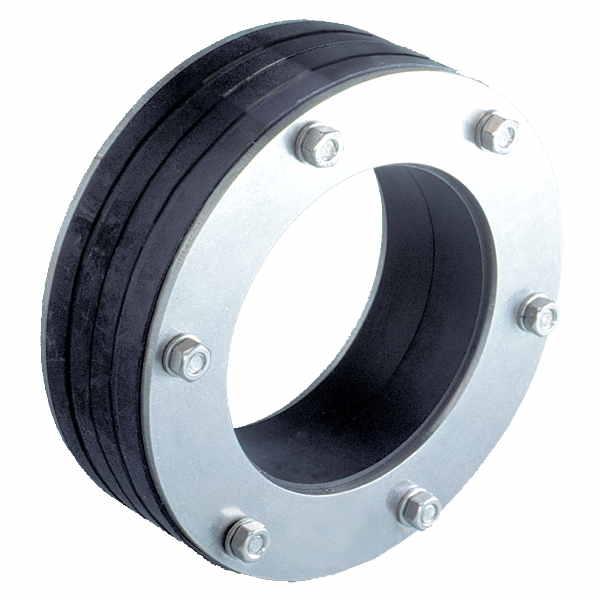

Ringraumdichtung; Compakt Universaldichtung Ø 150 mm

Core drilling Ø 150 mm Weight approx. 1.2 kg further dimensions on request

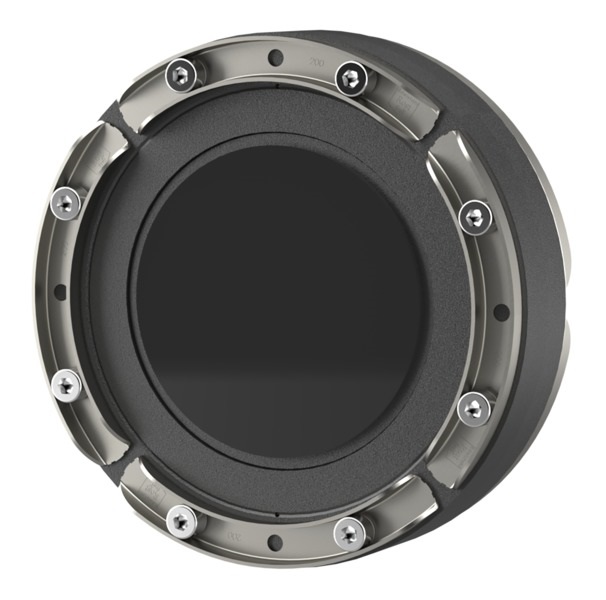

Seal "onion ring" technology Ø 200 mm - divisible MR Ø 110, 125, 135, 160 mm

Super segment ring technology for cables and pipes segment rings with diameter inscription for Ø 110, 125, 135 and 160 mm Subsequently divisible for pipes that have already been laid for core drilling / wall sleeves Ø 150 mm Seal width 40 mm, pressure-tight up to 1 bar integrated torque control visible and tangible U-profile and screws made of stainless steel V2A EPDM rubber insert integrated blind plugs

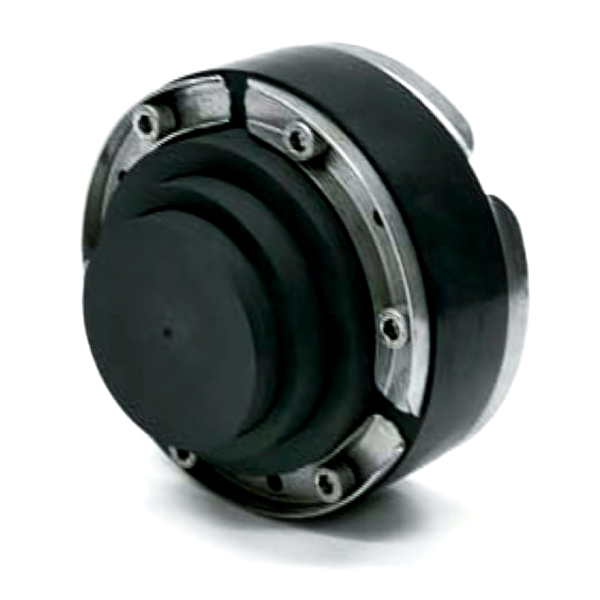

Zwiebeldichtung Basic 1

Annular seal Basic 1 made of stainless steelStainless V2A Seal width 40 mm completely gastight and watertight built-in torque control EPDM rubber insert To split the press seal Basic 1, loosen and remove a screw. Unfold the front and rear press segment and cut the rubber press ring approx. 10 mm to the left or right of the screw hole with a sharp knife.

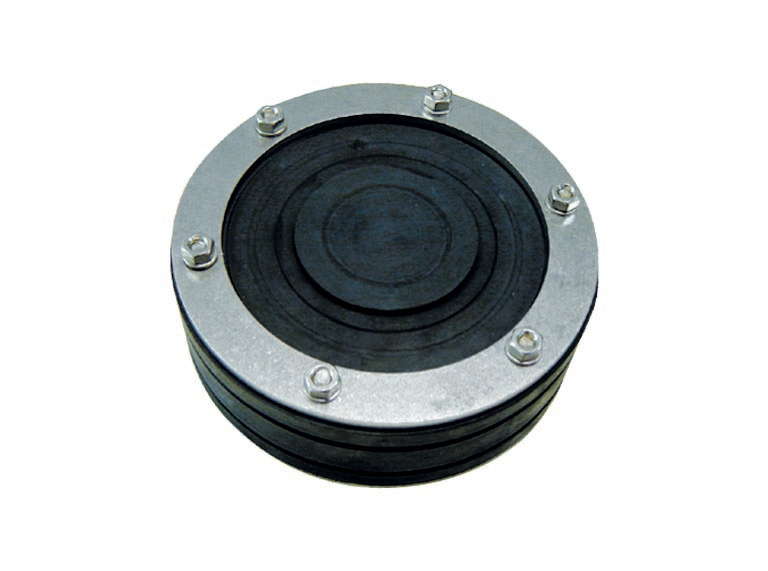

Seal "onion ring" technology Ø 150 mm - fixed type 1 MR Ø 32, 40, 50, 63, 76, 90, 110 mm

Seal for pressing and non-pressing water Tested for continuous use up to 30 m water column Press plates and screws made of V2A stainless steel Sealing width 40 mm NBR rubber insert Temperature range -30 ° C to + 120 ° C

Seal "onion ring" technology Ø 150 mm - fixed type 2 width 40 mm MR Ø 75, 90, 110 mm

Super segment ring technology for cables and pipes 3 segment rings with diameter lettering for Ø 75, 90 and 110 mm Subsequently divisible for pipes that have already been laid for core drilling / wall sleeves Ø 150 mm Seal width 40 mm, pressure-tight up to 1 bar integrated torque control visible and tangible U-profile and screws made of stainless steel V2A EPDM rubber insert integrated blind plug

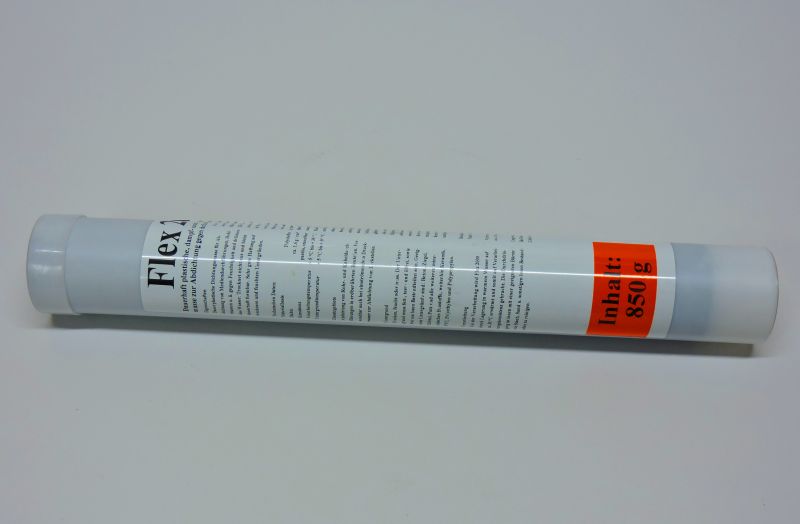

Flex 2000 sealing paste

Technical description: Storage: 2 years at 20 ° C Consistency: pasty, stable Processing temperature: + 5 ° C to + 35 ° C Consumption: approx. 1.6 kg per liter of cavity Heat resistance: + 50 ° C

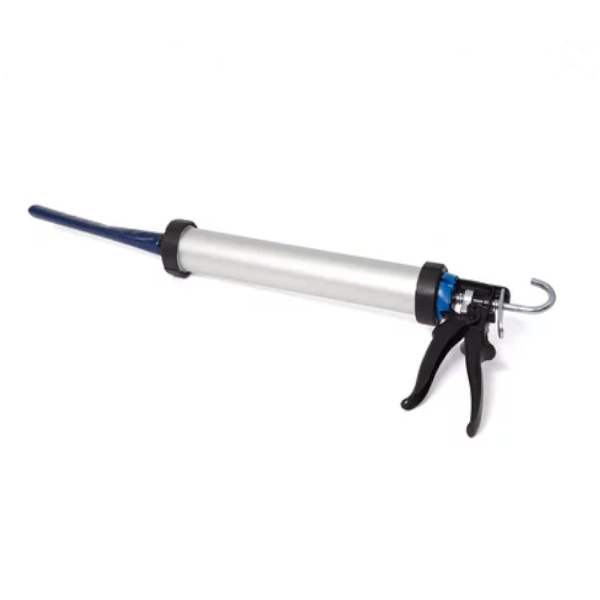

Cartridge gun for Flex 2000

The Flex 2000 cartridge is clamped in the cartridge gun and pressed into the penetration from back to back with an attached flexible spray nozzle in a layer thickness of at least 8 cm.

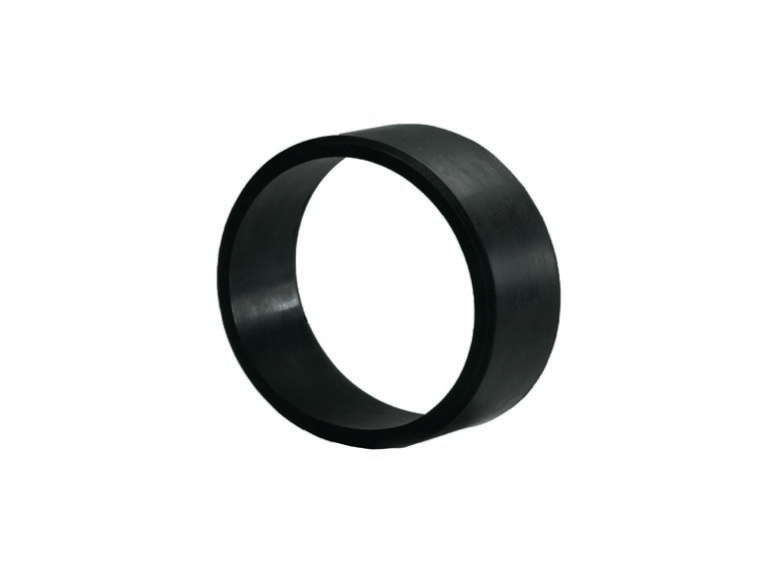

Adapterring für Ringraumdichtung Ø

for every annular seal with a sealing width of 40 mm
