Properties

ø in mm: 110 mm

Mauerkragen aus TPE - Themoplastischem Elastomer

Product number: 61LXMK110

Available, delivery time: 1-3 days

ø in mm

Price on request

Stk

Description

MPA certificated!

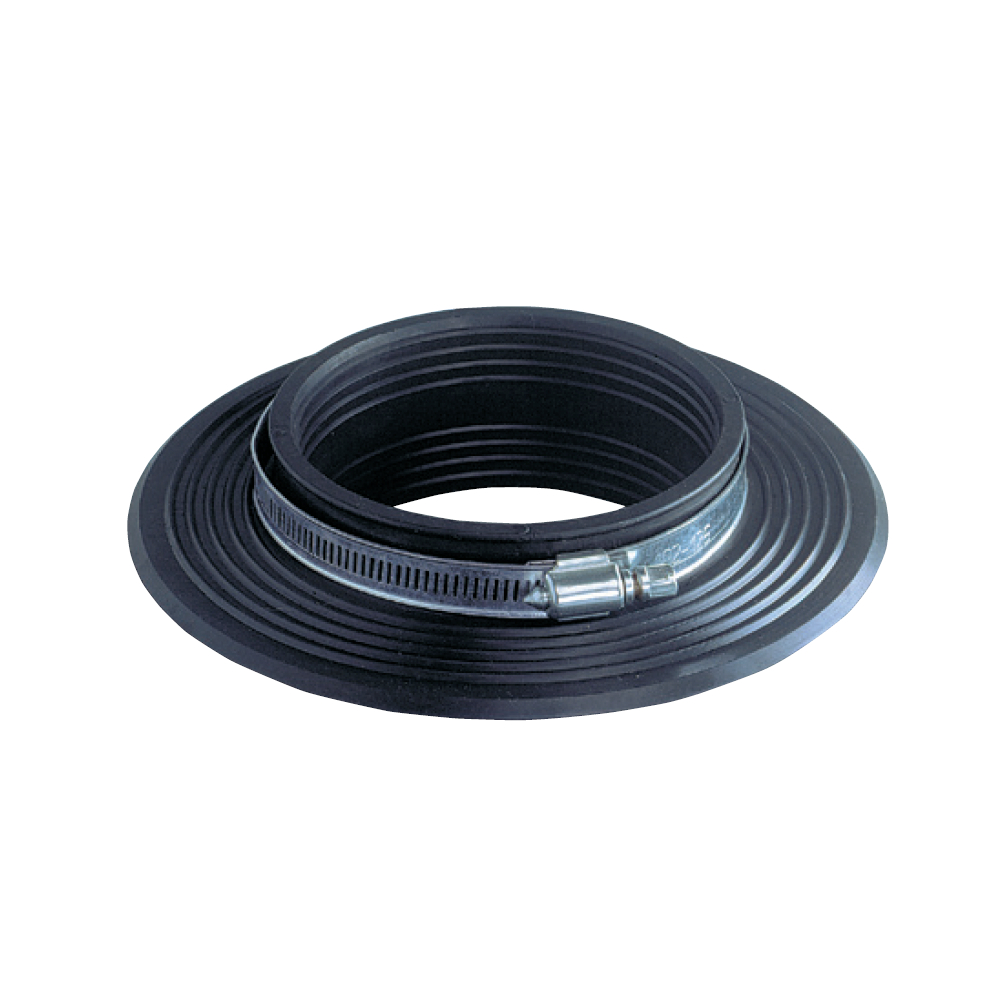

Masonry collars from TPE-Themoplastic Elastomer

Application area:
The sealing collar is used whenever a water-tight lead-through of pipe lines through foundation slabs, walls, and masonry is required.

The sealing collar, which has passed the pressure test at 5 bar, prevents moisture from getting into the building along the outer pipe walls.

Tested for impermeability up to 50 m water column.

Properties:

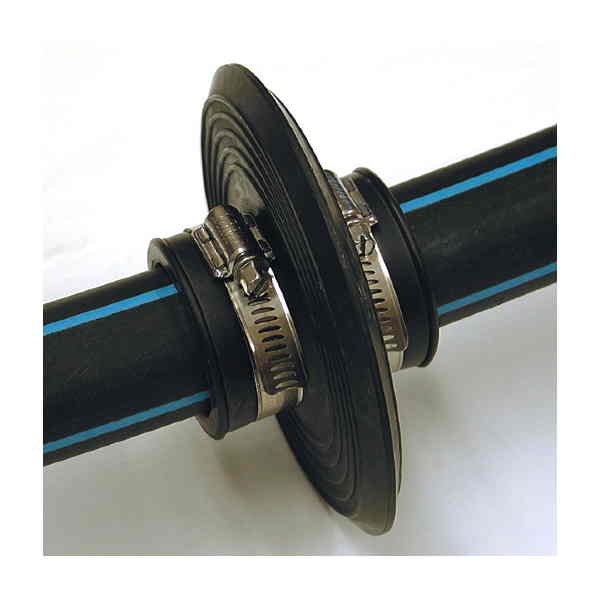

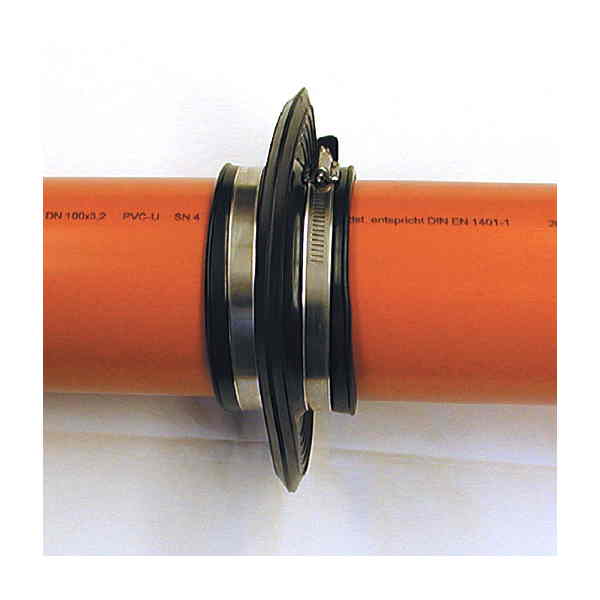

The sealing collar is supplied in pre-assembled condition with 2 stainless steel straps.

The circular, 4 cm wide collar, which is equipped with additional waterstops, prevents liquids from getting into the building.

Small waterstops inside the collar ensure water-tightness up to a water column of 50 m after tightening of the stainless steel fastening straps.
Assembly

  • clean pipe surface if necessary
  • slide on the sealing collar and fix it in the centre of the concrete/wall
  • tighten the fastening straps

Properties

ø in mm: 110 mm
Downloads "Mauerkragen aus TPE - Themoplastischem Elastomer"
Filter products
Variants

With the help of our variant list you can find your article faster and easier.

Product Nr.
Product
ø in mm
Price
Action
61LXMK025
 Mauerkragen aus TPE - Themoplastischem Elastomer
25 mm
61LXMK032
 Mauerkragen aus TPE - Themoplastischem Elastomer
32 mm
61LXMK063
 Mauerkragen aus TPE - Themoplastischem Elastomer
63 mm
61LXMK075
 Mauerkragen aus TPE - Themoplastischem Elastomer
75 mm
61LXMK090
 Mauerkragen aus TPE - Themoplastischem Elastomer
90 mm
61LXMK125
 Mauerkragen aus TPE - Themoplastischem Elastomer
125 mm
61LXMK140
 Mauerkragen aus TPE - Themoplastischem Elastomer
140 mm
61LXMK170
 Mauerkragen aus TPE - Themoplastischem Elastomer
170 mm
61LXMK180
 Mauerkragen aus TPE - Themoplastischem Elastomer
180 mm
61LXMK225
 Mauerkragen aus TPE - Themoplastischem Elastomer
225 mm
