Technical specifications: Load capacity: 500 kg / m², max. 1500 kg Extracts max. 125 kg Attachment max. 300 kg Platform height: stepless from 0.46 - 1.80 meters without wheelset Platform size: width 1.20 m length 2.19 - 3.49 m Transport dimensions: 2.19 x 1.26 x 0.46 m Weight: 498 kg Electrical connection: 1 device plug 230V 16A feed
with control element 230 Vload capacity 3t Technical specifications: 800 kg / m², max. 3000 kg, pull-outs max. 125 kg stepless from 0.4 - 1.99 m (without wheelset) Platform size: 1.68 x 3.16 - 5.16 m
Handgerät für die einfache Reinigung von Kanten von Schaltafel von 12 - 27 mm.
Clean, save and extend the life time of formwork plywood, planks, etc. The machine cleans and oilis the surface and longitudinal edges of formwork plywood. Tech. Data: Engine: 0,86 kW 400 V 50HZ Mould oil pump: 0,11 kW 400 V 50HZ (with extra switch) Total length: 2815 mm Total width: 880 mm Total height: 1196 mm Weight: 298 kg Max. Work height: 60-500 mm Max. Run power: 15-32 mm

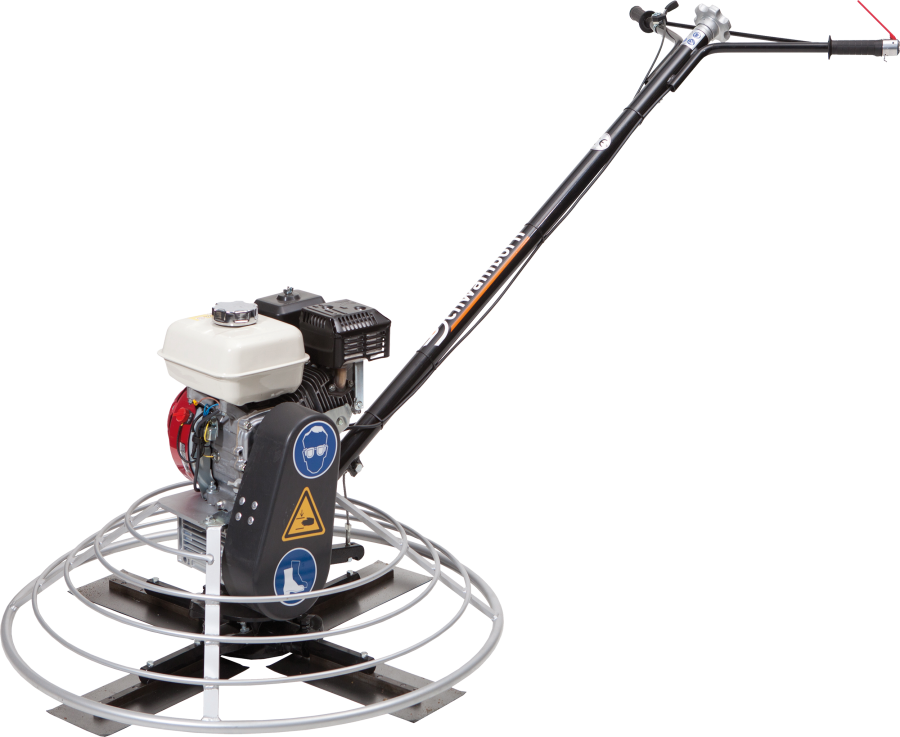

BEG 90 Standard Concrete smoothing machine to smooth concrete and floor screed for perfect surface compression. Simple and safe in usage. Solid, reliable and long lifetime through the strong tubular steel frame and worm gear. Special features: steel frame Power transmission with centrifugal clutch Simple Maintenance Gear, Maintenance-free > EINSATZMÖGLICHKEITEN Smoothing and compressing of concrete > TECHNICAL DATA Position feature Engine 4,8 kW Ø-Working width 900 mm Work weight 92 kg Ø-Tool 900 mm Fuel tank 3,6 l Apply Concrete, floor screed
BEG 180 Concrete smoothing machine to smooth concrete and floor screed for perfect surface compression. Simple and safe in usage. Solid, reliable and long lifetime through the strong tubular steel frame and worm gear. Special features: steel frame Power transmission with centrifugal clutch Simple Maintenance Gear, Maintenance-free > EINSATZMÖGLICHKEITEN Smoothing and compressing of concrete > TECHNICAL DATA Position Feature Engine 17,6 kW Ø-Working width 2 x 900 mm Work weight 344 kg Ø-Tool 2 x 900 mm Fuel tank 21 l Apply Concrete, floor screed
Save time and effort at the building: with the band saw UVB Z 500 S for cutting gas-aereated concrete blocks and expanded clay - easy, quick and precise. The quick pay-back time makes it a profitable investment! Advantages: Torsionally rigid body. Practical transport position. Precise saw blade guidance. Saw table made of aluminium. Vulcanised rubber lining. Automatic limit stop. Quick changing of saw blade (also suitable for wood). On request with optional dust vacuum.
Carbide tipped saw band: Excellent for cutting abrasive materials e.g.: aerated concrete, Ytong, aerated concrete. For use in the construction industry.
The machine SR 1000 is a robust stone cutting machine for wet cutting. Provided with a diamond dividing disc it is used for cutting bricks, Ytong, concrete, lime sand brick, clinker and similar material. Robust, powerful and longliving due to its very stable construction. Technical data: engine: 7,5 kW 400 V 50 HZ<?xml:namespace prefix = "o" /> water pump: TB 16 0.07 kW 400 V 50 HZ dividing disc: Ø 900 or 1000 mm Bo 60 mm cut depth: max. 365/420 mm cut height: 650 mm feed: automatic with handrail Dimension: overall length 1150 mm overall width 860 mm overall height 2000 mm weight 415 kg
The machines BY 300 and BY 760 are robust stone cutting machines for wet cutting. Provided with diamond dividing discs they are used for cutting bricks, Ytong, concrete, lime sand brick, clinker and similar material. Robust, powerful and longliving due to its very stable construction. engine: 5,5 kW 400 V 50 HZ water pump: TB 16 0.07 kW 400 V 50 HZ dividing disc: Ø 650 mm Bo 60 mm cut depth: max. 250/265 mm cutting length: 600 mm height adjustment: with tension spring and seesaw overall length: 1620 mm overall width: 750 mm overall height: 1700 mm weight: 248 kg
Plate cutting machines Steinadler model SLK 600-35 / 40 Technical specifications:Speed: 2800 rpmWater pump: WP 85 230 V 50 HZ with plug; Article no .: 55EE0711 Cutting length: 600 mm Height adjustment: with tension spring and rocker Dimensions: L / W / H: 1200/570/650 mmWeight: 87 kg
The machine Rasant 650 is a robust stone cutting machines for wet cutting. Provided with diamond dividing discs they are used for cutting bricks, Ytong, concrete, lime sand brick, clinker and similar material. engine: 5,5 kW 400 50 Hz water pump: TB 16 0,07 kW 400 V 50 HZ dividing disc: Ø 625 or 650 mm Bo 60 mm cut depth: max. 250/265 mm cutting length: 500 mm height adjustment: with tension spring and seesaw overall length: 1450 mm overall width: 650 mm overall height: 1550 mm weight: 210 kg
Ideal for the nature and cast stone treatment. Cut-exact precise guidance due to the extremely stable construction. The model AR is by default equipped with feather height adjustment. On request a spindle height adjustment is also manufactured. Water inlet and electric cables are led about a synthetic material links chain. Engines with better performance and other engine speeds on inquiry. For easy transporting, the machine can be demounted into 3 parts. Accessories: lateral roller table with stop, lateral bearing with stop.Rollable stable underframe.
engine: 2 kW 230 V 2,2 kW 400 V S6 rotation speed: 2800 rpm water pump: WP 85 230 V 50 HZ with plug dividing disc: Ø 350 Bo 30 mm cut depth: max. 110 mm cutting length: 750 / 1000 / 1200 mm height adjustment: with tension spring and seesaw mitre cut: 0 - 45° stand: fixed (standard) overall length: 1300 / 1550 / 1800 mm overall width: 780 mm overall height: 1400 mm weight: 120 / 140 / 160 kg
Ideal for the nature and cast stone treatment. Cut-exact precise guidance due to the extremely stable construction. The model AR is by default equipped with feather height adjustment. On request a spindle high adjustment is also manufactured. Machine lacquered / water tub hot galvanized, table support electrolytically galvanized, guide rails electrolytically galvanized, cutting support with prisms rolls guidance, long notice 0 - 500 mm, 500 - 1000 mm, feed with chain and handwheel transmission (2 speeds)Accessories: lateral roller table with stop, lateral bearing with stop.
The machines BY 300 and BY 760 are robust stone cutting machines for wet cutting. Provided with diamond dividing discs they are used for cutting bricks, Ytong, concrete, lime sand brick, clinker and similar material. Robust, powerful and longliving due to its very stable construction. engine: 5,5 kW 400 V 50 HZ water pump: TB 16 0.07 kW 400 V 50 HZ dividing disc: Ø 750 mm Bo 60 mm cut depth: max. 325 mm cutting length: 600 mm height adjustment: with tension spring and seesaw weight: 285 kg
The machines BY 300 and BY 760 are robust stone cutting machines for wet cutting. Provided with diamond dividing discs they are used for cutting bricks, Ytong, concrete, lime sand brick, clinker and similar material. Robust, powerful and longliving due to their very stable construction. engine: 7,5 kW 400 V 50 HZ water pump: TB 16 0.07 kW 400 V 50 HZ dividing disc: Ø 900 mm Bo 60 mm cut depth: max. 370 mm cutting length: 600 mm height adjustment: with tension spring and seesaw overall length: 2050 mm overall width: 900 mm overall height: 1750 mm weight: 295 kg
The machine Rasant 900 is a robust stone cutting machines for wet cutting. Provided with diamond dividing discs they are used for cutting bricks, Ytong, concrete, lime sand brick, clinker and similar material engine: 7,5 kW 400 50 Hz water pump: TB 16 0,07 kW 400 V 50 HZ dividing disc: Ø 900 mm Bo 60 mm cut depth: max. 360 mm cutting length: 500 mm height adjustment: with tension spring and seesaw overall length: 1650 mm overall width: 650 mm overall height: 1650 mm weight: 230 kg
The center hole is 30 mm up to a disc diameter of 450 mm, and 60 mm above it
Disc diameter: 230 mm Bore: 22.2 mm Available in three different degrees of hardness
Up to a disc diameter of 500 mm, the central hole is 30 mm, above it is 60 mm

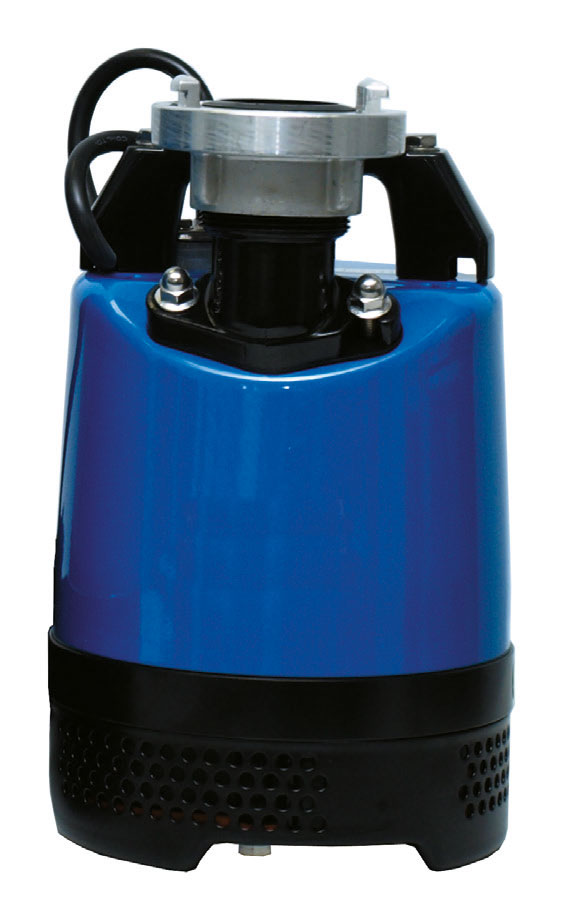

Technical specifications: with connection coupling Storz C The pump is safe to run dry (semi-submerged or in slurping mode) Power: 0.48 kW, 2.9 A, 230V 50Hz Delivery rate max. 225 l / min Sieve hole diameter: Ø 6 mm Pressure connection diameter: 2 "AG Scope of delivery: connection cable 10m with plug Type of medium: rainwater, sand-containing water, groundwater Delivery height max: 11 m Weight: 10.4 kg Immersion depth: 10 m Min. Water height: 50 mm Accessories Art. 55 LBE 020: Storz C 52 synthetic fiber hose, length 20 m
for the discharge of pumped wastewater. Medium must be able to run out freely - not suitable for operation at high pressure
