Rotating high-frequency converter Our rotating frequency converters B100 - B300 are fitted... more
Product information "Frequenzumformer für Rüttler - 230 V"

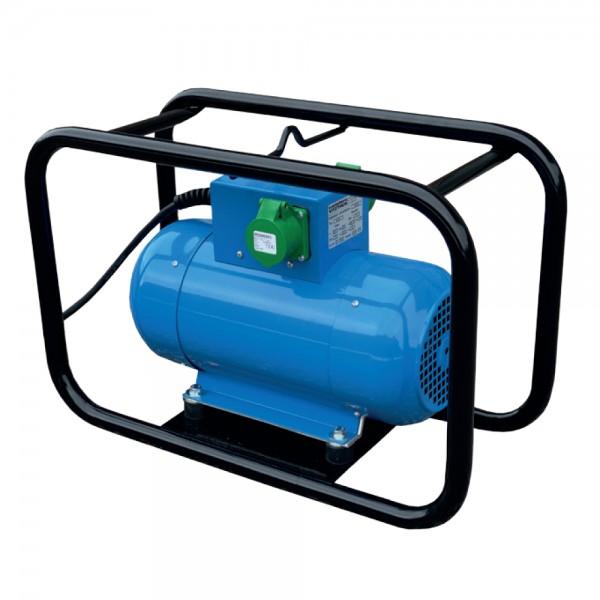

Rotating high-frequency converter

Our rotating frequency converters B100 - B300 are fitted with permanent-magnets. This makes them powerful and maintenance free.
They are manufactured partly in aluminium which makes them light and small.

All vibrators with a voltage of 42V to 50V / 200Hz can be connected. Please select the converter to the maximum current your vibrator is using under full load.

Technical Data:

  • Output Voltage: 48 V without load
  • Output Voltage: 42 V full load
  • Frequency: 200 Hz

Type Performance KVA Input-
Voltage

Output Voltage

Sockets
CEE
Connection Concrete vibrator Weight
Kg
B 100 1,0 230V/50Hz 13,7 A 1 1x50 18
B 150 1,5 230V/50Hz 21 A 2 2x50 oder 1x60 24
B 250 2,5 230V/50Hz 35 A 2 2x60 32
B 300 3,0 400V/50Hz 42 A 2 2x60 32
Show more Variants

Anschluss für Innenrütler: 1 x 50
Order number Picture Variant Delivery
59R010
Frequenzumformer für Rüttler - 230 V
Anschluss für Innenrütler: 1 x 50
Voltage: 13,7 A
Typ: B 100

Available and in stock

Available and in stock

Anschluss für Innenrütler: 2 x 50 oder 1 x 60
Order number Picture Variant Delivery
59R015
Frequenzumformer für Rüttler - 230 V
Anschluss für Innenrütler: 2 x 50 oder 1 x 60
Voltage: 21,0 A
Typ: B 150

Available and in stock

Available and in stock

Eingangsspannung: 230 V
Anschluss für Innenrütler: 1 x 50
Ausführung: 1,0 KW
Typ: B 100
