Arbeitsfugenband - Silofugenband
AS-Fugenbänder aus Weich - PVC bestechen durch Ihre Vielzahl an guten Eigenschaften und durch hohe Wirtschaftlichkeit. Die spezielle Werkstoff-Mischung macht das Fugenband einsatzfähig im Sommer und Winter (Härte). AS-Fugenbänder eignen sich für alle normalen Beanspruchungen und decken somit den größten Teil der Beanspruchungen bei Bauwerken ab.
Arbeitsfugenband bzw. Silofugenband einfach von Hand in den noch weichen Beton eindrücken.
Log in to see more information

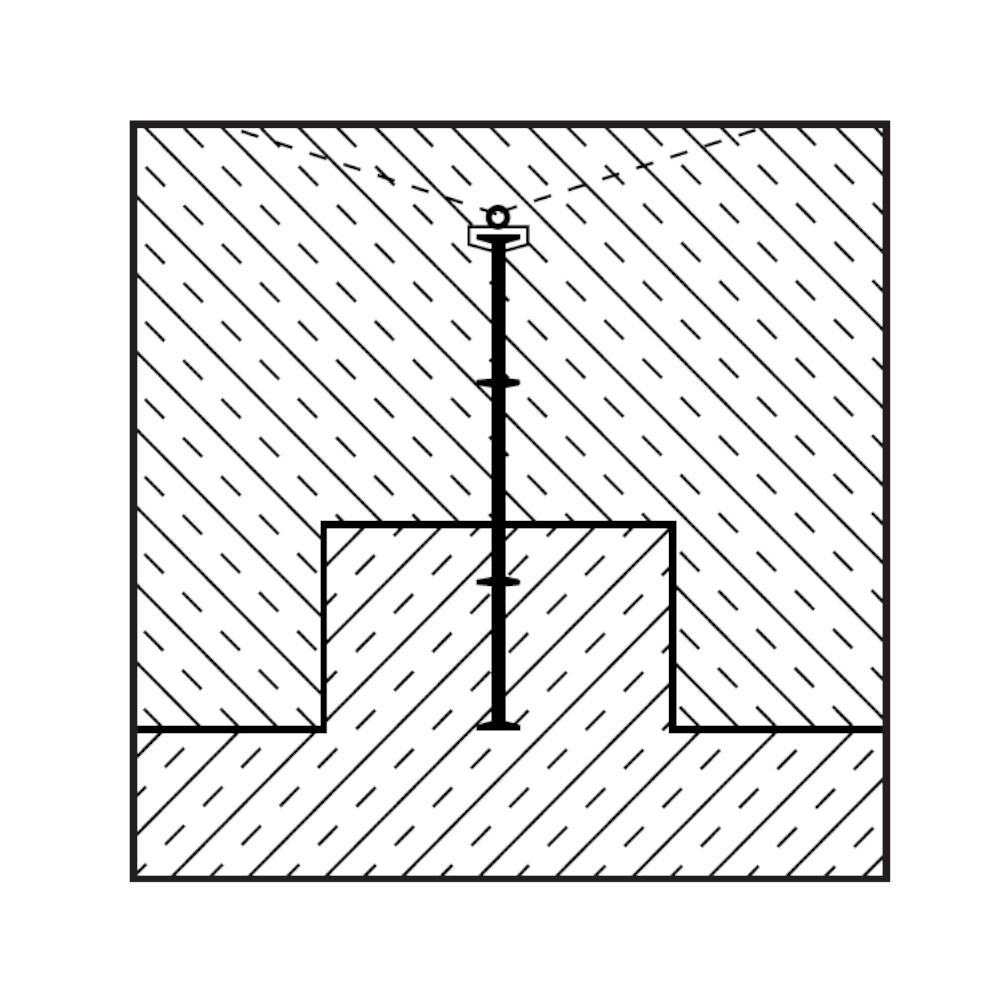

Sealing joint tape
Internal water bars made of soft PVC bribe through many good features and high profitability.
The water bars are resistant against acid, alkali and putrefaction.
Variety overview:
Typ
a
b
c
f
61A150
150
45
3,0
10
61A200
200
70
3,0
15
61A250
240
80
3,5
15
61A300
320
110
4,5
15
Bitumen-resistant variety on request!
Log in to see more information

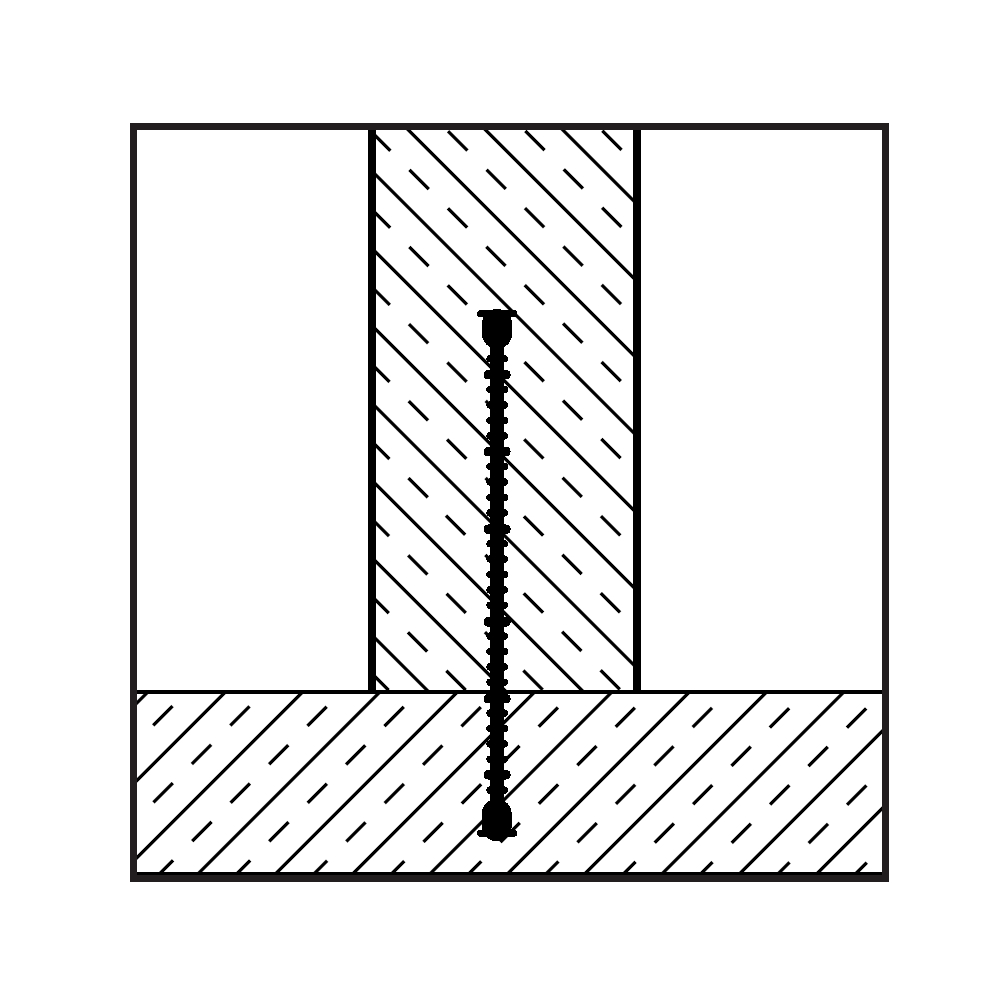

Joint tape with internal round steel
Joint tape with internal round steel stirrups.Prevents the belt from bending during the concreting process.
Material: soft PVC; other materials on request!
Typ
a (width)
b
c
f
61AS200
200 mm
70 mm
3,5 mm
15 mm
61AS250
240 mm
80 mm
3,5 mm
15 mm
61AS320
320 mm
100 mm
4,0 mm
15 mm
Log in to see more information

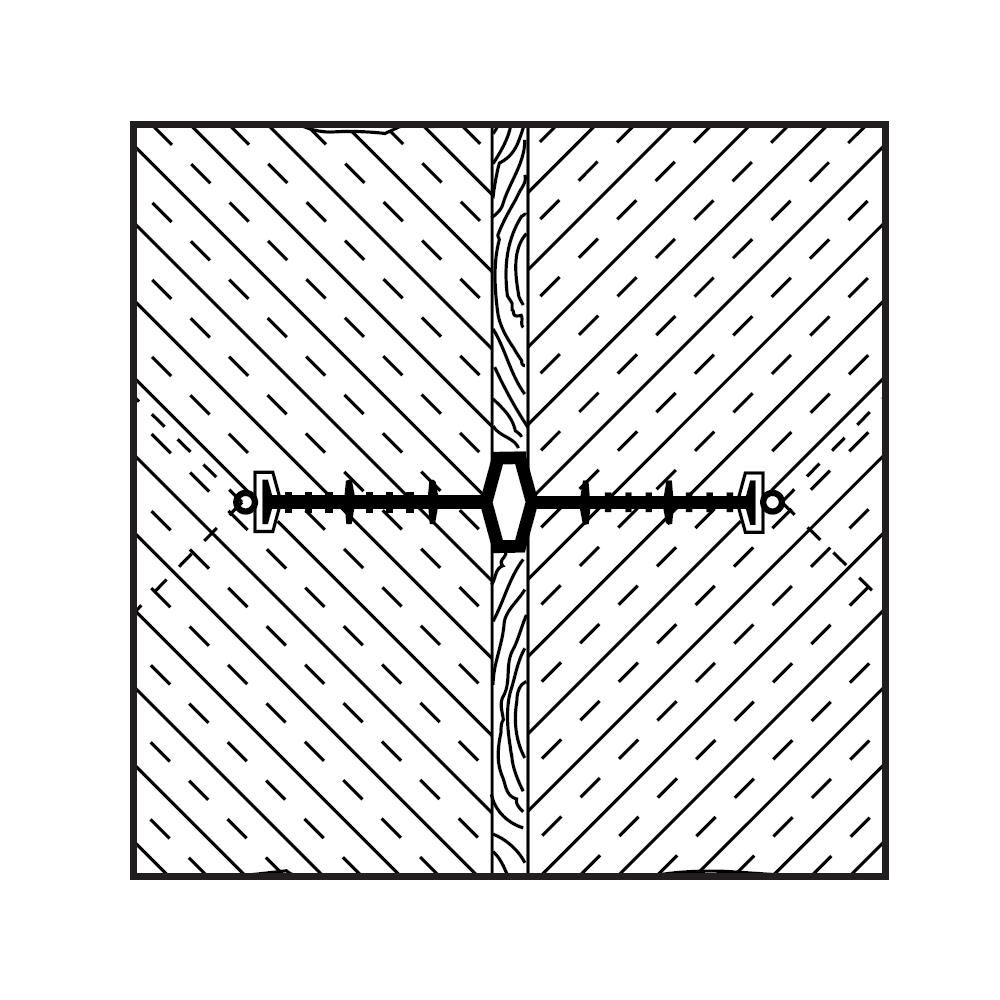

Expansion joint internal
Vitzthum-water bars made of soft PVC bribe through many good features and high profitability. The water bars are resistant against acid, alkali and putrefaction.
Bitumen-resistant variety on request!
Variety overview:
Typ
a
b
c
f
k
61D150
150
70
3,0
10
10
61D200
200
90
3,5
15
10
61D250
240
90
4,0
15
20
61D300
320
110
5,0
15
20
Log in to see more information

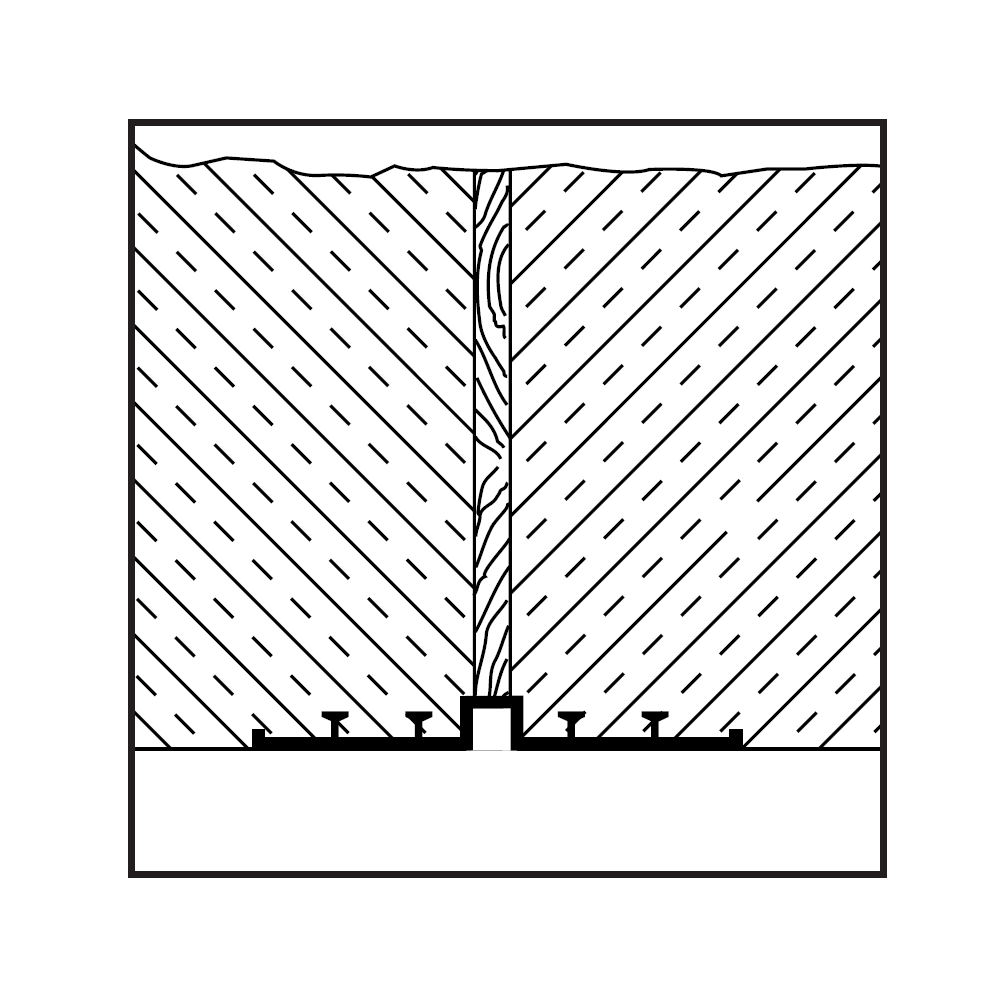

Expansion joint tape outside
Vitzthum-water bars made of soft PVC bribe through many good features and high profitability. The water bars are resistant against acid, alkali and putrefaction.
Variety overview:
Typ
a (Width)
b
c
f
61E250
240 mm
90 mm
4,0 mm
25 mm
61E320
320 mm
110 mm
4,0 mm
25 mm
Bitumen-resistant variety on request!
Log in to see more information

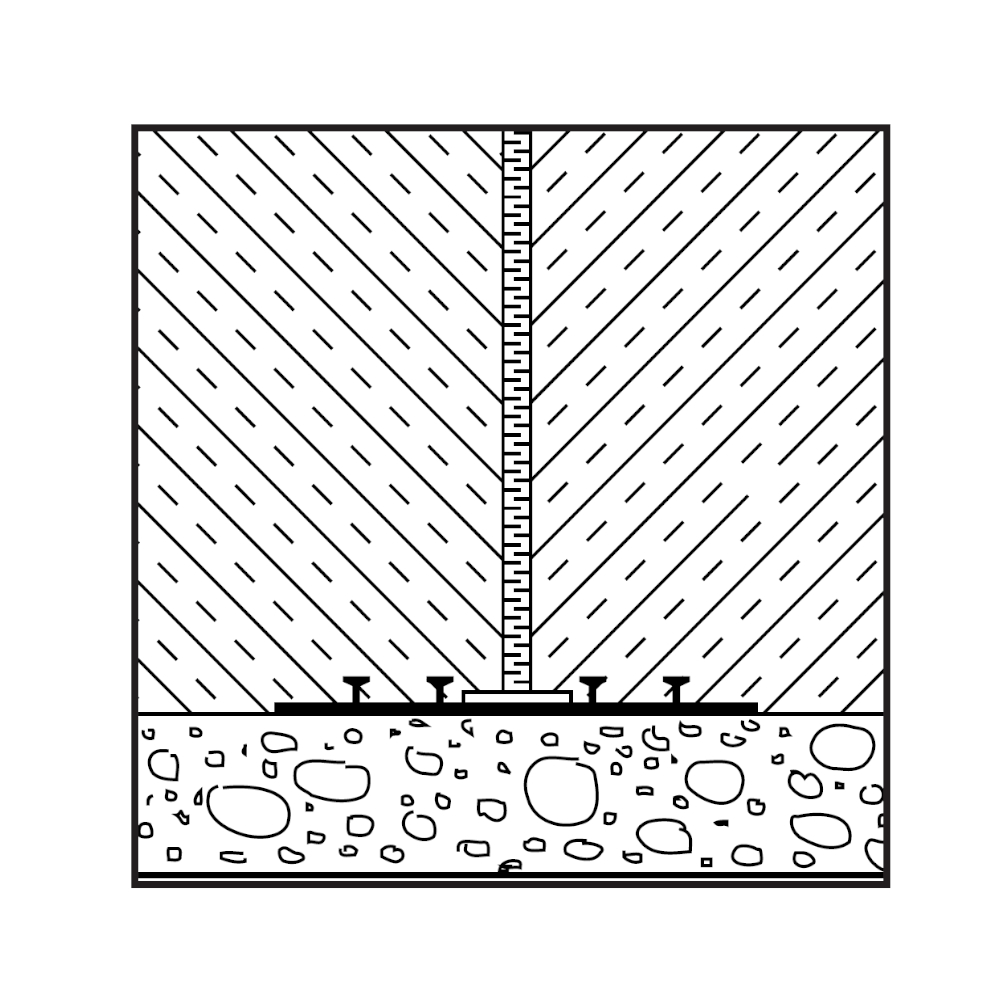

Arbeitsfugenband außenliegend
Vitzthum-water bars made of soft PVC bribe through many good features and high profitability.
The water bars are resistant against acid, alkali and putrefaction.
Variety overview:
Typ
a (width)
b
c
f
61F150
150 mm
-
-
-
61F200
200 mm
80 mm
3,5 mm
20 mm
61F250
240 mm
90 mm
4,0 mm
25 mm
61A200
320 mm
110 mm
4,0 mm
25 mm
Bitumen-resistant variety on request!
Log in to see more information

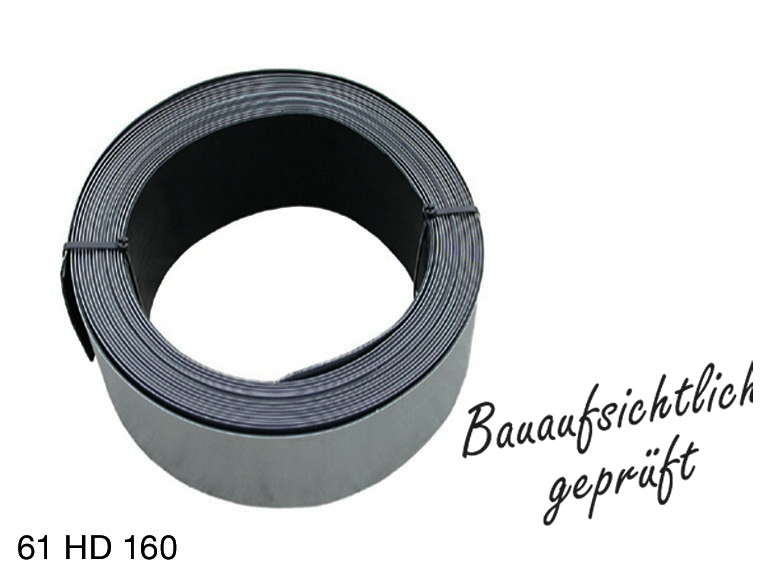

VIBA-joint sheet roll ACTIVE - 160 mm unilaterally coated with Bentonit
VIBA thick tin Active is a galvanised, unilaterally full-flatly with active Bentonitcoated sealing metal with source effect. In both forking out a 7,5 cm wide high sticking push connection is raised.
incl. 20 connection hangers, 4 push clips + 1,5 m of push connection (self-adhesive)
Log in to see more information

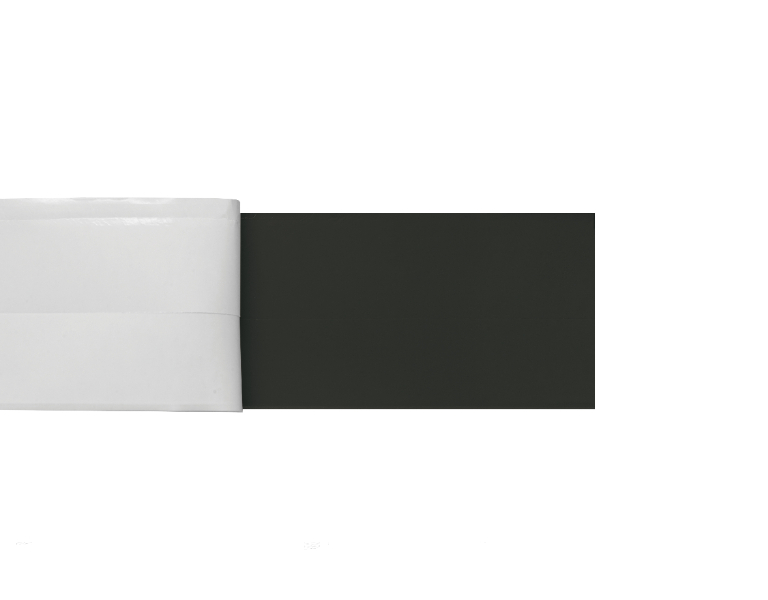

VIBA-Flex Joint sheet without feet
Joint tape for more stability light angle.The sealing plate is made of galvanised steel and has polymer bitumen coating on both sides (Adhesive coating).
Log in to see more information

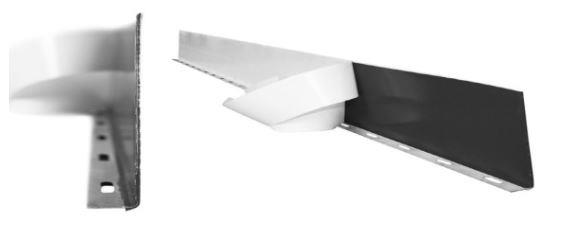

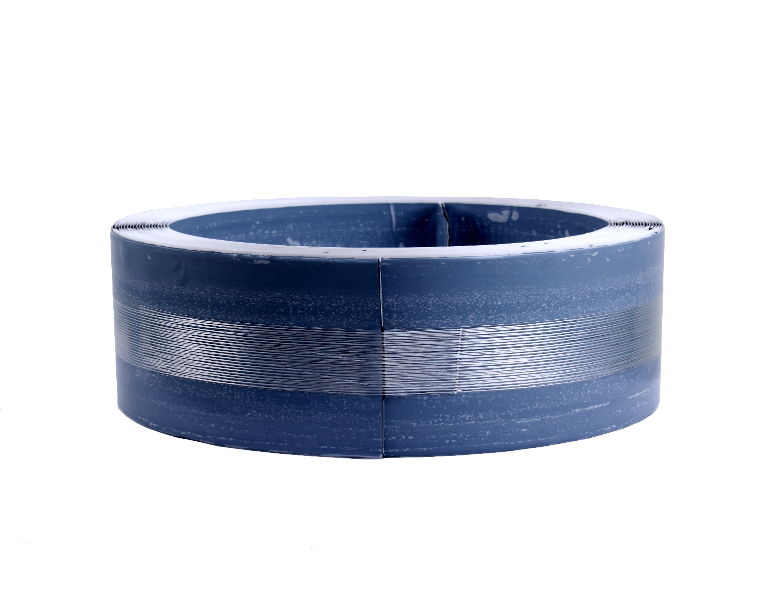

VIBA-flex joint sheet metal roll - 150 mm
The joint tape roll is made of galvanized stell with a both sided polymer-bitumen coating. The coating is protected by a paper which is lenghtwise split for easier usage.
Roll á 20 lfm
Log in to see more information
VIBA-Proofflex – Premium Steel Waterstop 150 mm with Double-Sided Bonding Coating
Double-sided, fully coated, pressure-resistant waterstop element for construction joint sealing. The pressure-sensitive fresh concrete bonding coating with an enlarged surface area creates an exceptionally strong bond with the concrete and remains permanently active throughout the service life. A bentonite sealing strip is integrated at the joint overlap.
Applications:
VIBA-Proofflex Premium is designed for the internal sealing of construction joints (maximum joint opening up to 0.25 mm) and controlled crack joints (maximum joint opening up to 1.0 mm) in concrete structures with high resistance to water penetration against:
Ground moisture and non-pressurized water Pressurized water Areas with fluctuating water levels.
The sealing system complies with the requirements of Utilization Class A for Exposure Classes 1 and 2 in accordance with the German WU Guideline for Waterproof Concrete Structures.
Log in to see more information
VIBA-Proofflex – Premium Waterstop Strip F 150 mm with Mounting Flange
Double-sided fully coated, pressure-resistant waterstop element for construction joint sealing. The pressure-sensitive, fresh-concrete bonding coating with an enlarged surface area forms an exceptionally strong bond with the concrete and remains permanently active. A bentonite sealing strip is integrated at the overlap joint.
Applications
VIBA-Proofflex Premium is designed for the internal sealing of construction joints (maximum joint opening up to 0.25 mm) and controlled crack joints (maximum joint opening up to 1.0 mm) in reinforced concrete structures with high resistance to water penetration against:
Ground moisture and non-pressurized water Pressurized water Areas subject to alternating water levels
The sealing system complies with the requirements of Utilization Class A for Exposure Classes 1 and 2 in accordance with the German WU Guideline (Water-Impermeable Concrete Structures).
Log in to see more information

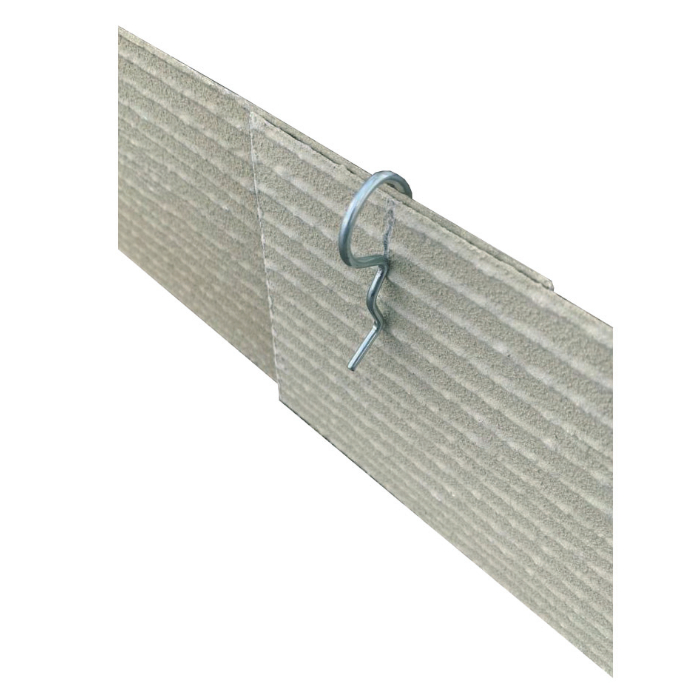

VIBA Sinterflex waterstop sheet
Our VIBA Sinterflex waterstop sheet is coated on both sides with a patented “active” special coating. This coating is non-sticky and does not require any protective film to be removed before concreting. The coating bonds with the concrete through a natural reaction with the surrounding concrete, thereby actively sealing the joint to be waterproofed. The joint is actively sintered by the special coating and therefore becomes increasingly dense over time. This process is referred to as active sintering or active mineralizing deep sealing. The unique bond between the active VIBA Sinterflex special coating and fresh concrete reliably prevents water from migrating around the VIBA Sinterflex waterstop system. For secure sealing, a concrete embedment of only 3 cm is sufficient. VIBA Sinterflex is water-reactive and therefore actively seals construction joints and designed crack joints through a natural concrete-technology process.
Water pressures up to and including 5 bar = 50 m water column can be safely sealed.
Log in to see more information

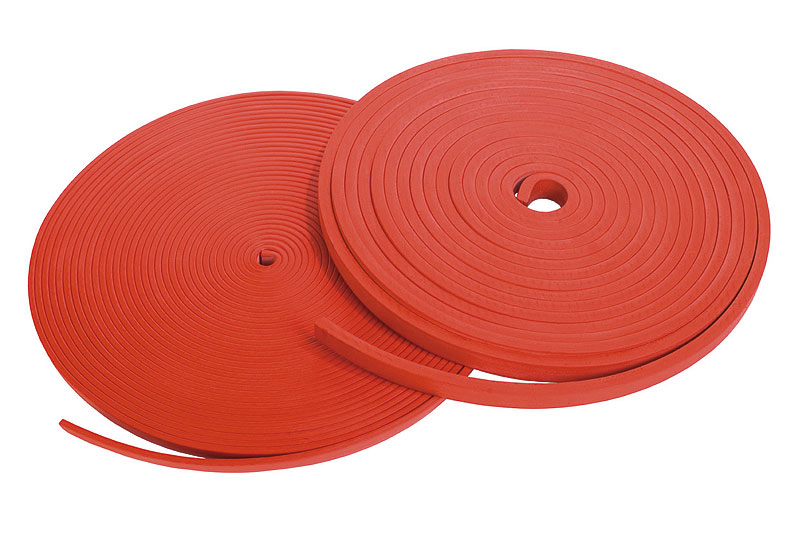

Swelling tape made of TPE (Flowstop)
TPE (thermoplastic elastomer) - swelling tape for the safe sealing of construction joints and penetrations, in concrete structures, against the ingress of water. Because of the swelling and the swelling pressure generated during the swelling process no water can penetrate
Application:
The sealing of construction and connection joints in / on concrete structures in the foundation and groundwater area are typical applications for the FLOWSTOP high pressure swelling tape. As well as all types of penetrations of the building structure in areas that are to be permanently sealed against water. The FLOWSTOP high-pressure swelling tapes are easy, quick and inexpensive to install and are reliable and permanently sealed, even with high water pressure! In comparison to other sealing products no additional upstand is necessary.
Log in to see more information

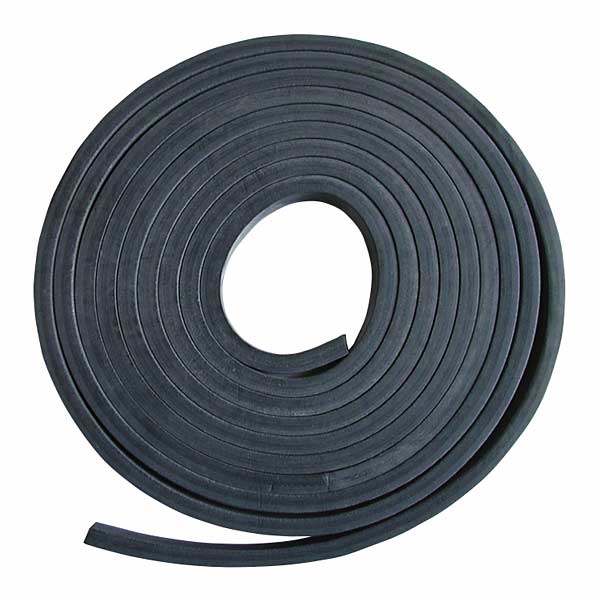

Bentonit Quellband "Long Time" folienbeschichtet
Das Bentonit Quellband "Long Time" folienbeschichtet. Abmessung 20 x 5 mm, schwarz, auf 5 Bar geprüft.
Durch das Aufquellen und den beim Quellvorgang entstehenden Quelldruck wird ein Eindringen des Wassers verhindert. Das Bentonitquellband ist eine in Wasser quellfähige Dichtung. Es besteht aus fein vermahlenem, hochquellfähigem Tonmineral (Natrium-Bentonit), eingebettet, als Bindemittel, in eine Matrix aus nicht vulkanisiertem Kautschuk. Zur besseren Witterungsbeständigkeit ist es mit einer sich im Beton selbstauflösenden Folie umhüllt.
Achtung! Quellband nicht direkt nageln, nicht kleben - Befestigung nur mit Gitter! Verarbeitung siehe Datenblatt!
Log in to see more information
Quellbandgitter speziell für "Long Time" Quellband
Quellbandgitter LONG TIME mit beidseitigem Überstand.
Log in to see more information
Expansion tape SK
EXPANSION TAPE SK is a self-adhesive bentonite expansion tape which expands in contact with water and prevents water intrusion.In contact with water the tapes swell and seal the joint permanently.
Test certificates:
Tested by the university tBU Greven up to 50 m water column
Approved for the usage in contact with drinking waterApplication:
Waterproofed integration of pipings into concrete buildings.
Sealing of reinforcement connections.
Sealing of floor drains.
Installation:
Remove silicone paper and stick two rings of EXPANSION TAPE SK around the pipe, which has to be sealed.
Butt against the joint ends, no overlaps.
The surface of the pipes has to be hard.
EXPANSION TAPE SK adheres to metal, plastic, PVC and stone.
If necessary secure EXPANSION TAPE SK by using a binding wire.
Log in to see more information

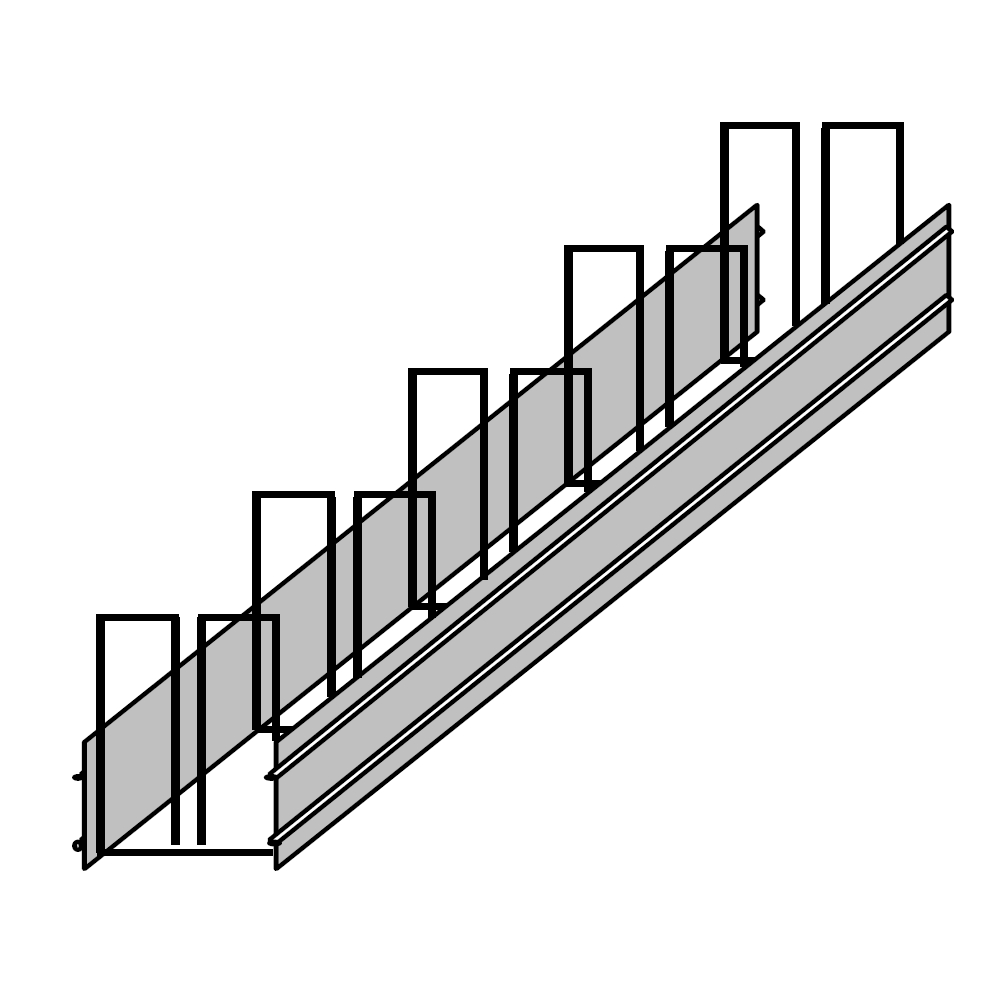

Upturn beam element - with water bar holder bottom plate / wall
Upturn beam element made of wave-profiled perforated metal plate in order to set on edge in the area of the bottom plate. Including a integrated water bar or joint plate holder.Element length: 2500 mm (standard)
Log in to see more information

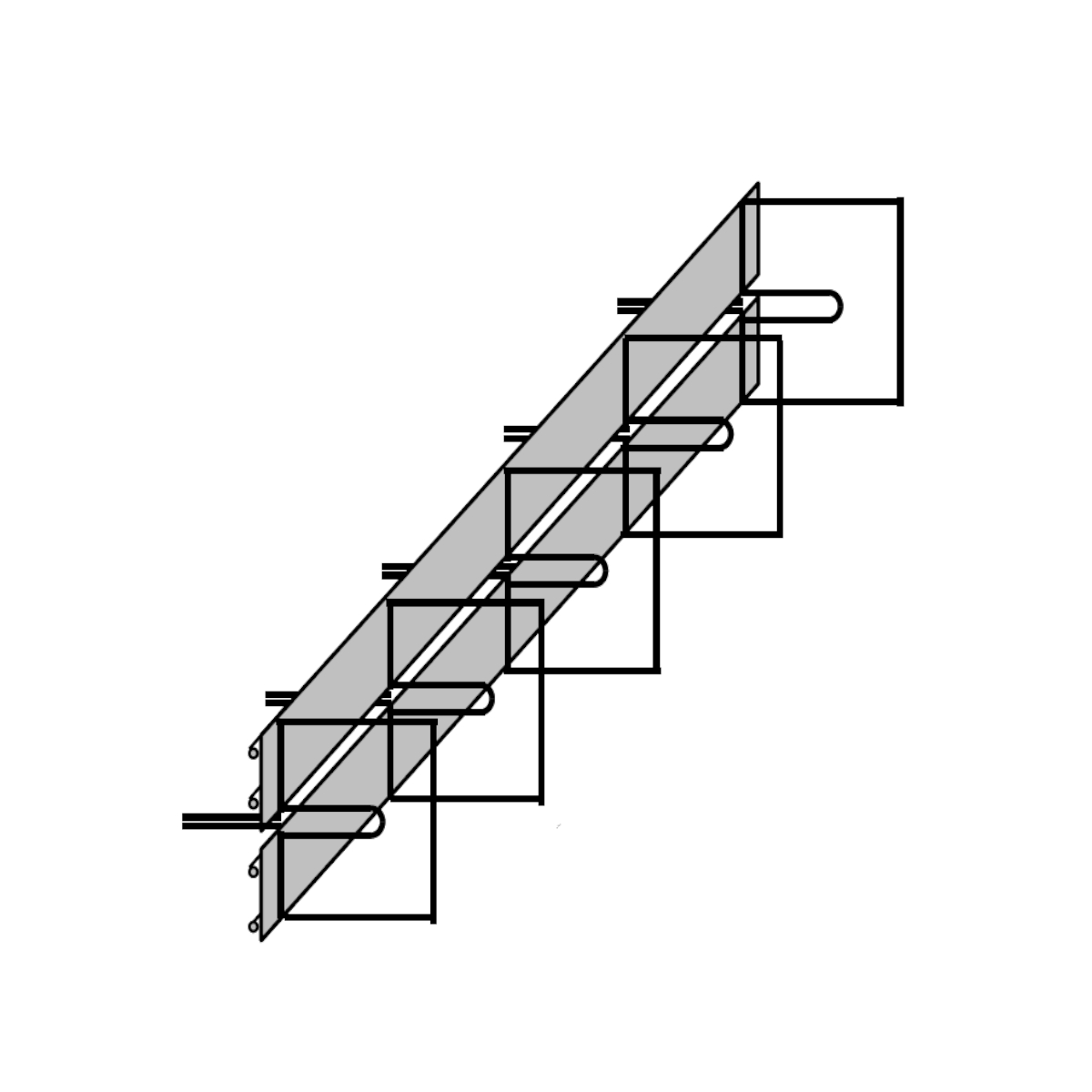

Abschalelement mit Fugenbandhalter Typ E 93 für Boden oder Wand
Stop end panel made of a wave-profiled perforated metal plate in order to set a stop end in the wall or in the bottom plate.
Log in to see more information

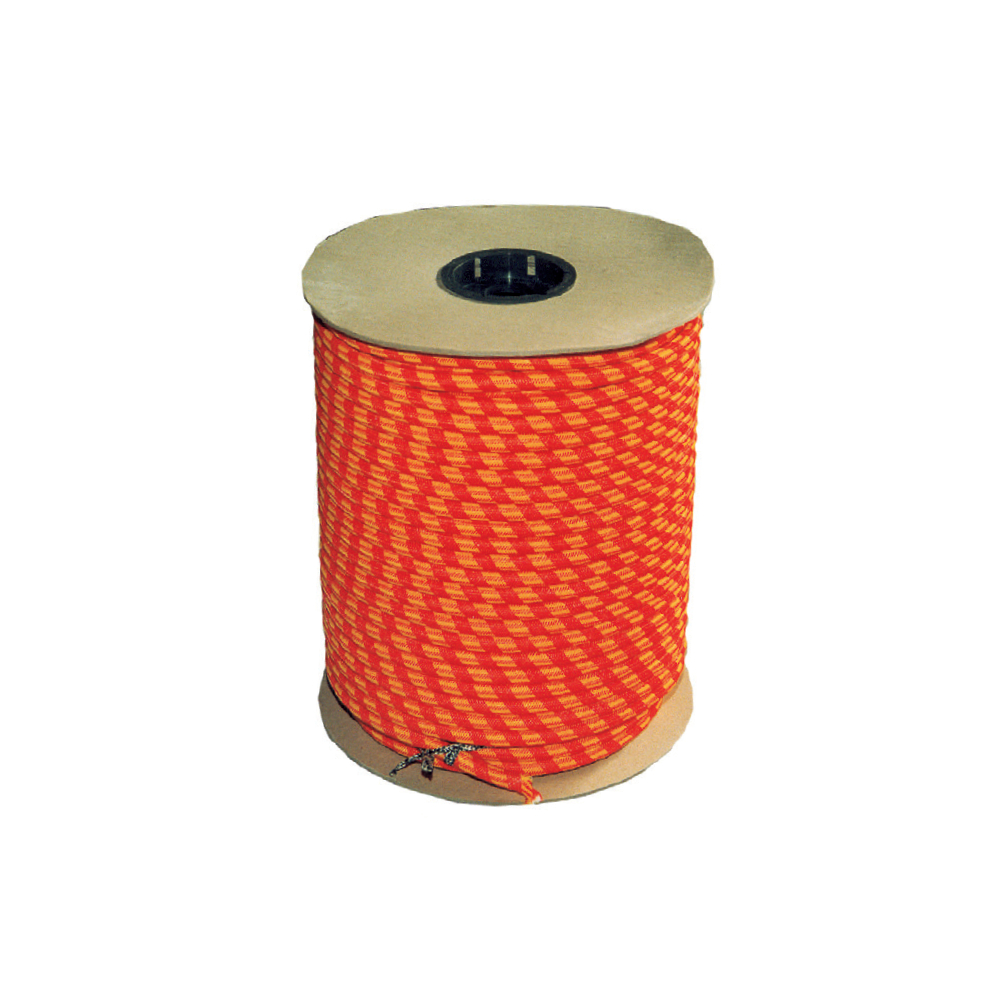

Compression hose - circular Ø 5/10 mm
Compression hose
circular, dim. 5/10 mmwith fabric double-overcoat
Log in to see more information
Injection foam PROTECT
Injektions Schaumharz PROTECT - Niedrigviskoser Schaum auf Polyurethanbasis. Stoppt sofort den Wasserzufluss, schnelles aufschäumen mit hoher Volumenzunahme, erfüllt UBA Leitlinie für Kontakt mit Trinkwasser.
Reaktionszeit bei Wasserkontakt ca. 50 sec. Volumenvergrößerung bis 3500% bei Wasserkontakt
Verpackung: 1 Liter Kombidose = 875 mL Komponente A und 125 mL Komponente B 6 Dosen / Karton
Versandgewicht 1,35 kg
Log in to see more information
Injection resin - PROTECT
Injection resin - PROTECT Expansive polyurethane resin for crack and hose injection in wet areas.
Consumption hose compression: ca. 1,5L per 10 m
Approved for drinking water applications, low viscosity and permanently elastically, long processing time ca. 100 min by 20°C
Packaging: 1 liter composite can = 750 mL component A and 250 mL component B
Shipping weight 1,3 kg
Log in to see more information

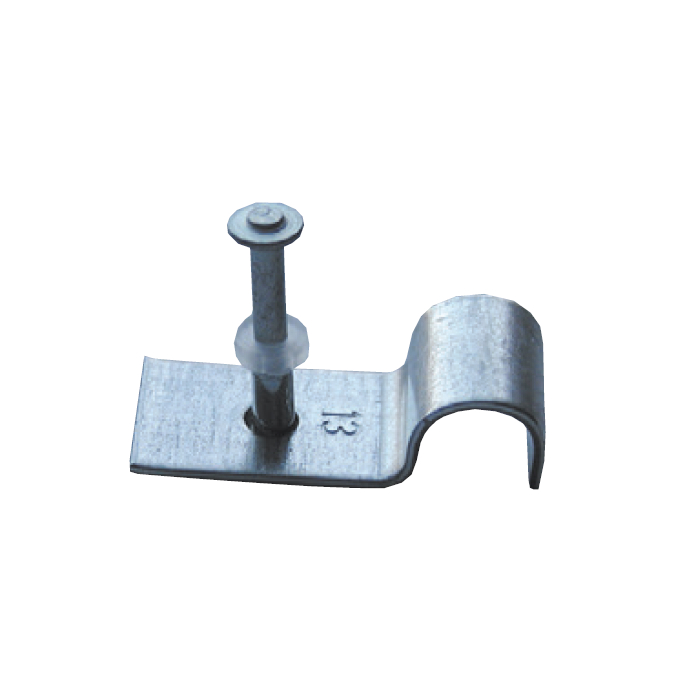

Metal clamp with nail
Metal clamp with pre-mounted nail for all salable bolt guns
For shooting and nailing Mounting all 15 cm
Log in to see more information

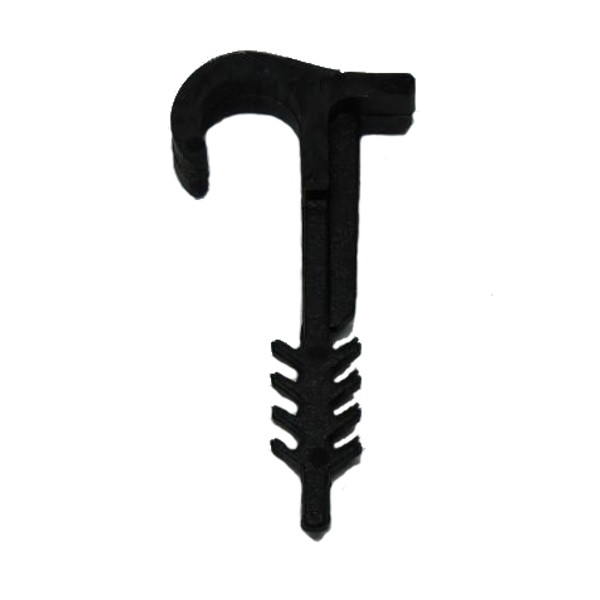

Plastic fixation clip type B
Plastic fixation clip type A
to impress into fresh concrete or in boreholes Ø 8 mm,
Mountig al 15 cm
