Gas and water tight sealing for drill holes, tubes, etc. Rubber insert made of EPDM, press plates made of stainless steel V2A completly gastight and watertight pressing water 2.5 bar (30 m WS) radon tight KTW/W270 drinking water - quality
Super segment ring technology for cables and pipes Open the pipe seal. Cut into the selected segment rings at the predetermined separation point with a sharp knife and tear off 5 segment rings with a diameter of 25 - 63 mm segment ring Pipe area Plug Ø 25 - 28 mm Nr. 1 Ø 32 mm Nr. 2 Ø 40 mm Nr. 3 Ø 50 mm Nr. 4 Ø 63 mm
Annular seal - cable 5-fold Ø 100 mm MR 8-35 mm Tested up to 10 m WS (1 bar) Hinged annular seal for core drilling / wall sleeves Ø 100 mm Segment ring technology for 1 cable / pipe Ø 22 - 44 mm as well as 4 cables Ø 7-12 mm completely gastight and watertight Sealing width 40 mm, pressure-tight up to 1 bar U-profile and screws made of stainless steel V2A EPDM rubber insert integrated blind plug We expressly point out that if there are deviations from the information in the assembly instructions and if our products are used improperly, no guarantee is given for any consequential damage.
Core drilling Ø 150 mm Weight approx. 1.2 kg further dimensions on request
Annular seal Basic 1 made of stainless steelStainless V2A Seal width 40 mm completely gastight and watertight built-in torque control EPDM rubber insert To split the press seal Basic 1, loosen and remove a screw. Unfold the front and rear press segment and cut the rubber press ring approx. 10 mm to the left or right of the screw hole with a sharp knife.
Seal for pressing and non-pressing water Tested for continuous use up to 30 m water column Press plates and screws made of V2A stainless steel Sealing width 40 mm NBR rubber insert Temperature range -30 ° C to + 120 ° C
Super segment ring technology for cables and pipes 3 segment rings with diameter lettering for Ø 75, 90 and 110 mm Subsequently divisible for pipes that have already been laid for core drilling / wall sleeves Ø 150 mm Seal width 40 mm, pressure-tight up to 1 bar integrated torque control visible and tangible U-profile and screws made of stainless steel V2A EPDM rubber insert integrated blind plug

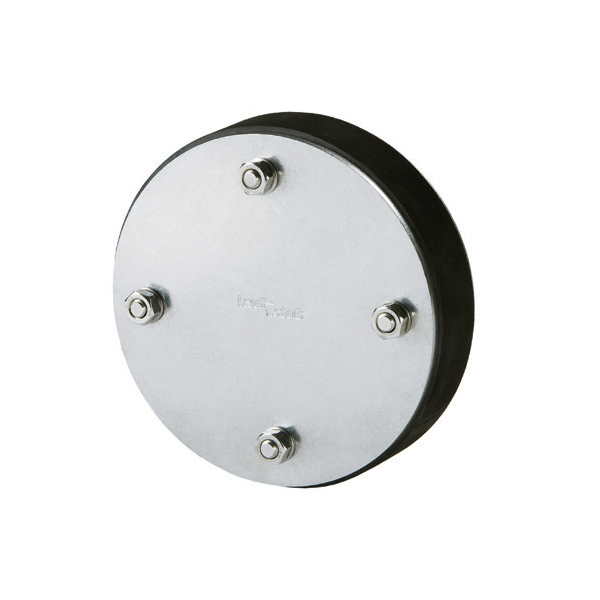

For non-pressing water 1.5 bar Rubber insert made of EPDM, press plates made of stainless steel V2A completly gastight and watertight NBR rubber insert on request

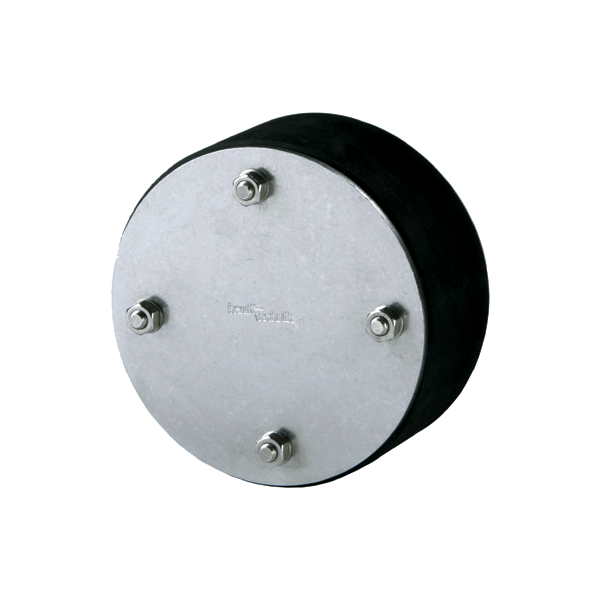

For pressing water 5 bar Rubber insert made of EPDM, press plates made of stainless steel V2Acompletly gastight and watertightNBR rubber insert on request

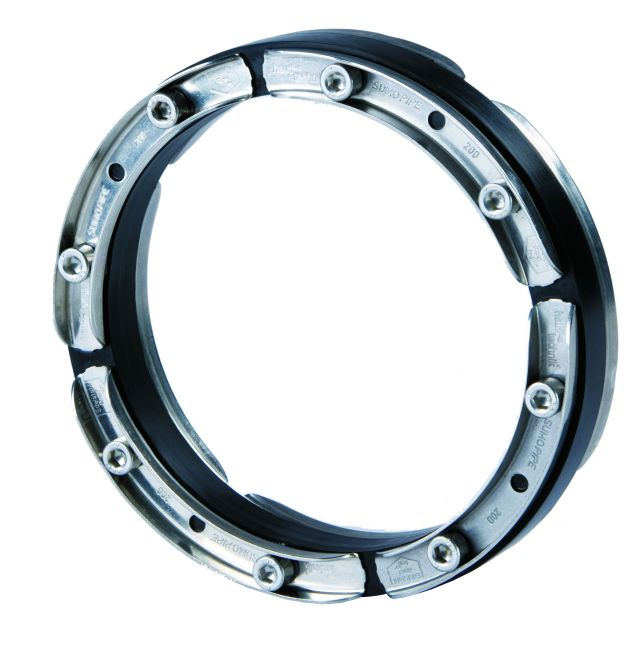

Annular seal Basic 1 made of stainless steel, V2A (material no.1.4301) Seal width 20 mm for non-pressing water up to 1.5 bar completely gastight and watertight built-in torque control EPDM rubber insert DIVIDING THE RING SEAL BASIC 1 To divide the press seal Basic 1, loosen and remove a screw. Unfold the front and rear press segment and cut the rubber press ring radially about 10 mm to the left or right of the screw hole with a sharp knife.

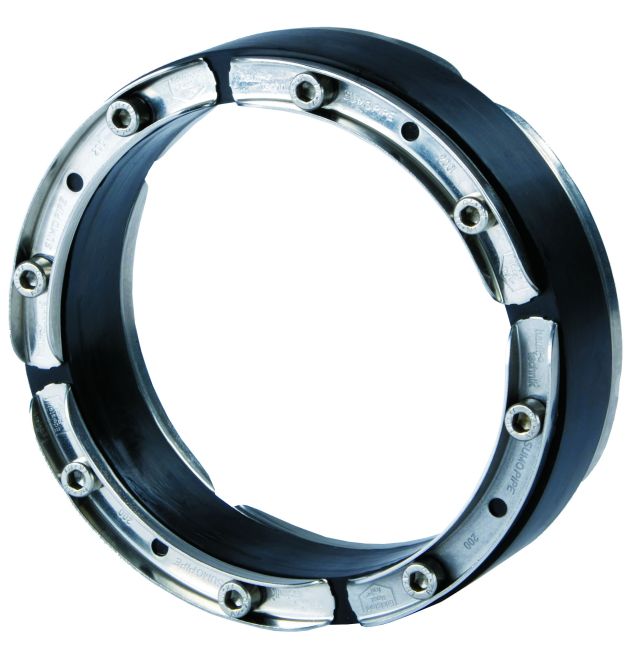

Annular seal Basic 1 made of stainless steel, V2A (material no.1.4301) Seal width 40 mm for pressing water up to 2.5 bar completley gastight and watertight built-in torque control EPDM rubber insert DIVIDING THE RING SEAL BASIC 1 To split the annular seal Basic 1, loosen and remove a screw. Unfold the front and rear press segment and cut the rubber press ring radially about 10 mm to the left or right of the screw hole with a sharp knife.

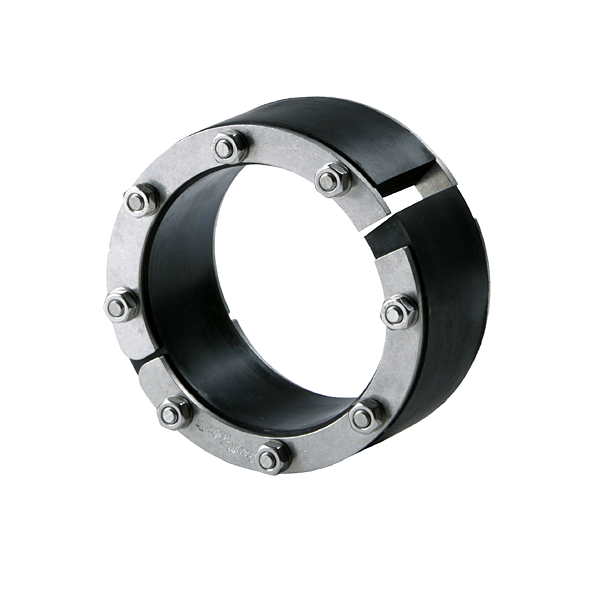

Eigenschaften: absolut gas- und wasserdicht geschlossen oder geteilt millimetergenau anpassbar leich motierbar optional mit überdeckendem Flansch (F) oder exzentrisch Mehrfachbelegung möglich Technische Daten: Dichtbreite 60 mm Edelstahl rostfrei V2A und V4A Gummiqualität in EPDM, NBR und mit KTW-Zulassung lieferbar für Kernbohrungen/Futterrohre von Ø 50 - 500 mm Rohrgröße bis Ø 400 mm Kernbohrung / Futterrohr Ø mm Medium Rohr Ø mm 50 0 - 26 60 0 - 36 70 0 - 40 80 0 - 50 100 0 - 63 125 0 - 90 150 0 - 112 200 0 - 162 250 0 - 210 300 0 - 260 350 0 - 310 400 0 - 350 450 0 - 400 500 0 - 450

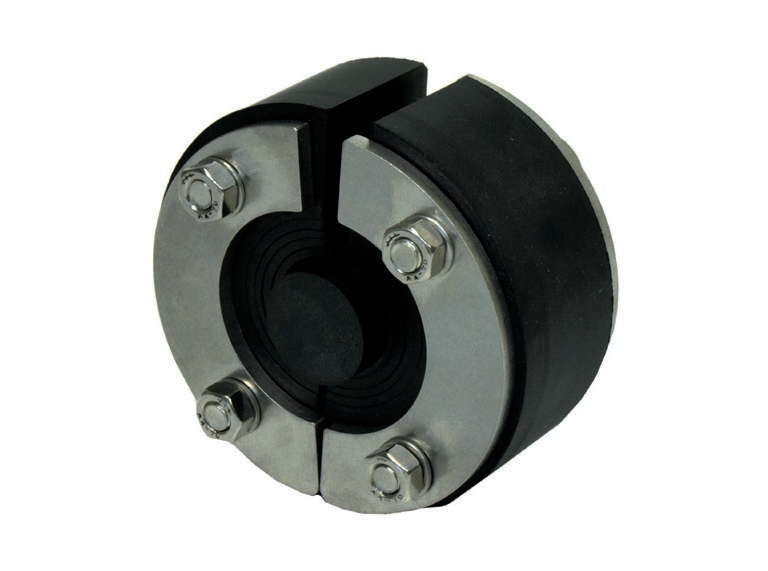

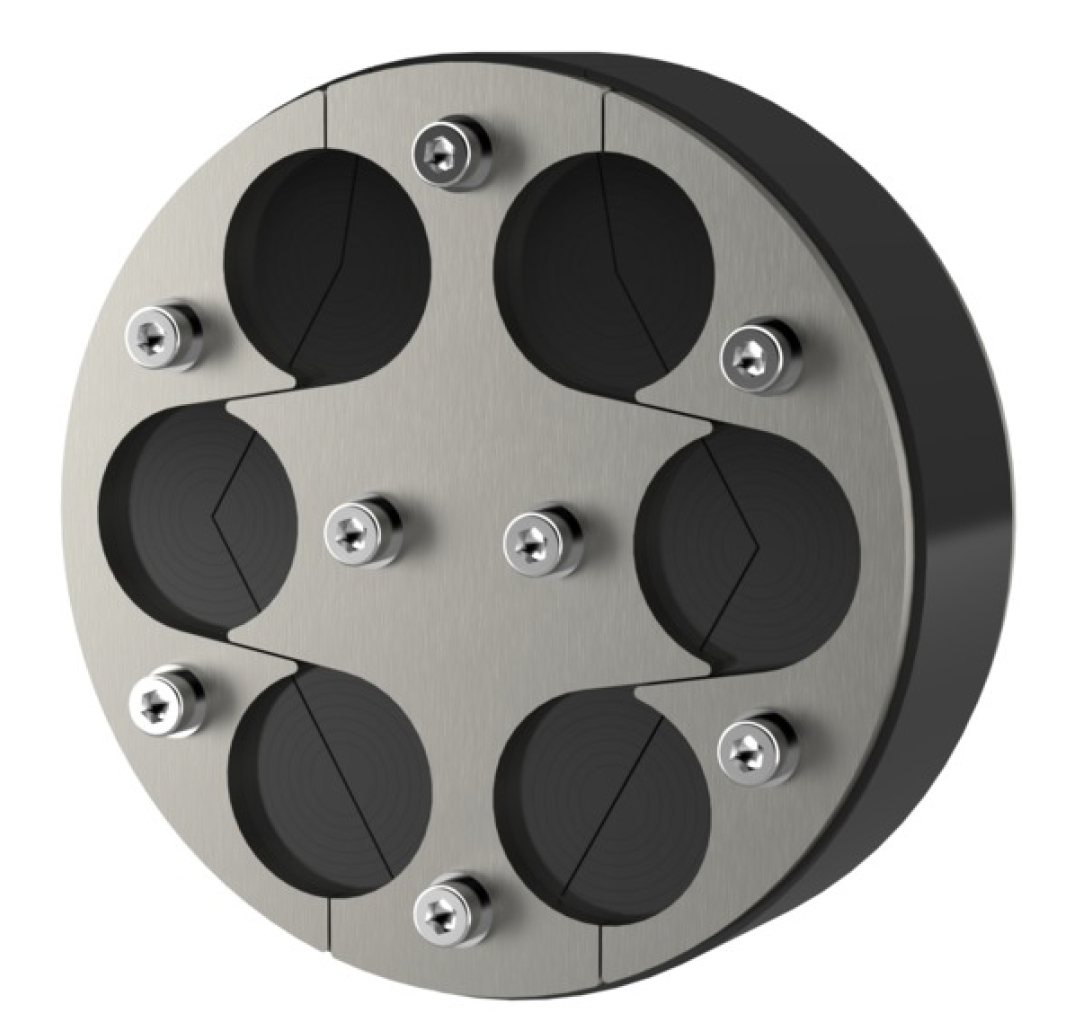

The P-Cable Basic HRD annular seal is available in various designs.The following product identification is used: SG x (number of holes) / y-z (area in which the hole can be adjusted)
The P-Cable Basic HRD annular seal is available in various designs.The following product identification is used: SG x (number of holes) / y-z (area in which the hole can be adjusted)
The P-Cable Basic HRD annular seal is available in various designs.The following product identification is used: SG x (number of holes) / y-z (area in which the hole can be adjusted)
The P-Cable Basic HRD annular seal is available in various designs.The following product identification is used: SG x (number of holes) / y-z (area in which the hole can be adjusted)
The P-Cable Basic HRD annular seal is available in various designs.The following product identification is used: SG x (number of holes) / y-z (area in mm which the hole can be adjusted)
Super segment ring technology for cables and pipes segment rings with diameter inscription for Ø 110, 125, 135 and 160 mm Subsequently divisible for pipes that have already been laid for core drilling / wall sleeves Ø 150 mm Seal width 40 mm, pressure-tight up to 1 bar integrated torque control visible and tangible U-profile and screws made of stainless steel V2A EPDM rubber insert integrated blind plugs
Super segment ring technology for cables and pipes; 12 segment rings with a diameter of 16 - 65 mm; simply tear off the segments until they fit split design, suitable for subsequent installation Seal width 40 mm, pressure-tight up to 1 bar integrated torque control visible and tangible U-profile and screws made of stainless steel V2A EPDM rubber insert integrated blind plug
Annular seal - 4-fold cable Ø 100 mm MR Ø 6-40 mm Tested up to 10 m WS (1 bar) Hinged Annular seal for core drilling / wall sleeves Ø 100 mm Segment ring technology for 1 cable / tube Ø 25, 32 or 40 mm as well as 3 cables Ø 6-18 mm completly gastight and watertight Sealing width 40 mm, pressure-tight up to 1 bar profile and screws made of stainless steel V2A EPDM rubber insert integrated blind plug We expressly point out that if there are deviations from the information in the assembly instructions and if our products are used improperly, no guarantee is given for any consequential damage. MR = carrier pipe. Technical changes reserved.
