With internal thread for Ø 15 mm Dywidag tension rod Borehole Ø 22 mm borehole depth 95 mm Permissible load capacity min. 17.0 kN with a minimum concrete strength of 15N / mm²
The knock-in dowels are pre-expanded with this setting tool. Then the anchor rod can be screwed in.Setting tool for knock-in dowel DW15
With internal thread for Ø 15 mm Dywidag tension rod.Perfect use for fastening slab edge formwork, consoles, scaffolding, guardrails, etc. Permissible load: 28 kN.

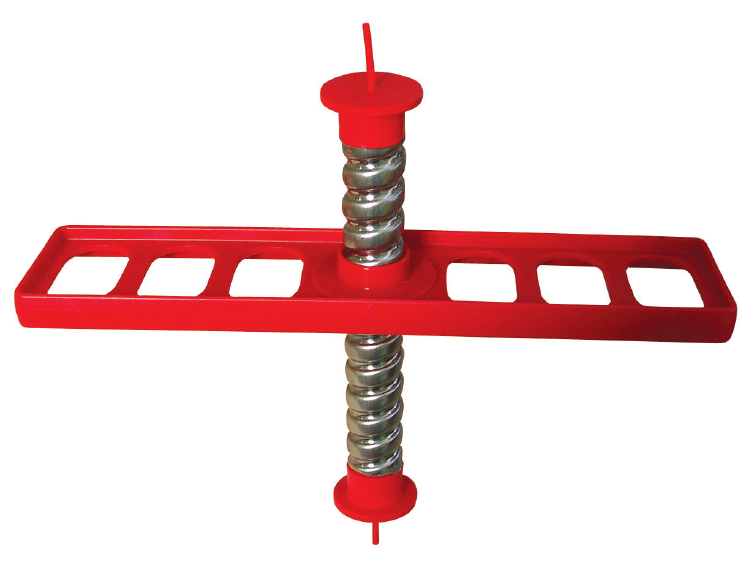

with anchor sleeve sealing + marker plugs The Rödel-Fix installation kit is a threaded plate made of plastic that is simply tied to the reinforcement with wire. Installation is easy and very quick. The threaded sleeve with marking plug ensures that the anchor point can be easily found again after concreting and trowelling. Special advantage: With the Rödel-Fix, a vertical installation of the sleeve is always guaranteed. The height of the sleeve can be adjusted after assembly. This means that the concreting height can be optimally controlled. Particularly suitable for ceilings with concrete core temperature control, as time-consuming and dangerous drilling is avoided.

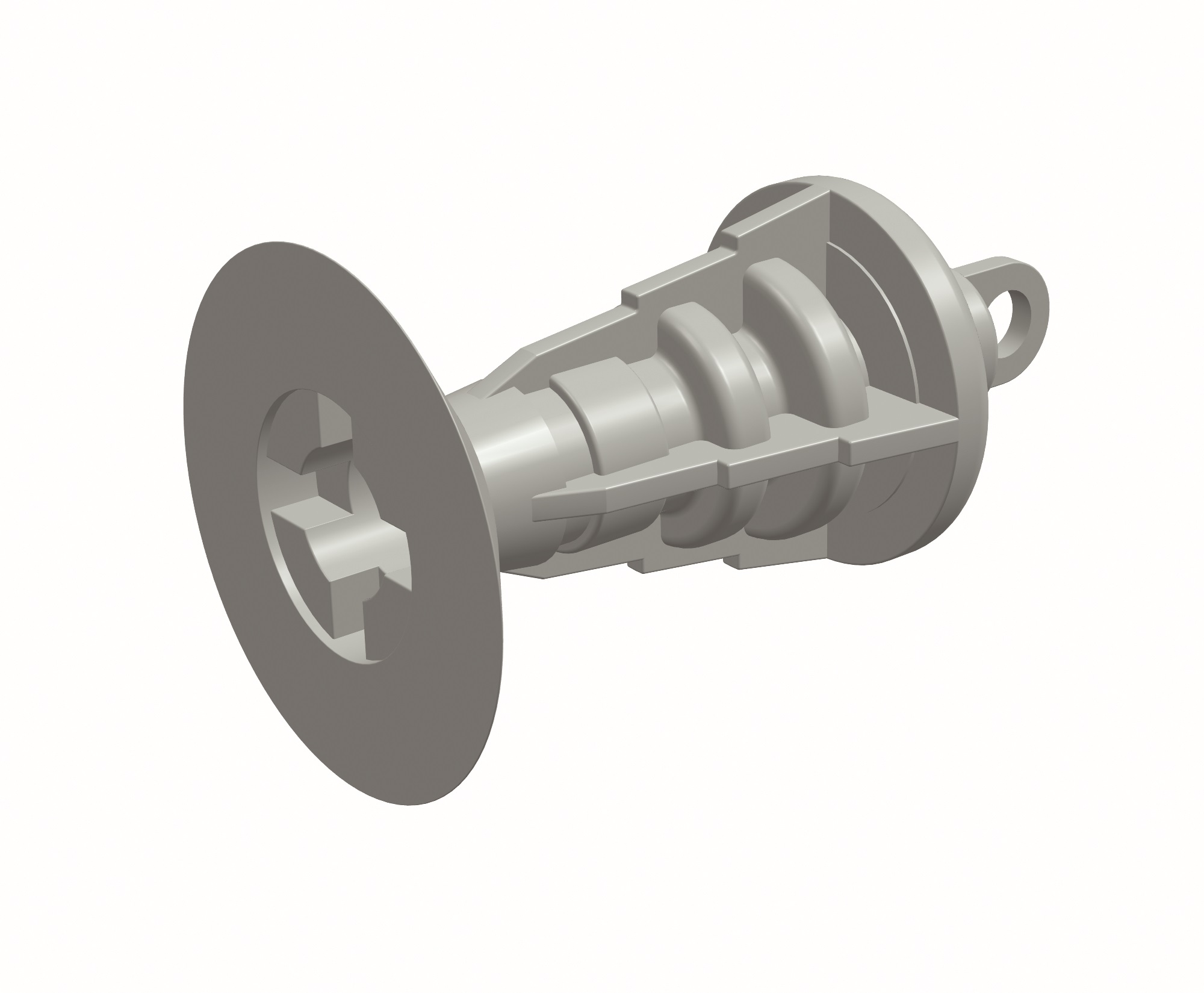

Der Montagedübel bietet eine kostengünstige Alternative zur Montage von Schrägstützen. Besonders geeignet für Doppel-Hohlwände, wegen der niedrigen Bauweise.Der Klebeteller ist durch eine Sollbruchstelle einfach zu entfernen.
Type 2 grooved With internal thread for O 15 mm Dywidag tie rod. Borehole O 22 mm, borehole depth 95 mm. Permissible load at least 17.0 kN for concrete strength 15N / mm2
Anchor sleeve UNI Ø 15 mm three-part made of PA66GF30 With internal winch for Ø 15 mm Dywidag tie rod. Ideal use for fastening slab edge formwork, consoles, scaffolding, guardrails, etc. Permissible load 28KN
