Preview: Knock-in anchor D&W Ø 15mm type 2 (grooved)

Preview: Knock-in anchor D&W Ø 15mm type 2 (grooved)

Knock-in anchor D&W Ø 15mm type 2 (grooved)

Knock-in anchor D&W Ø 15mm type 2 (grooved)

Available and in stock

Order number: 65CJT

Type 2 grooved With internal thread for O 15 mm Dywidag tie rod. Borehole O 22 mm,... more

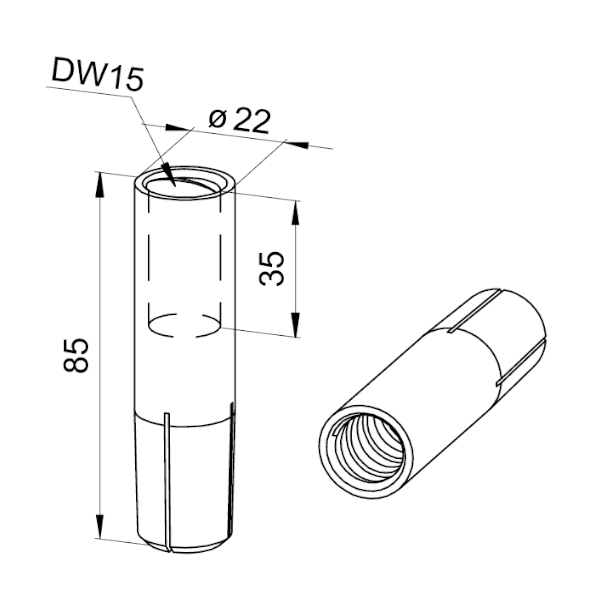

Product information "Knock-in anchor D&W Ø 15mm type 2 (grooved)"

Type 2 grooved

With internal thread for O 15 mm Dywidag tie rod.

Borehole O 22 mm, borehole depth 95 mm.

Permissible load at least 17.0 kN for concrete strength 15N / mm2

Verfügbare Downloads:

DBL_65CJT_Schlagduebel-2
