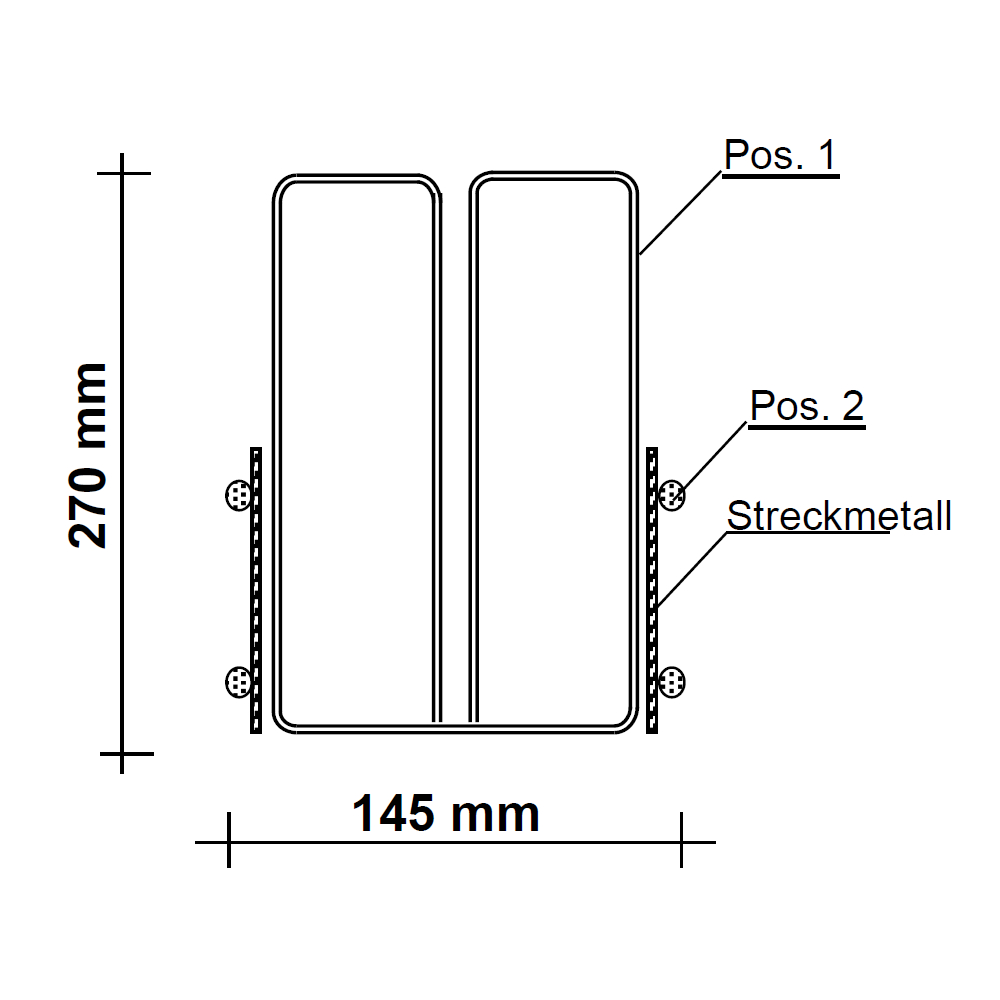

Upturn beam element - with water bar holder bottom plate / wall

Stop end panel made of a wave-profiled perforated metal plate in order to set a stop end in the wall or in the bottom plate.

Vitzthum-water bars made of soft PVC bribe through many good  features and high profitability. The water bars are resistant against acid, alkali and putrefaction. Variety overview: Typ a (width) b c f 61F150 150 mm - - - 61F200 200 mm 80 mm 3,5 mm 20 mm 61F250 240 mm 90 mm 4,0 mm 25 mm 61A200 320 mm 110 mm 4,0 mm 25 mm                   Bitumen-resistant variety on request!

One-piece formwork spacer tube with two sealing plugs, ensuring the specified wall thickness reliably. Spacer tube / cone system tested for watertightness up to 5 bar Fire resistance tested in accordance with EN 1363-1 Complies with the requirements of the W1 guideline

Version: galvanized.Suitable for anchor rods Ø 15 and 20 mm.

Shuttering element for joint seal sheet (VIBAFlex, VIBA Sinterflex, etc.), suitable for construction joints in walls in accordance with DIN EN 1992-1-1/NA. The sealing is made by the waterstop seal sheet. The formwork consists of a stable, fine-meshed expanded metal, which, in the keyed version, is profiled in accordance with DIN EN 1992-1-1/NA. The elements feature a slot for accommodating the waterstop sheet to be installed on site.

Nagelflansch mit Nagel für Uni Betonhülse (Art.Nr. 65U)

Made of fibre concrete for horizontal mats- and round-bar steel reinforcement, easy execution with continuos threads. The flat surface below by horizontal shift.

Shuttering element for joint seal sheet (VIBAFlex, VIBA Sinterflex, etc.), suitable for construction joints in walls in accordance with DIN EN 1992-1-1/NA. The sealing is made by the waterstop seal sheet. The formwork consists of a stable, fine-meshed expanded metal, which, in the keyed version, is profiled in accordance with DIN EN 1992-1-1/NA. The elements feature a slot for accommodating the waterstop sheet to be installed on site.

Rebar connector VIBA made of galvanized, structured and sheet housing for perfect connection with concrete and to transfer the shear forces. Rebendable structural steel BST 550 with Austrian certificate (BST 500 on request available).   Standard - Elementlength 125 cm. Shorther lengths on request For special types just send us the filled datasheets. We would be happy to create you an exclusive offer.

Spacer for the manufacture of precast double walls, type cross base. Concrete cover from 15 to 30 mm. Very robust spacer with steel insert, available in various diameters. High dimensional accuracy and precision due to full encapsulation. Highly suitable for watertight concrete (WU) thanks to three water barriers along the neck. Other wall thicknesses available on request. Test certificate available on request.

Spacer for the manufacture of precast double walls, type cross base. Concrete cover from 15 to 30 mm. Very robust spacer with steel insert, available in various diameters. High dimensional accuracy and precision due to full encapsulation. Highly suitable for watertight concrete (WU) thanks to three water barriers along the neck. Other wall thicknesses available on request. Test certificate available on request.
