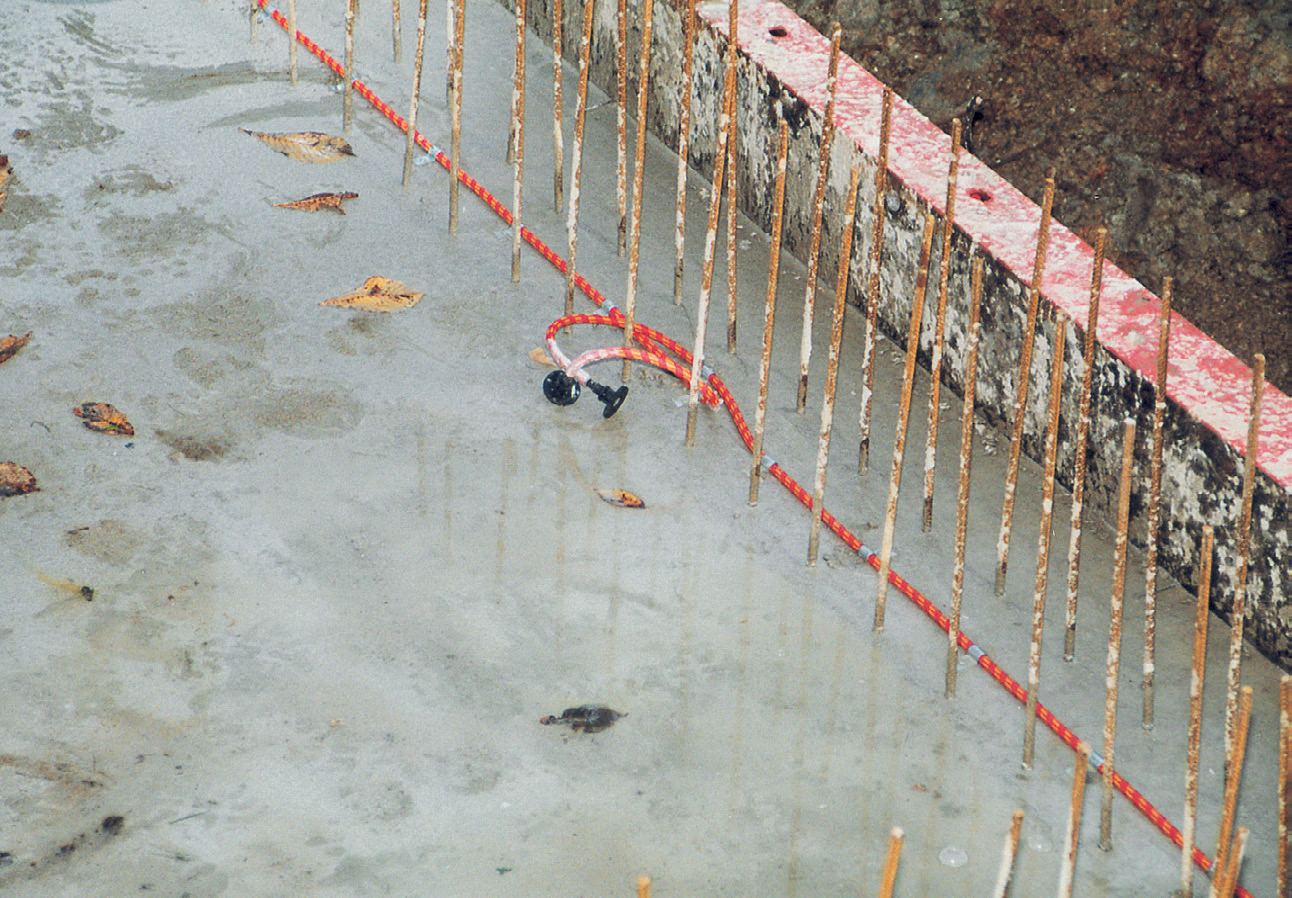

Compression hose - circular Ø 5/10 mm
Product number:
61V
Available, delivery time: 1-3 days
Price on request
Skip product gallery
Zubehör
Injection resin - PROTECT
Injection resin - PROTECT Expansive polyurethane resin for crack and hose injection in wet areas.
Consumption hose compression: ca. 1,5L per 10 m
Approved for drinking water applications, low viscosity and permanently elastically, long processing time ca. 100 min by 20°C
Packaging: 1 liter composite can = 750 mL component A and 250 mL component B
Shipping weight 1,3 kg
Log in to see more information
Metal clamp with nail
Metal clamp with pre-mounted nail for all salable bolt guns
For shooting and nailing Mounting all 15 cm
Log in to see more information
Fastening packers
Fastening packers
incl. nipple to fix the injection hose at the formwork
colour:black
10 plugs red, 10 plugs white for resin injection
Log in to see more information
Plastic fixation clip type B
Plastic fixation clip type A
to impress into fresh concrete or in boreholes Ø 8 mm,
Mountig al 15 cm
Log in to see more information
Skip product gallery
Customers also viewed
VIBA-Sinterflex Dichtblech mit Montagefuss, mineralisch beidseitig vollbeschichtet
Unser VIBA-Sinterflex Fugenblech ist beidseitig mit einer patentierten „aktiven“ Spezialbeschichtung versehen. Diese ist nicht klebrig und hat keine Schutzfolie, die vor dem Betonieren entfernt werden muss. Die Beschichtung verbindet sich mit dem Beton durch eine natürliche Reaktion mit dem Umgebungsbeton und dichtet somit aktiv die abzudichtende Fuge ab. Die Fuge wird durch die Spezial- beschichtung aktiv zugesintert und dadurch immer dichter. Man spricht von einer aktiven Versinterung oder auch aktiven mineralisierenden Tiefenabdichtung. Die einzigartige Verbindung der aktiven VIBASinterflex Spezialbeschichtung zum Frischbeton verhindert zuverlässig eine Umwanderung des VIBA-Sinterflex Fugenblechsystems. Um sicher abzudichten genügt eine Betoneinbindung von nur 3 cm. Das VIBA-Sinterflex ist wasserreaktiv und dichtet somit Arbeits- und Sollrissfugen aktiv durch einen natürlichen betontechnlogischen Prozess ab.
Wasserdrücke bis einschließlich 5 bar = 50 m WS können sicher abgedichtet werden!
Log in to see more information
Metal clamp with nail
Metal clamp with pre-mounted nail for all salable bolt guns
For shooting and nailing Mounting all 15 cm
Log in to see more information
Fastening packers
Fastening packers
incl. nipple to fix the injection hose at the formwork
colour:black
10 plugs red, 10 plugs white for resin injection
Log in to see more information
VIBA-flex joint sheet metal roll - 150 mm
The joint tape roll is made of galvanized stell with a both sided polymer-bitumen coating. The coating is protected by a paper which is lenghtwise split for easier usage.
Roll á 20 lfm
Log in to see more information
VIBA-Flex Joint sheet without feet
For more stability light angle.The sealing plate is made of galvanised steel and has polymer bitumen coating on both sides (Adhesive coating).
Log in to see more information
Uni Concrete Sleeve Ø 15 mm Three-Piece PA66GF30
Anchor sleeve UNI Ø 15 mm three-part made of PA66GF30
With internal winch for Ø 15 mm Dywidag tie rod.
Ideal use for fastening slab edge formwork, consoles, scaffolding, guardrails, etc.
Permissible load 28KN
Log in to see more information
VIBA Sinterflex waterstop sheet
Our VIBA Sinterflex waterstop sheet is coated on both sides with a patented “active” special coating. This coating is non-sticky and does not require any protective film to be removed before concreting. The coating bonds with the concrete through a natural reaction with the surrounding concrete, thereby actively sealing the joint to be waterproofed. The joint is actively sintered by the special coating and therefore becomes increasingly dense over time. This process is referred to as active sintering or active mineralizing deep sealing. The unique bond between the active VIBA Sinterflex special coating and fresh concrete reliably prevents water from migrating around the VIBA Sinterflex waterstop system. For secure sealing, a concrete embedment of only 3 cm is sufficient. VIBA Sinterflex is water-reactive and therefore actively seals construction joints and designed crack joints through a natural concrete-technology process.
Water pressures up to and including 5 bar = 50 m water column can be safely sealed.
Log in to see more information
Injection resin - PROTECT
Injection resin - PROTECT Expansive polyurethane resin for crack and hose injection in wet areas.
Consumption hose compression: ca. 1,5L per 10 m
Approved for drinking water applications, low viscosity and permanently elastically, long processing time ca. 100 min by 20°C
Packaging: 1 liter composite can = 750 mL component A and 250 mL component B
Shipping weight 1,3 kg
Log in to see more information
Swelling tape made of bentonite
Bentonite swelling tape are proven reliable since many years. The tape swells by contact with water and seal cracks and construction joints safe and durable.
The tests guarantee that the product can be used in many differnet applications.
General test certificate issued by an approved building inspectorate
Approved for drinking water applications
Advantages, which convince:
Easy and safe installation
No moulded parts and weldings
No upstands
Swell- and shrinkage proces is reversible
Self-injecting effect
Form stability and not sticky - the swelling tapes insists in cracks and cavities.
No waste or remnants
Environmentally friendly
Safe through tests
Installation:Swelling tape made of bentonite are mounted with grids or glues for swelling tapes. The tapes are laid within the reinforcment with 8 cm concrete cover.
Test certificates:
Dimension 25/20, audited to a water pressure of 50 metre water column
Suitable for Tidal zones
Drinking water applications
Log in to see more information
Glue for swelling tapes
Swelling tape glue for Betonite- and EPDM swelling tapes
cartridge 310 ml;
consumption: 1 cart./8 m
Log in to see more information
