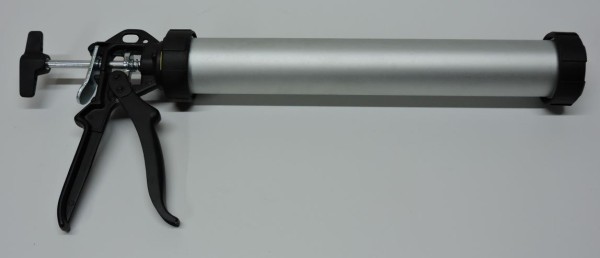

Cartridge gun for Flex 2000
Product number:
61LXN120620
Available, delivery time: 1-3 days
Price on request
Skip product gallery
Customers also viewed
Flex 2000 sealing paste
Technical description:
Storage: 2 years at 20 ° C
Consistency: pasty, stable
Processing temperature: + 5 ° C to + 35 ° C
Consumption: approx. 1.6 kg per liter of cavity
Heat resistance: + 50 ° C
Log in to see more information
Kreuzklemmen für Erdungsband / - draht Kombination verzinkt
Cross clamps in different designs for grounding strap / wire combination
Log in to see more information
Cartridge gun for 310ml / cartridge
Cartridge gun used for cone glueing.
Attention: Without Contact adhesive cartridge!
The glue is a seperate article: Contact adhesive X1 cartridge / 290 mL
Log in to see more information
Ringraumdichtung Professional 2 geteilt
Eigenschaften:
absolut gas- und wasserdicht
geschlossen oder geteilt
millimetergenau anpassbar
leich motierbar
optional mit überdeckendem Flansch (F) oder exzentrisch
Mehrfachbelegung möglich
Technische Daten:
Dichtbreite 60 mm
Edelstahl rostfrei V2A und V4A
Gummiqualität in EPDM, NBR und mit KTW-Zulassung lieferbar
für Kernbohrungen/Futterrohre von Ø 50 - 500 mm
Rohrgröße bis Ø 400 mm
Kernbohrung / Futterrohr Ø mm
Medium Rohr Ø mm
50
0 - 26
60
0 - 36
70
0 - 40
80
0 - 50
100
0 - 63
125
0 - 90
150
0 - 112
200
0 - 162
250
0 - 210
300
0 - 260
350
0 - 310
400
0 - 350
450
0 - 400
500
0 - 450
Log in to see more information
Kreuzklemmen für Erdungsband / - draht Kombination verzinkt
Cross clamps in different designs for grounding strap / wire combination
Log in to see more information
Binding wire MAX-TW898-EG Galvanized
Galvanized binding wire MAX-TW898-EG for RB 398 RB2, RB3 and RB5 series.
Box of 50 rolls
Log in to see more information
Earthing round wire galvanized / stainless steel
Available in the following versions:
Stainless steel.
galvanized
Further dimensions on request.
Log in to see more information
Ringraumdichtung Basic 1 - Dichtungsbreite 40 mm
Annular seal Basic 1 made of stainless steel, V2A (material no.1.4301)
Seal width 40 mm for pressing water up to 2.5 bar
completley gastight and watertight
built-in torque control
EPDM rubber insert
DIVIDING THE RING SEAL BASIC 1
To split the annular seal Basic 1, loosen and remove a screw.
Unfold the front and rear press segment and cut the rubber press ring radially about 10 mm to the left or right of the screw hole with a sharp knife.
Log in to see more information
Swelling tape made of TPE (Flowstop)
TPE (thermoplastic elastomer) - swelling tape for the safe sealing of construction joints and penetrations, in concrete structures, against the ingress of water. Because of the swelling and the swelling pressure generated during the swelling process no water can penetrate
Application:
The sealing of construction and connection joints in / on concrete structures in the foundation and groundwater area are typical applications for the FLOWSTOP high pressure swelling tape. As well as all types of penetrations of the building structure in areas that are to be permanently sealed against water. The FLOWSTOP high-pressure swelling tapes are easy, quick and inexpensive to install and are reliable and permanently sealed, even with high water pressure! In comparison to other sealing products no additional upstand is necessary.
Log in to see more information
Ringraumdichtung P-Cable Basic HRD Ø100
The P-Cable Basic HRD annular seal is available in various designs.The following product identification is used:
SG x (number of holes) / y-z (area in which the hole can be adjusted)
Log in to see more information
