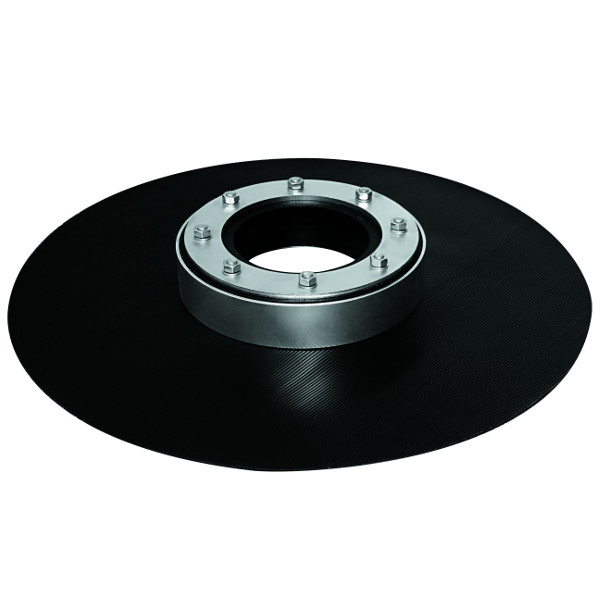

Folienklemmflansch Typ FKF - Universal | teilbar | 0/75/90/110 mm | 150 mm

Ausführung:	teilbar
Medium pipe Ø:	0/75/90/110 mm
ø in mm:	150 mm

Ausführung:	teilbar
Medium pipe Ø:	0/75/90/110 mm
ø in mm:	150 mm

Product Nr.	Product	Ausführung	Medium pipe Ø	ø in mm	Price	Action
61LXKF150UG	Folienklemmflansch Typ FKF - Universal	teilbar	0/75/90/110 mm	150 mm	Log in to see more information	Log in or Sign up
61LXKF200UG	Folienklemmflansch Typ FKF - Universal	teilbar	0/110/125/135/160 mm	200 mm	Log in to see more information	Log in or Sign up

Folienklemmflansch Typ FKF - Universal

For sealing media of any material from a wall,against pressing water up to 1.5 bar Scope of delivery of the film clamping flange type FKF Universal: Seal made of stainless steel V2A, 40 mm wide Foil flange 1.2 mm, based on DIN 16937, oil and bitumen-resistant, approx. 15 cm all round Adhesive and sealant PU 50 Notched spatula Pressure roller and pencil

Mauerkragen aus TPE - Themoplastischem Elastomer

MPA certificated! Masonry collars from TPE-Themoplastic Elastomer Application area:The sealing collar is used whenever a water-tight lead-through of pipe lines through foundation slabs, walls, and masonry is required. The sealing collar, which has passed the pressure test at 5 bar, prevents moisture from getting into the building along the outer pipe walls. Tested for impermeability up to 50 m water column. Properties:The sealing collar is supplied in pre-assembled condition with 2 stainless steel straps. The circular, 4 cm wide collar, which is equipped with additional waterstops, prevents liquids from getting into the building. Small waterstops inside the collar ensure water-tightness up to a water column of 50 m after tightening of the stainless steel fastening straps.Assembly clean pipe surface if necessary slide on the sealing collar and fix it in the centre of the concrete/wall tighten the fastening straps

Mauerkragen aus TPE - Themoplastischem Elastomer

MPA certificated! Masonry collars from TPE-Themoplastic Elastomer Application area:The sealing collar is used whenever a water-tight lead-through of pipe lines through foundation slabs, walls, and masonry is required. The sealing collar, which has passed the pressure test at 5 bar, prevents moisture from getting into the building along the outer pipe walls. Tested for impermeability up to 50 m water column. Properties:The sealing collar is supplied in pre-assembled condition with 2 stainless steel straps. The circular, 4 cm wide collar, which is equipped with additional waterstops, prevents liquids from getting into the building. Small waterstops inside the collar ensure water-tightness up to a water column of 50 m after tightening of the stainless steel fastening straps.Assembly clean pipe surface if necessary slide on the sealing collar and fix it in the centre of the concrete/wall tighten the fastening straps

KG - Rohrdurchführung Typ UDM Fließrichtung

By draining waste water in a uniform flow direction without unnecessary edges, clogged pipes and nasty surprises are avoided. This can be done easily with the VIBA KG pipe bushing type UDM. Thanks to the innovative connection, external KG pipes can be connected to the spigot with the socket without the flow direction of the waste water being influenced by additional edges. Clogged pipes: no chance! Filling flange (flange made of ABS). When using plastic-modified bitumen coatings (load case according to DIN 18195 Part 4), the outer seal can be applied using the filler flange.

KG-Rohrdurchführungen Typ FR Fließrichtung

The pipe bushing type FR fulfills the wishes of many building owners and architects to drain sewage from the building in only one direction of flow. The special connection avoids unnecessary edges. Thanks to the watertight, all-round four-web seal and an additional all-round double-wall seal, it stays dry even in the basement. The built-in covers are included in the delivery for easy and safe installation. Other diameters and wall thicknesses on request!

Mauerkragen aus TPE - Themoplastischem Elastomer

MPA certificated! Masonry collars from TPE-Themoplastic Elastomer Application area:The sealing collar is used whenever a water-tight lead-through of pipe lines through foundation slabs, walls, and masonry is required. The sealing collar, which has passed the pressure test at 5 bar, prevents moisture from getting into the building along the outer pipe walls. Tested for impermeability up to 50 m water column. Properties:The sealing collar is supplied in pre-assembled condition with 2 stainless steel straps. The circular, 4 cm wide collar, which is equipped with additional waterstops, prevents liquids from getting into the building. Small waterstops inside the collar ensure water-tightness up to a water column of 50 m after tightening of the stainless steel fastening straps.Assembly clean pipe surface if necessary slide on the sealing collar and fix it in the centre of the concrete/wall tighten the fastening straps

Earthing socket M 16 length: 400 mm

Design: disc stainless steel,Sleeve galvanized and chromated.

Kreuzklemmen für Erdungsband / - draht Kombination verzinkt

Cross clamps in different designs for grounding strap / wire combination

Construction water bar inside

Vitzthum-water bars made of soft PVC bribe through many good features and high profitability. The water bars are resistant against acid, alkali and putrefaction. Variety overview: Typ a b c f 61A080 80 - - - 61A100 100 40 3,0 10 61A120 120 45 3,0 10 61A200 200 70 3,0 15 61A250 240 80 3,5 15 61A300 320 110 4,5 15 Bitumen-resistant variety on request!

Seal "onion ring" technology Ø 150 mm - fixed type 1 MR Ø 32, 40, 50, 63, 76, 90, 110 mm

Seal for pressing and non-pressing water Tested for continuous use up to 30 m water column Press plates and screws made of V2A stainless steel Sealing width 40 mm NBR rubber insert Temperature range -30 ° C to + 120 ° C
