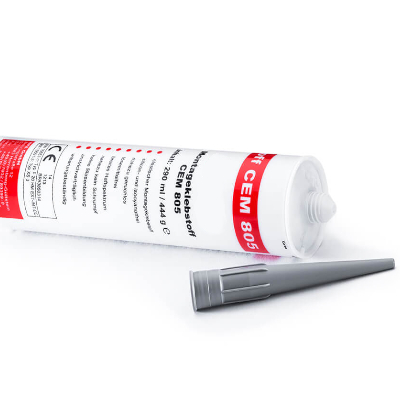

Contact adhesive CEM 805 for swelling waterstop and joint sealing strip
CEM805 is a one-component, neutral-odor sealing and bonding compound based on MS hybrid polymer technology. It is solvent-free, silicone-free and isocyanate-free, cures neutrally, is paint-compatible, weather-resistant and offers good chemical resistance.
Applications:Contact adhesive CEM805 is used as a system sealant and installation adhesive for hydrophilic waterstops, joint sealing sheets and concrete plugs.
Typical applications include:
Sealing and bonding in concrete construction for interior and exterior use
Tested for watertightness up to 5.0 bar hydrostatic water pressure (= 50 m water column) in the DualProof System (PVC-P), at product transitions and on concrete surfaces
Crack-bridging up to 2.50 mm down to -35°C (crack-bridging class A5)
Crack-bridging sealant up to 50 m water column
Suitable for use on plaster, gypsum, ceramic, glass, wood, metal and various plastic substrates, as well as galvanized steel and aluminum
Well suited for bonding construction foils and membranes
Suitable for sealing and bonding applications requiring silicone-free systems on site
Butt joint bonding of SilverSeal using CEM805 has been tested and proven watertight up to 2.5 bar (= 25 m water column) Hydrophilic joint tapes (Art. No. 61L) and swelling rubber profiles can be installed in a backflow-proof manner with CEM805 in accordance with German general building authority approval (abP) Also suitable for use with fresh concrete bonded waterproofing systems and joint sealing metal sheets.
Note: Do not apply on substrates such as bitumen, tar or coatings that may cause incompatibilities and plasticizer migration. Standards and certification CEM805 contact adhesive is tested as a sealant in accordance with EN 15651-1 and certified as EC1Plus according to EMICODE.
Product features and advantages:
Ready-to-use MS polymer installation adhesive and sealant, free of silicone, isocyanates and solvents, with a broad adhesion spectrum
Elastic
Non-corrosive
Neutral odor
Weathering and aging resistant
Good UV resistance
Virtually no shrinkage
No bubble formation
Paint-compatible
Log in to see more information

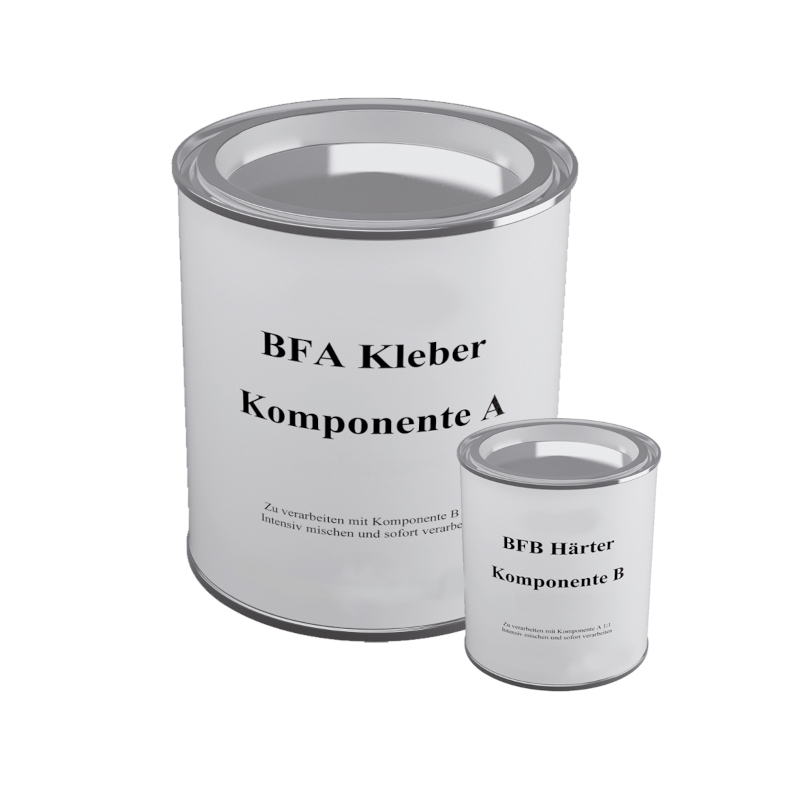

Concrete adhesive with two components based on epoxy resin.
BFA adhesive is a solvent-free, mineral-filled reactive resin based on epoxy. The product is used for fixing, bonding, and force-locking connections of components made of concrete or reinforced concrete. It is primarily used for bonding exposed concrete plugs and FB plugs. Bonding of other materials is possible but should be tested in advance. The product is not suitable for strengthening or repair purposes within EN 1504-4.
Two-component concrete adhesive based on epoxy resin.
Processing/mixing ratio 1:1.
The safety data sheet must be strictly observed.
Tested for water impermeability (test report no. 213000121-19)
Log in to see more information
External sealing ActiveRing
The ActiveRing mini and maxi allow a safe and lasting sealing for fibre conrete- and plastic tubes.
Easy and safe
Sealing test MFPA Leipzig
Good chemical resistance´
Waterproofing up to 8 bar
Log in to see more information
Spacer tubes with roughed surface
Spacer tubes with a roughened surface from Ø 20mm to Ø 40 mm in bundles. Standard length is 2,0 metre.
Ø 20mm to Ø 22mm 100 running meters per bundle
Ø 26mm to Ø 32mm 50 running meters per bundle
Ø 40mm 30 running meters per bundle
Log in to see more information

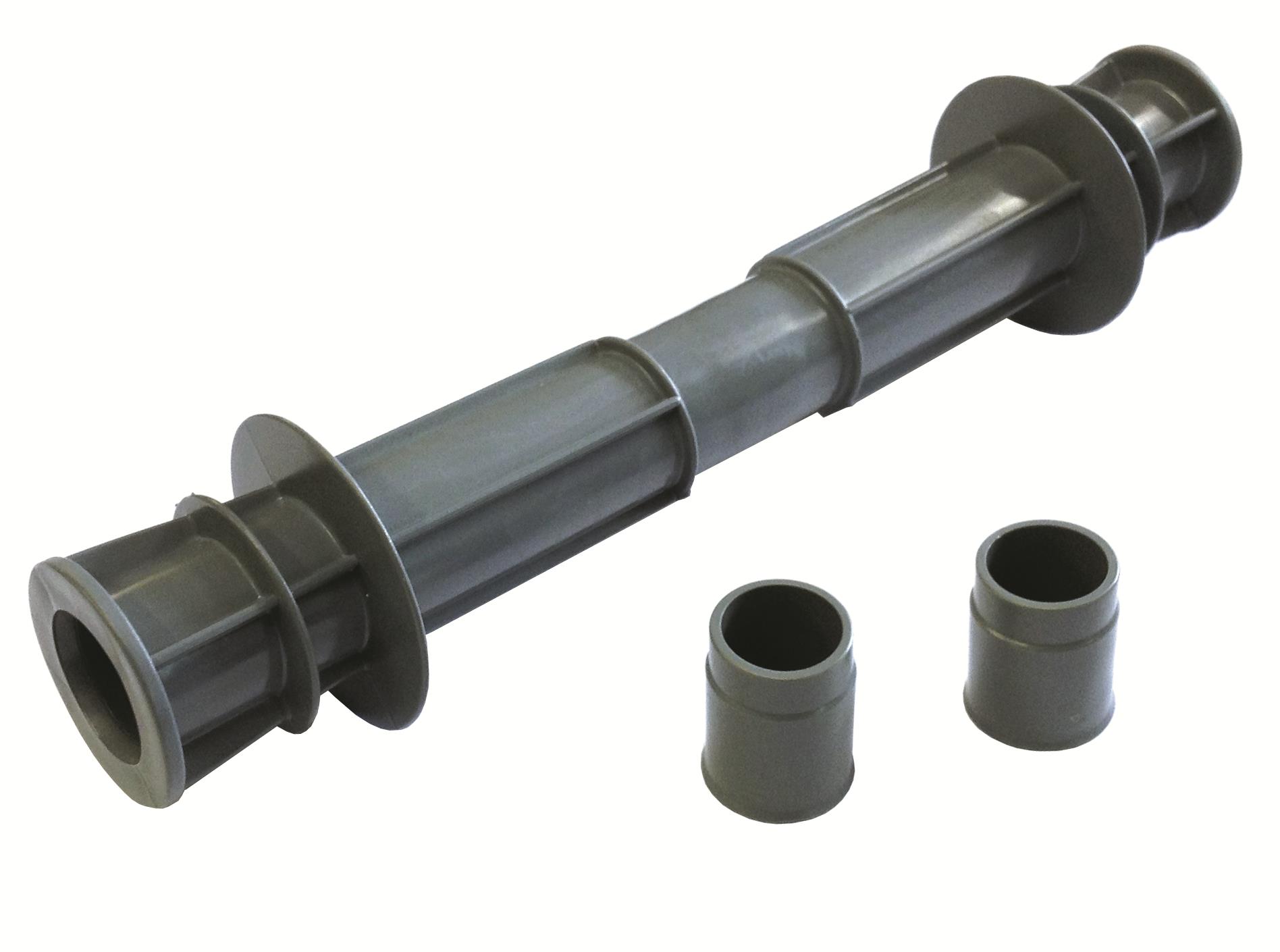

VIBADISTANCE-Spacer tube (VDZ) incl. 2 plugs
Formwork spacer tube "made of one piece" with two sealing plugs. Secure the wall thickness reliably!
Material: HDPE
Log in to see more information
VIBADISTANCE-Spacer tube (VDZ) incl. 2 plugs and a swell covering
formwork spacer sleeve "homogeneous" includig two plugs and a swell covering. Material: HDPE. VIBADISTANZ Active conforms all defaults.
Any lengh on request!
Log in to see more information

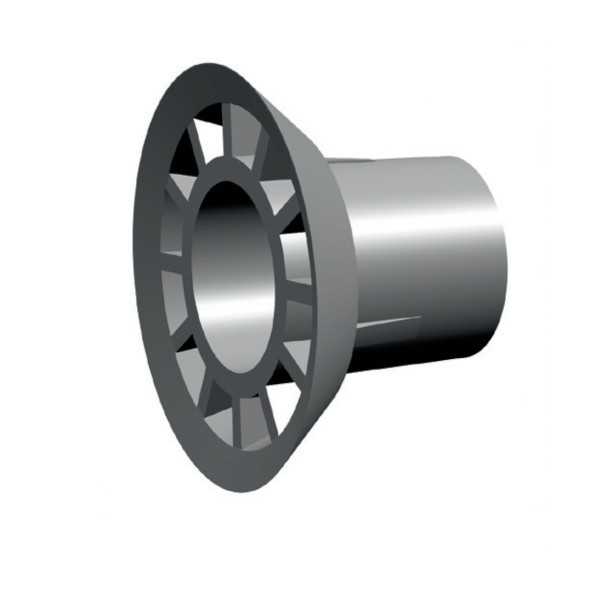

Pressure cone Standard (PVC-free)
The pressure cones are attached to the spacer tube.
After concreting, the pressure cones are removed from the concrete and can be reused.
Log in to see more information

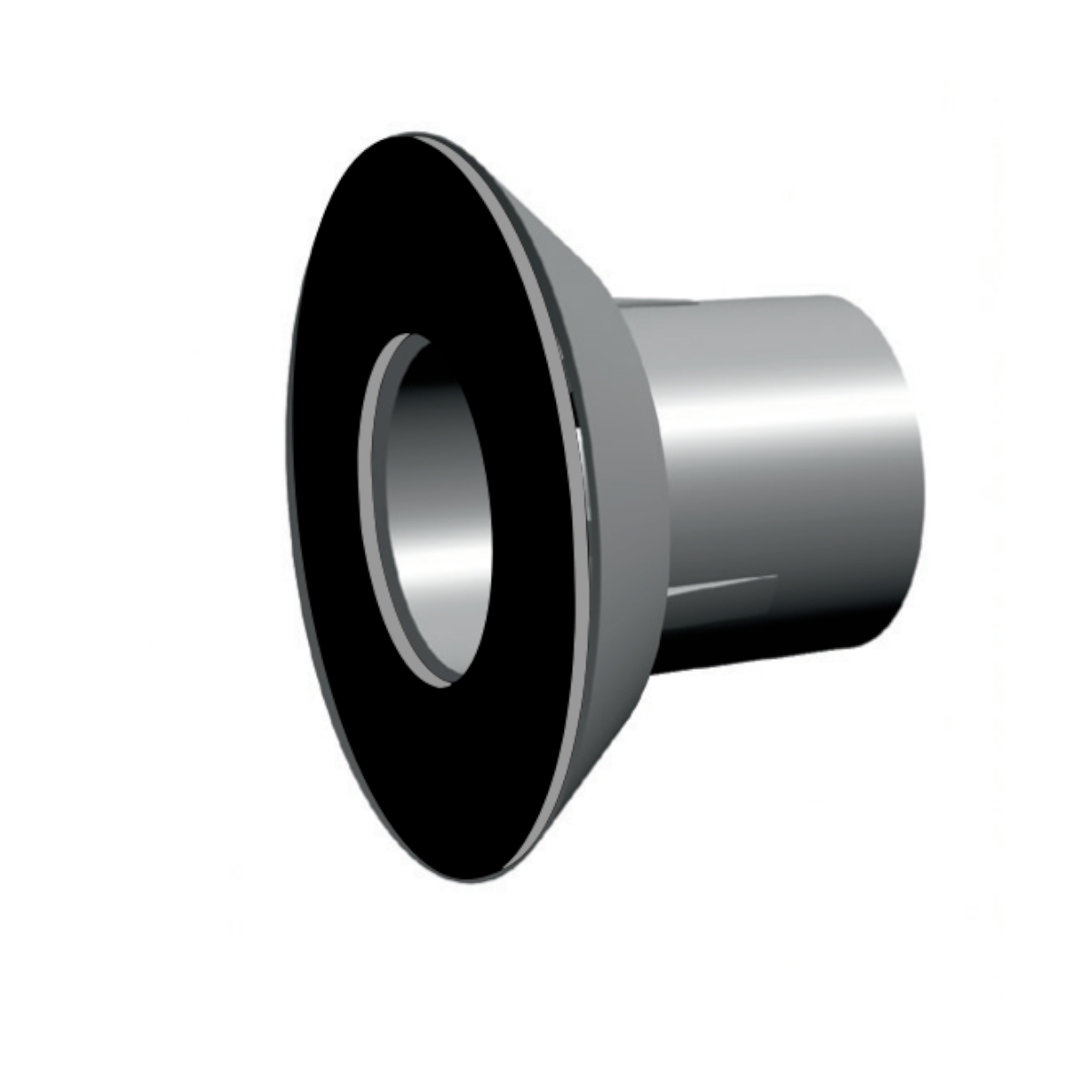

Pressure cones (PVC-free) with glued sealing
Flat seal thickness 8 mm or 2 mm
The pressure cones are attached to the spacer tube. After concreting, the pressure cones are removed from the concrete.
Log in to see more information

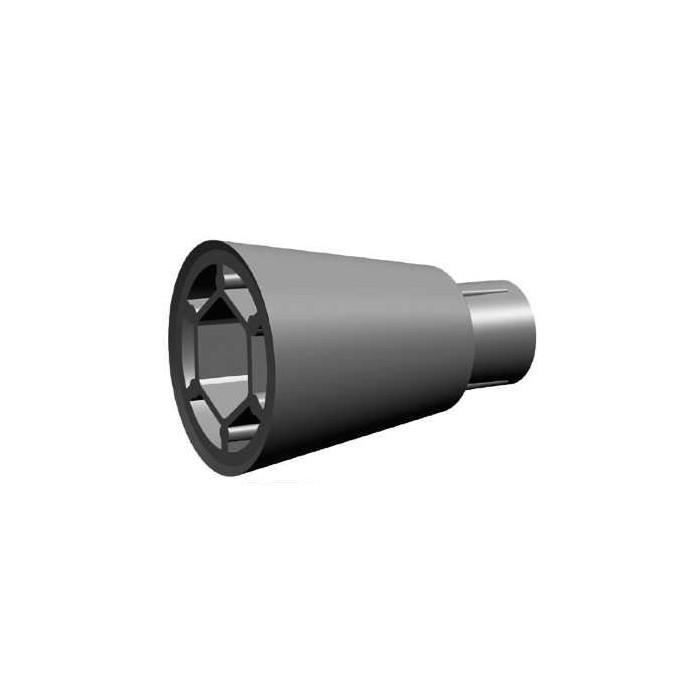

Druckkonus lang PVC frei
Cones made of plastic, suitable for tube struts with a inner diameter of 22 mm respectively 26 mm.
The remaining conical openings, after removing the pressure cones, are sealed with conrecte cones 40/5 and sealing adhesive.
Pressure cones are reuseable.
Log in to see more information

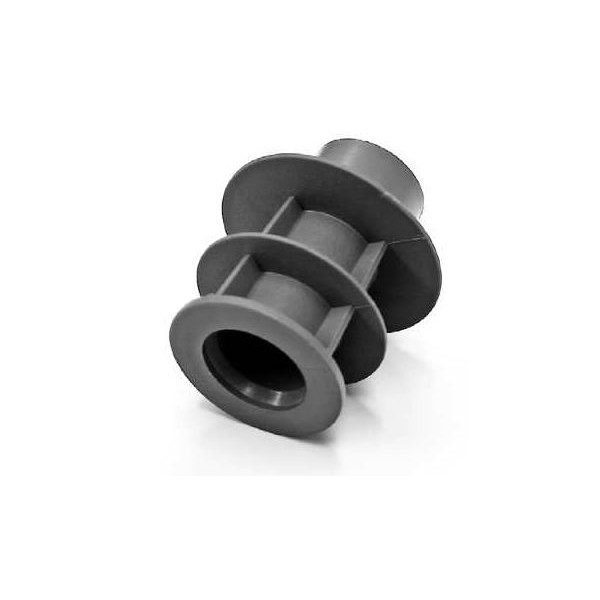

Grooved cone (VIBADISTANZ) Ø 22 mm
Grooved cone (Vibadistant) Ø 22 mm
Log in to see more information

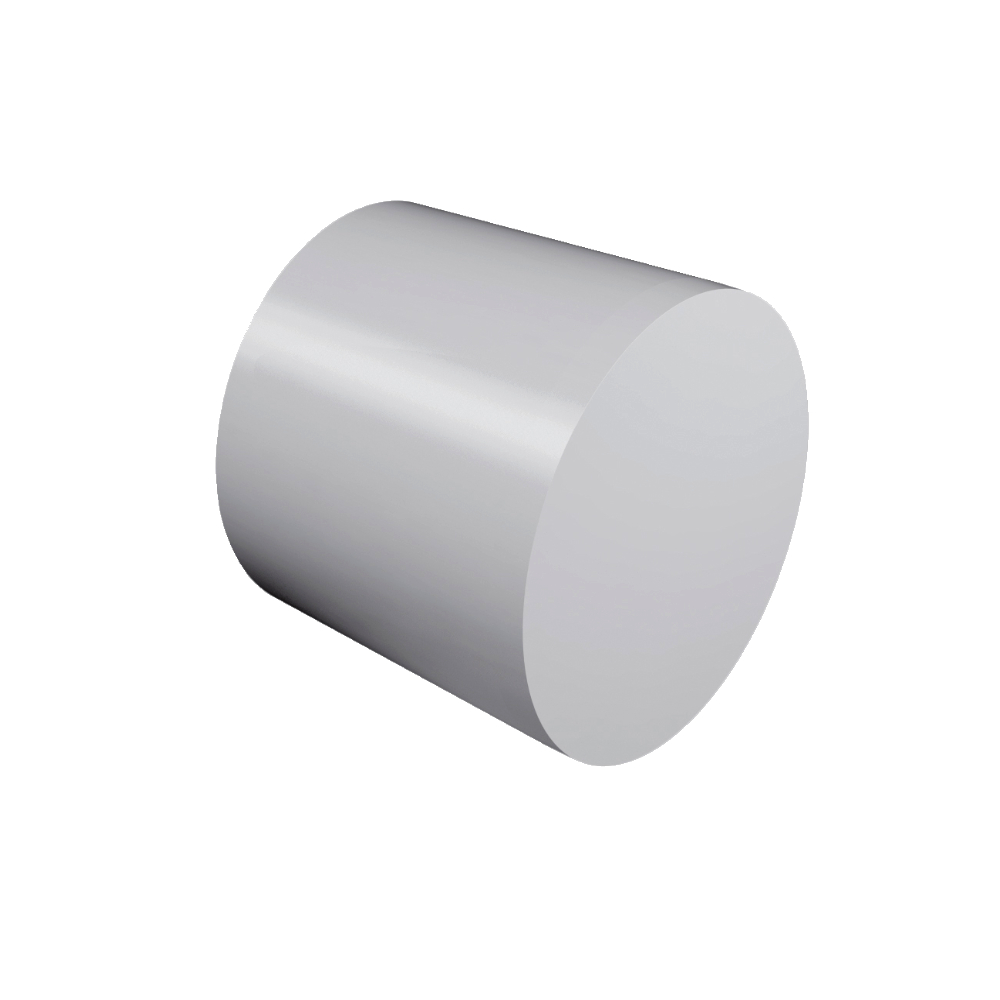

Plugs smooth
Plastic plugs (colour gray) to close the spredaer after form removal.
Log in to see more information
RiveStop SS Deckel + Niete-Edelstahl EXTERN
Type: EXTERNAL
RiveStop SS with stainless steel cover plate and stainless steel rivet mandrel. Ideal for exposed concrete walls in combination with the stainless steel cover. Water pressure tight up to 5 bar. Certified by APPLUS.
It is recommended to use RiveStop with stainless steel rivets (SS) for sealing with direct water contact and constant pressing water
STEP 1: Insert RiveStop into the opening to be sealed.
STEP 2: Remove the mandrel. The rivet will expand until the opening is hermetically sealed.
Log in to see more information
RiveStop PS Deckel PVC + Niete-Edelstahl
RiveStop PS mit Kunststoff Abdeckscheibe und Edelstahl Nietdorn. Für Tiefbau, Garagen, Tunnel. Druckwasserdicht bis 5 bar. Zertifiziert durch APPLUS.
Zum Abdichten mit direktem Kontakt mit Wasser und ständige drückendem Wasser wird empfohlen RiveStop mit Edelstahl Niete (PS) zu verwenden.
SCHRITT 1: Führen Sie RiveStop in die abzudichtende Öffnung ein.
SCHRITT 2: Entfernen Sie den Nietdorn. Die Niete dehnt sich aus, bis die Öffnung hermetisch versiegelt ist.
Log in to see more information

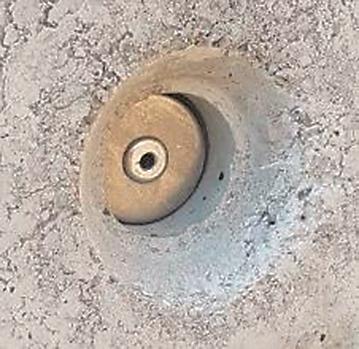

RiveStop SS intern
TYPE: Internal
RiveStop SS with stainless steel cover plate and stainless steel rivet mandrel. Ideal for exposed concrete walls in combination with the stainless steel cover. Water pressure tight up to 5 bar. Certified by APPLUS.
It is recommended to use RiveStop with stainless steel rivets (SS) for sealing with direct water contact and constant pressing water.
STEP 1: Insert RiveStop into the opening to be sealed.
STEP 2: Remove the mandrel. The rivet will expand until the opening is hermetically sealed.
Log in to see more information
Hand riveting pliers with special head
For the INTERN RiveStop rivets
A SIMPLE, FAST, COST-SAVING AND DURABLE SOLUTION
The most suitable tool for installing RiveStop is an ambidextrous manual riveting machine with a long lever (nozzle size 4.8-5 mm / 0.18-0.19 in) or an electric riveting machine. Riveting is very quick and takes about 3 to 5 seconds per drill hole. If you use an electric riveting machine, it's even faster.
Log in to see more information

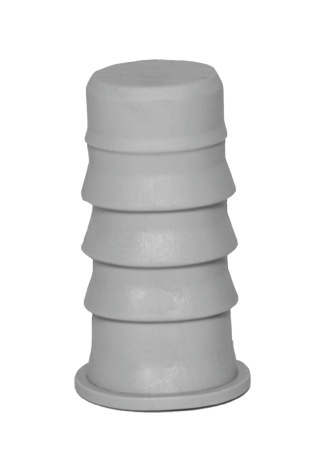

Stopper mini Ø 22 mm
Mit dem Stopper können Mauerstärken aus Faserzement und Kunststoff innen druckdicht verschlossen werden. Beständigkeit: Wasser, UV, Ozon, verdünnte Säuren + Laugen, Gülle + Jauche, Gärungsmaische, Öle + Bitumen, Radon + Methangas, Temperaturbereich - 35 bis + 70 °C Material TPE Druckprüfung nach beidseitigem Verschluss der Faserbetonrohre: Wasserdicht bis 3 bar, Druckprüfung MFPA Leipzig Erweiterte Druckprüfung von 21,5 bis 23,0 mm Prüfzeugnis für den Stopfen zur Abdichtung in Rohrinnenseite. Bitte Einbauanleitung für Stopper anfordern und beachten. Brandprüfung: Feuerwiderstandsklasse E1 120 nach DIN EN 13501-2 mit Faserbetonmauerstärken Klassifikation DIN EN 13501-1 E = normalentflammbar DIN EN 4102-1 B2 = normalentflammbar
Log in to see more information

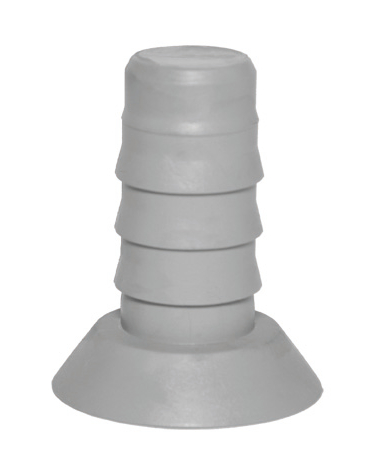

Stopper maxi mit Konusverschluss Ø 22 mm
Mit dem Stopper können Mauerstärken aus Faserzement und Kunststoff innen druckdicht verschlossen werden. Beständigkeit: Wasser, UV, Ozon, verdünnte Säuren + Laugen, Gülle + Jauche, Gärungsmaische, Öle + Bitumen, Radon + Methangas, Temperaturbereich - 35 bis + 70 °C Material TPE
Druckprüfung nach beidseitigem Verschluss der Faserbetonrohre:
Wasserdicht bis 3 bar, Druckprüfung MFPA Leipzig
Erweiterte Druckprüfung von 21,5 bis 23,0 mm
Prüfzeugnis für den Stopfen zur Abdichtung in Rohrinnenseite.
Bitte Einbauanleitung für Stopper anfordern und beachten.Brandprüfung: Feuerwiderstandsklasse E1 120 nach DIN EN 13501-2 mit Faserbetonmauerstärken Klassifikation DIN EN 13501-1 E = normalentflammbar DIN EN 4102-1 B2 = normalentflammbar
Log in to see more information

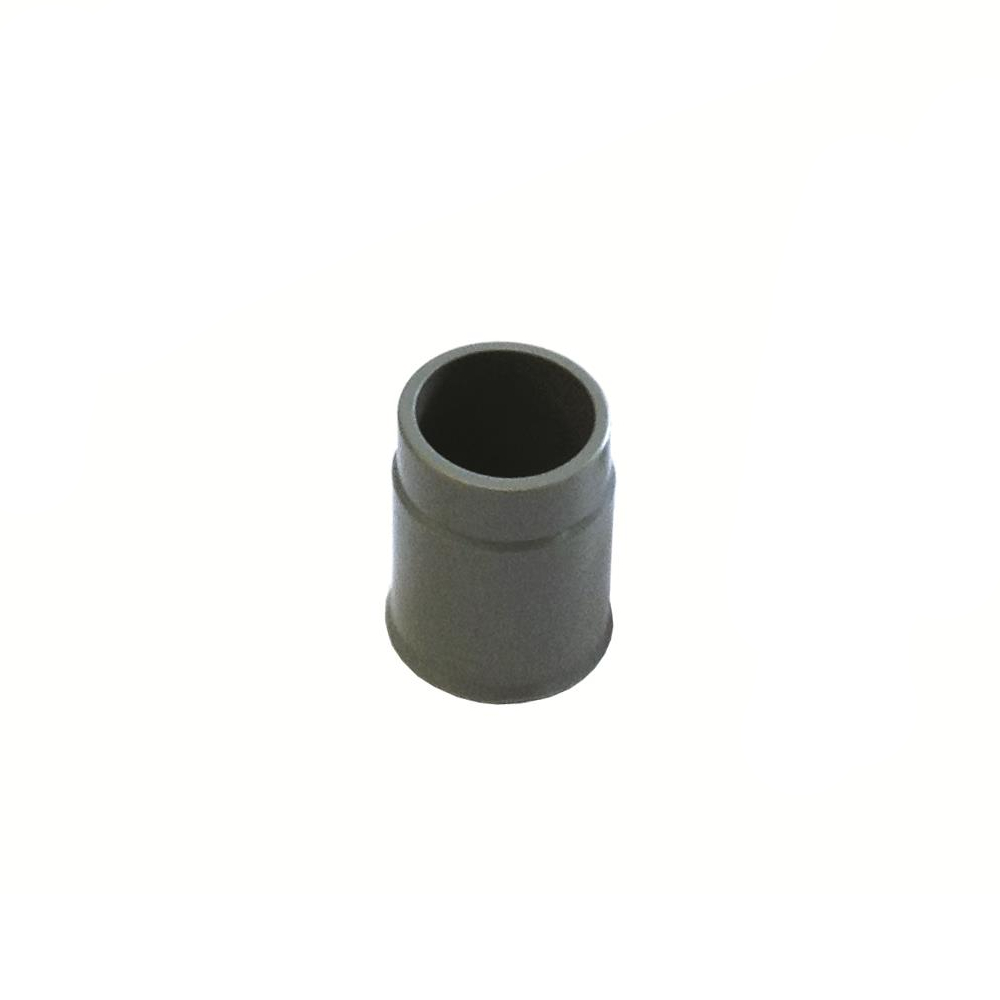

Plugs Vibadistanz Ø 22 mm
Material HDPE.
Appropriate for tubes with an outer diameter of 22 mm
Log in to see more information

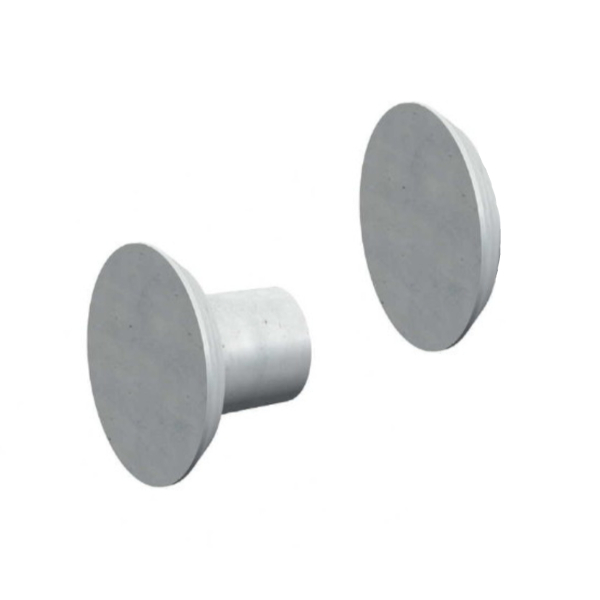

Exposed concrete plugs for pressure cone
The high-quality exposed concrete cones are bonded, with contact adhesive X1, in the remaining opening after removing the pressure cones. Apply the contact adhesive on the backside to obtain a clean visible area.
Log in to see more information

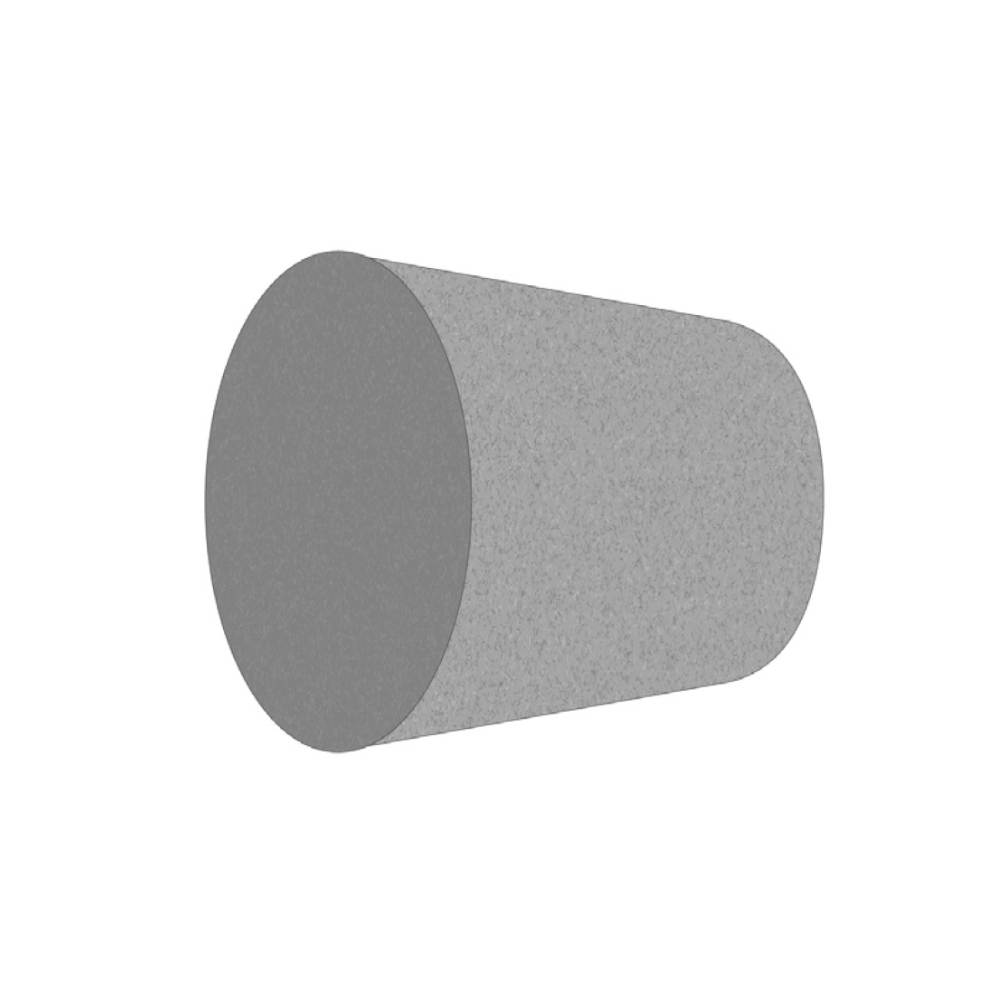

Decorative concrete cone for pressure cone 50 mm
High-class precisely tailored exposed concrete cone. After removing the pressure cones.
