Properties

Gewicht / Karton:	11,60 kg
Typ:	Quellbandkleber für Bentonit- und EPDM Quellbänder; Kartusche 310 ml, Verbrauch: 1 Kart. / 8m
package piece:	20 Kartuschen Karton

Contact adhesive CEM 805 for swelling waterstop and joint sealing strip

Product number: 61LK1

Price on request

Stk

Description

CEM805 is a one-component, neutral-odor sealing and bonding compound based on MS hybrid polymer technology. It is solvent-free, silicone-free and isocyanate-free, cures neutrally, is paint-compatible, weather-resistant and offers good chemical resistance.

Applications:
Contact adhesive CEM805 is used as a system sealant and installation adhesive for hydrophilic waterstops, joint sealing sheets and concrete plugs.

Typical applications include:

Sealing and bonding in concrete construction for interior and exterior use
Tested for watertightness up to 5.0 bar hydrostatic water pressure (= 50 m water column) in the DualProof System (PVC-P), at product transitions and on concrete surfaces
Crack-bridging up to 2.50 mm down to -35°C (crack-bridging class A5)
Crack-bridging sealant up to 50 m water column
Suitable for use on plaster, gypsum, ceramic, glass, wood, metal and various plastic substrates, as well as galvanized steel and aluminum
Well suited for bonding construction foils and membranes
Suitable for sealing and bonding applications requiring silicone-free systems on site
Butt joint bonding of SilverSeal using CEM805 has been tested and proven watertight up to 2.5 bar (= 25 m water column) Hydrophilic joint tapes (Art. No. 61L) and swelling rubber profiles can be installed in a backflow-proof manner with CEM805 in accordance with German general building authority approval (abP) Also suitable for use with fresh concrete bonded waterproofing systems and joint sealing metal sheets.

Note: Do not apply on substrates such as bitumen, tar or coatings that may cause incompatibilities and plasticizer migration. Standards and certification CEM805 contact adhesive is tested as a sealant in accordance with EN 15651-1 and certified as EC1Plus according to EMICODE.

Product features and advantages:

Ready-to-use MS polymer installation adhesive and sealant, free of silicone, isocyanates and solvents, with a broad adhesion spectrum
Elastic
Non-corrosive
Neutral odor
Weathering and aging resistant
Good UV resistance
Virtually no shrinkage
No bubble formation
Paint-compatible

Gewicht / Karton:	11,60 kg
Typ:	Quellbandkleber für Bentonit- und EPDM Quellbänder; Kartusche 310 ml, Verbrauch: 1 Kart. / 8m
package piece:	20 Kartuschen Karton

Zubehör

Bentonite swelling tape

Technically tested and approved for application! Bentonite swelling tape are proven reliable since many years. The tape swells by contact with water and seal cracks and construction joints safe and durable. The tests guarantee that the product can be used in many differnet applications. Advantages, which convince: Easy and safe installation No moulded parts and weldings No upstands Swell- and shrinkage proces is reversible Self-injecting effect Form stability and not sticky - the swelling tapes insists in cracks and cavities. No waste or remnants Environmentally friendly Safe through tests Installation:Swelling tape made of bentonite are mounted with grids or glues for swelling tapes. The tapes are laid within the reinforcment with 8 cm concrete cover. Test certificates: Dimension 25/20, audited to a water pressure of 50 metre water column Dimension 20/15, audited to a water pressure of 20 Metern water column suitable for Tidal zones Drinking water applications

Swelling tape made of TPE (Flowstop)

TPE (thermoplastic elastomer) - swelling tape for the safe sealing of construction joints and penetrations, in concrete structures, against the ingress of water. Because of the swelling and the swelling pressure generated during the swelling process no water can penetrate Application: The sealing of construction and connection joints in / on concrete structures in the foundation and groundwater area are typical applications for the FLOWSTOP high pressure swelling tape. As well as all types of penetrations of the building structure in areas that are to be permanently sealed against water. The FLOWSTOP high-pressure swelling tapes are easy, quick and inexpensive to install and are reliable and permanently sealed, even with high water pressure! In comparison to other sealing products no additional upstand is necessary.

Exposed concrete plugs for pressure cone

The high-quality exposed concrete cones are bonded, with contact adhesive X1, in the remaining opening after removing the pressure cones. Apply the contact adhesive on the backside to obtain a clean visible area.

Customers also viewed

Collecting tray 210 lt

210-liter painted spill tray with galvanized steel grating.

VIBA- Rebar connection (Single row)

Rebar connector VIBA made of galvanized, structured and sheet housing for perfect connection with concrete and to transfer the shear forces. Rebendable structural steel BST 550 with Austrian certificate (BST 500 on request available). Standard - Elementlength 125 cm. Shorther lengths on request For special types just send us the filled datasheets. We would be happy to create you an exclusive offer.

Betonklötze 20 mm, Vierbein

Gießbetonabstandhalter mit vier Füße. Geeignet für starke Belastung und Sichtbeton durch die schmalle Auflageflächen. Der Abstandhalter hat einen Ösendraht zur Befestigung.

Betonklötze 30 mm, Vierbein

Gießbetonabstandhalter mit vier Füße. Geeignet für starke Belastung und Sichtbeton durch die schmalle Auflageflächen. Der Abstandhalter hat einen Ösendraht zur Befestigung.

Exposed concrete plugs for pressure cone

External sealing ActiveRing

The ActiveRing mini and maxi allow a safe and lasting sealing for fibre conrete- and plastic tubes. Easy and safe Sealing test MFPA Leipzig Good chemical resistance´ Waterproofing up to 8 bar

Joint tape outside

Vitzthum-water bars made of soft PVC bribe through many good features and high profitability. The water bars are resistant against acid, alkali and putrefaction. Variety overview: Typ a (width) b c f 61F150 150 mm - - - 61F200 200 mm 80 mm 3,5 mm 20 mm 61F250 240 mm 90 mm 4,0 mm 25 mm 61A200 320 mm 110 mm 4,0 mm 25 mm Bitumen-resistant variety on request!

VIBA mandrel sleeve

Bearing made of plastic to absorb moving forces of VIBA shear force dowel. The quill zone allows a longitudinal movement up to 20 mm. In the colours: yellow gray green blue black available.

VIBA mandrel sleeve

Bearing made of plastic to absorb moving forces of VIBA shear force dowel. The quill zone allows a longitudinal movement up to 20 mm. In the colours: yellow gray green blue black available.

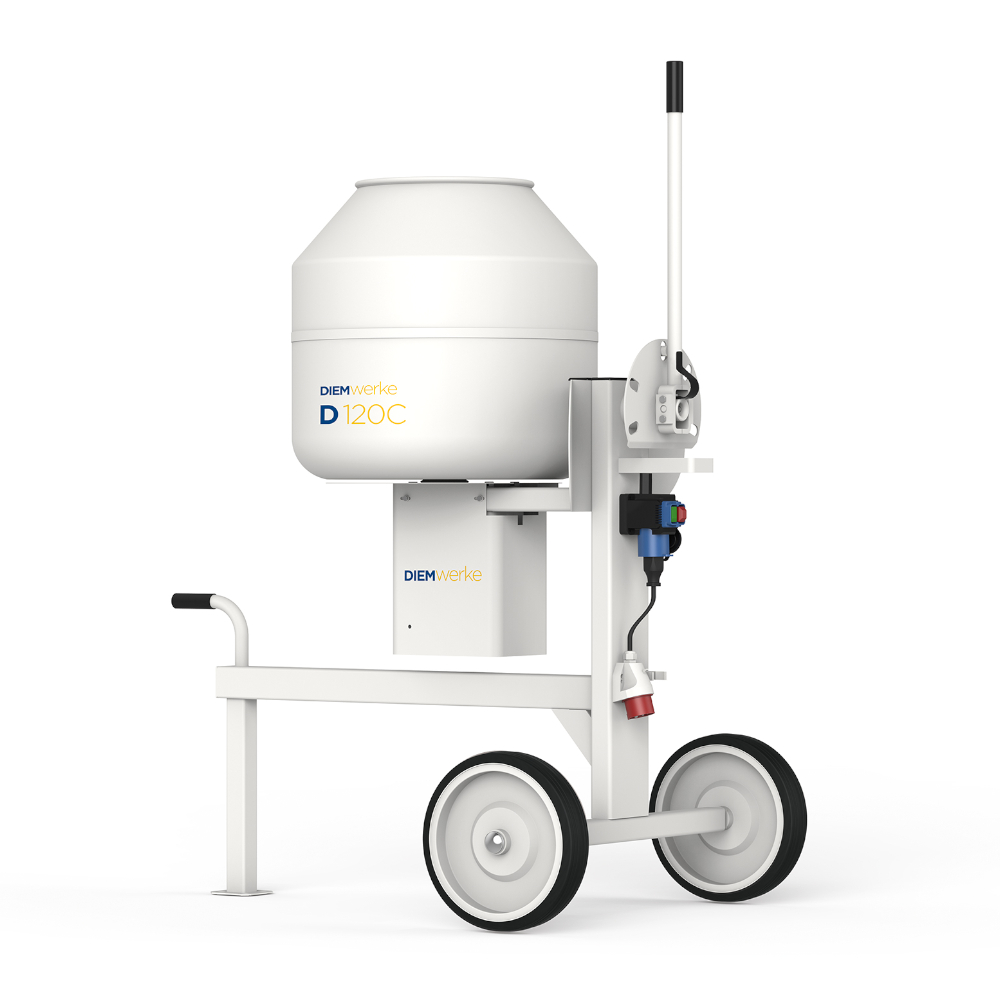

Diem- concrete mixer tilting drum type Allround D 120C
