KG 2000 Rohrdurchführungen

Sort by:

Folienklemmflansch Typ FKF - Universal

For sealing media of any material from a wall,against pressing water up to 1.5 bar Scope of delivery of the film clamping flange type FKF Universal: Seal made of stainless steel V2A, 40 mm wide Foil flange 1.2 mm, based on DIN 16937, oil and bitumen-resistant, approx. 15 cm all round Adhesive and sealant PU 50 Notched spatula Pressure roller and pencil

KG-Muffenring

For floor outlets

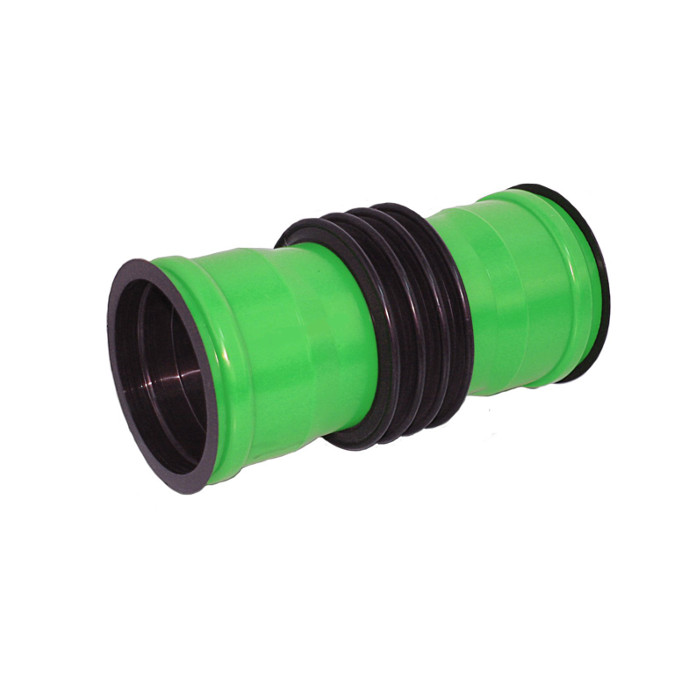

KG 2000 - Rohrdurchführung

KG 2000 double socket pipes with water stop Other wall thicknesses 300 - 500 mm available on request.The pipe diameters 100, 125, 150 and 200 mm are delivered with 2 covers.Pipe diameters of 200 and 300 mm are delivered without a cover.

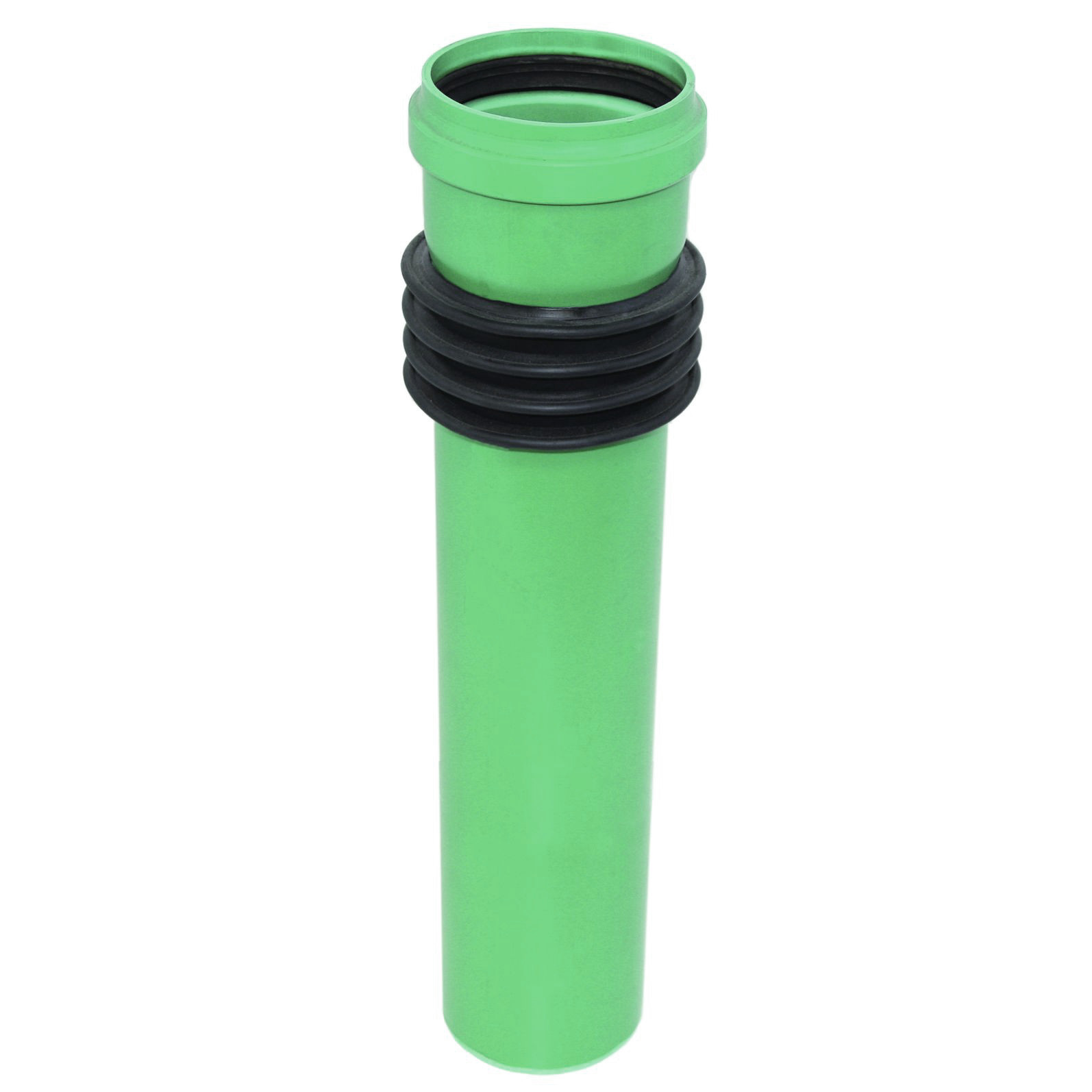

KG 2000 - Bodendurchlass

KG 2000 pipe with water stop and one-sided socket without cover.

KG 2000 - Rohrdurchführungen Typ FR Fließrichtung

The pipe bushing type FR fulfills the wishes of many building owners and architects to drain sewage from the building in only one direction of flow. The special connection avoids unnecessary edges. Thanks to the watertight, all-round four-web seal and an additional all-round double-wall seal, it stays dry even in the basement. The built-in covers are included in the delivery for easy and safe installation. Other diameters and wall thicknesses on request!
