Properties

Wandstärke in mm: 250 mm
ø in mm: 100 mm

KG 2000 - Rohrdurchführungen Typ FR Fließrichtung

Product number: 61LXRCFR100250

Available, delivery time: 1-3 days

ø in mm
Wandstärke in mm

Price on request

Stk

Description

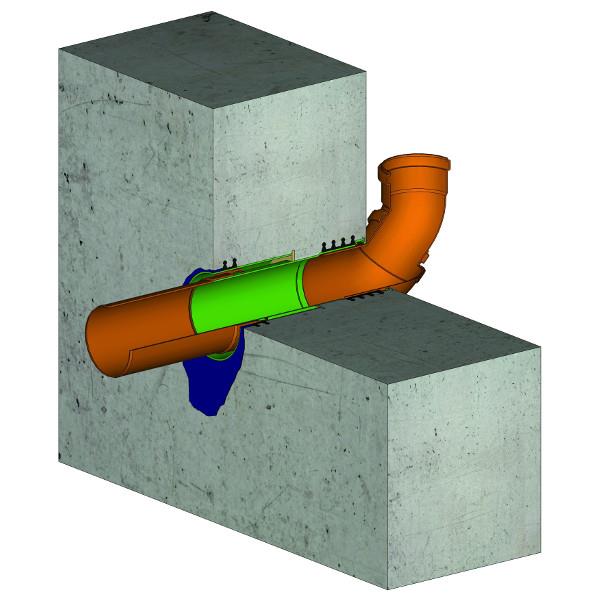

The pipe bushing type FR fulfills the wishes of many building owners and architects to drain sewage from the building in only one direction of flow. The special connection avoids unnecessary edges. Thanks to the watertight, all-round four-web seal and an additional all-round double-wall seal, it stays dry even in the basement. The built-in covers are included in the delivery for easy and safe installation.

Other diameters and wall thicknesses on request!

Properties

Wandstärke in mm: 250 mm
ø in mm: 100 mm
Filter products
Variants

With the help of our variant list you can find your article faster and easier.

Product Nr.
Product
Wandstärke in mm
ø in mm
Price
Action
61LXRCFR100200
 KG 2000 - Rohrdurchführungen Typ FR Fließrichtung
200 mm
100 mm
61LXRCFR100250
 KG 2000 - Rohrdurchführungen Typ FR Fließrichtung
250 mm
100 mm
61LXRCFR100300
 KG 2000 - Rohrdurchführungen Typ FR Fließrichtung
300 mm
100 mm
61LXRCFR125200
 KG 2000 - Rohrdurchführungen Typ FR Fließrichtung
200 mm
125 mm
61LXRCFR125250
 KG 2000 - Rohrdurchführungen Typ FR Fließrichtung
250 mm
125 mm
61LXRCFR125300
 KG 2000 - Rohrdurchführungen Typ FR Fließrichtung
300 mm
125 mm
61LXRCFR150200
 KG 2000 - Rohrdurchführungen Typ FR Fließrichtung
200 mm
150 mm
61LXRCFR150250
 KG 2000 - Rohrdurchführungen Typ FR Fließrichtung
250 mm
150 mm
61LXRCFR150300
 KG 2000 - Rohrdurchführungen Typ FR Fließrichtung
300 mm
150 mm
