Properties

Cuttin disc ø:	450mm/30mm
Cutting height:	153 mm
Engine Power:	4,2 / 3,2 kW
Rpm:	2760 U/min
Table size:	1110 / 750 / 850 mm
Vibration frequency:	50 Herz

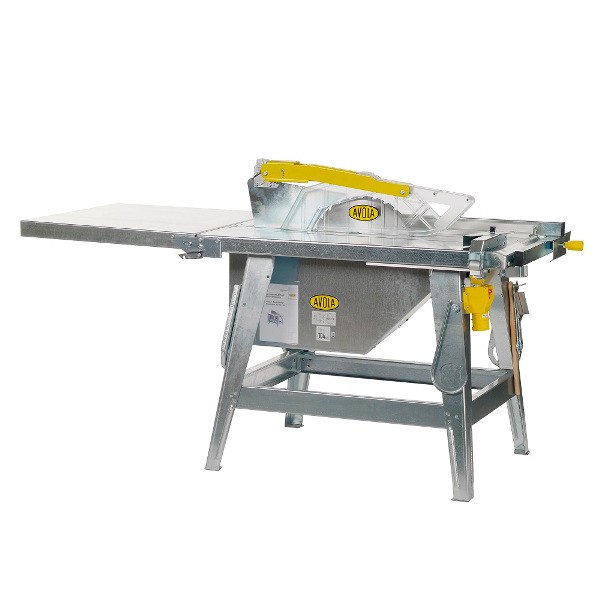

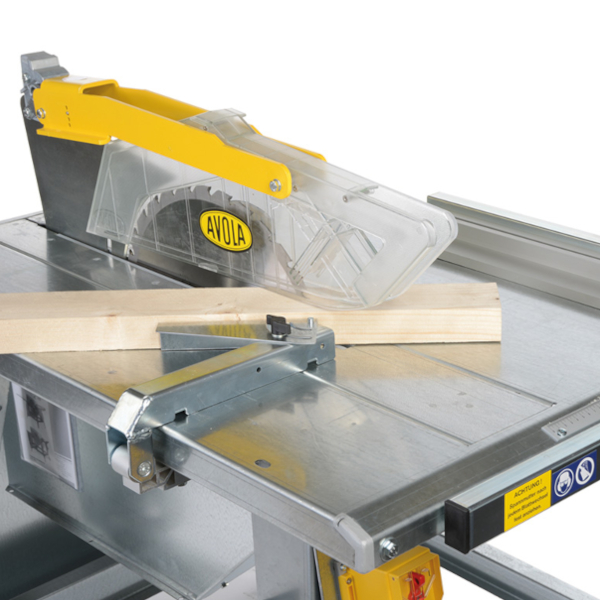

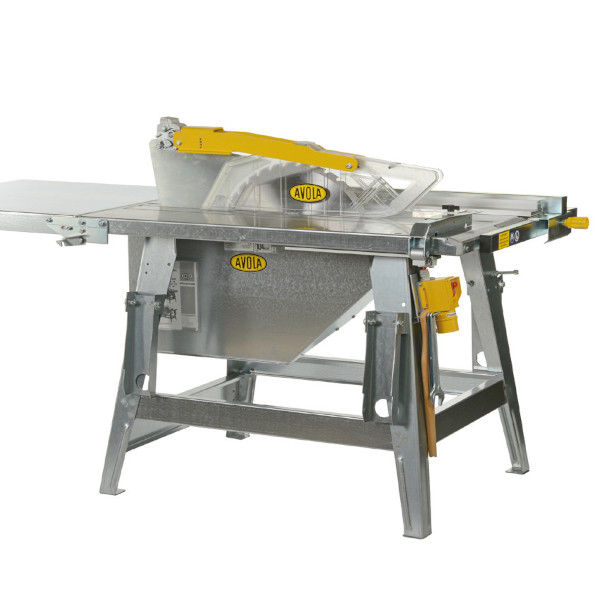

Construction saw AVOLA tyoe IC 450-10

Product number: 56C02451

Product request

Salutation

First name*

Last name*

Company name*

Phone number

E-Mail-Address*

Quantity*

Stk

Construction saw AVOLA tyoe IC 450-10

Message

Fields marked with asterisks (*) are required.

(Product number: 56C02451)

Description

More Safety with new norm EN 1870-1

Saw incl. 1 HM saw blade (nailed down)

Standard equipment:

Safety hood – table extansion
adjustable angle cutting device
undertable guideway, securely protected
Parallel stop with measuring scale
high quality TCT sawblade, noise reduced
machine frame completely galvanized, torsion - resistant
powerful motors with extensive reserves of safety, with magnetic brake
4 loading – unloading devices

Special equipment:

Driving device
Table extansion
Angle cutting device
Roller trestle

Technical data:

Motor power output P1/P2**	KW	4,2/3,2
Three – phase current	Volt	400
AC current	Volt	–
Equipment plug		CEE 516
Fuses, time lag	Amp.	16
Speed	U/min	2760
Sawblade dia. / bor hole	mm	450/30
Cuttung height	mm	153
Table size L x W	mm	1110 x 750
Table height	mm	850
Weight	kg	121

Cuttin disc ø:	450mm/30mm
Cutting height:	153 mm
Engine Power:	4,2 / 3,2 kW
Rpm:	2760 U/min
Table size:	1110 / 750 / 850 mm
Vibration frequency:	50 Herz
