Railing holder type S

Product number: 316V

Stk

Description

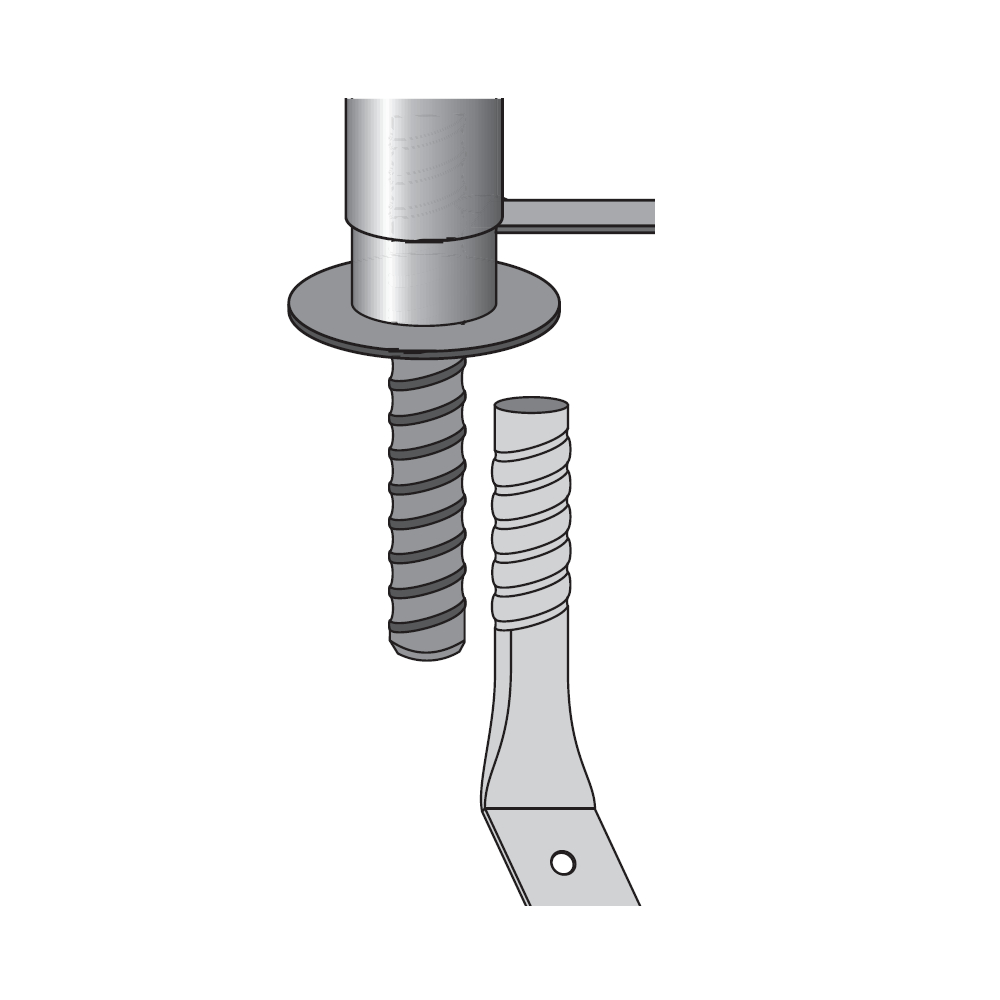

Railing holder type S is screwed into the concreted anchor case or the corner adapter, e.g. in balcony plates, bridge cornices, ceiling edges, cantilever plates...
All board holders are swivelling around 360°.

The corner adapter is screwed laterally into the anchor case and is fixed with the anchor tie groove to the construction unit.

Ideal for stair cheeks or cantilever plates in those a fastening of the railing is only laterally possible.
