Properties

Abmessung in mm:	2100 x 2400 mm
Stärke in mm:	10 mm

VIBA Plex F Formwork Board 10

Product number: 83R2010

Available, delivery time: 1-3 days

Price on request

Quadratmeter

m²

Description

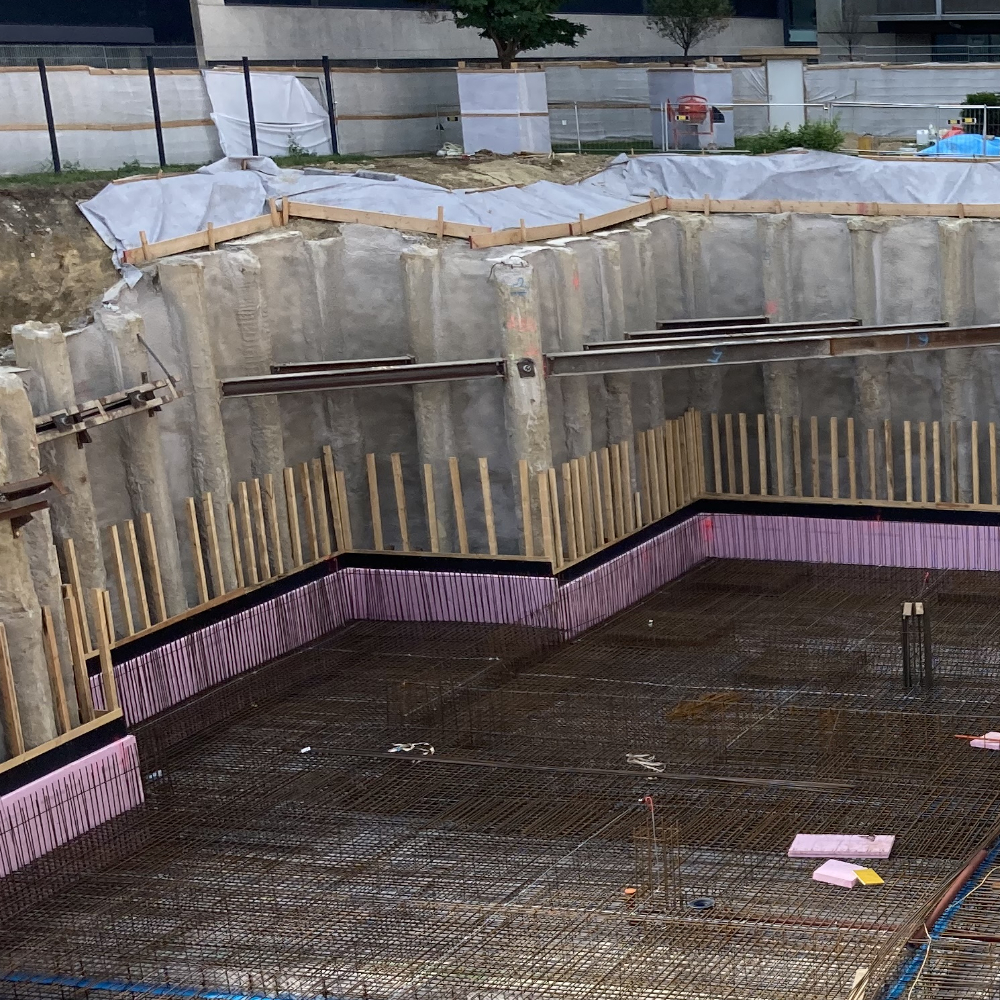

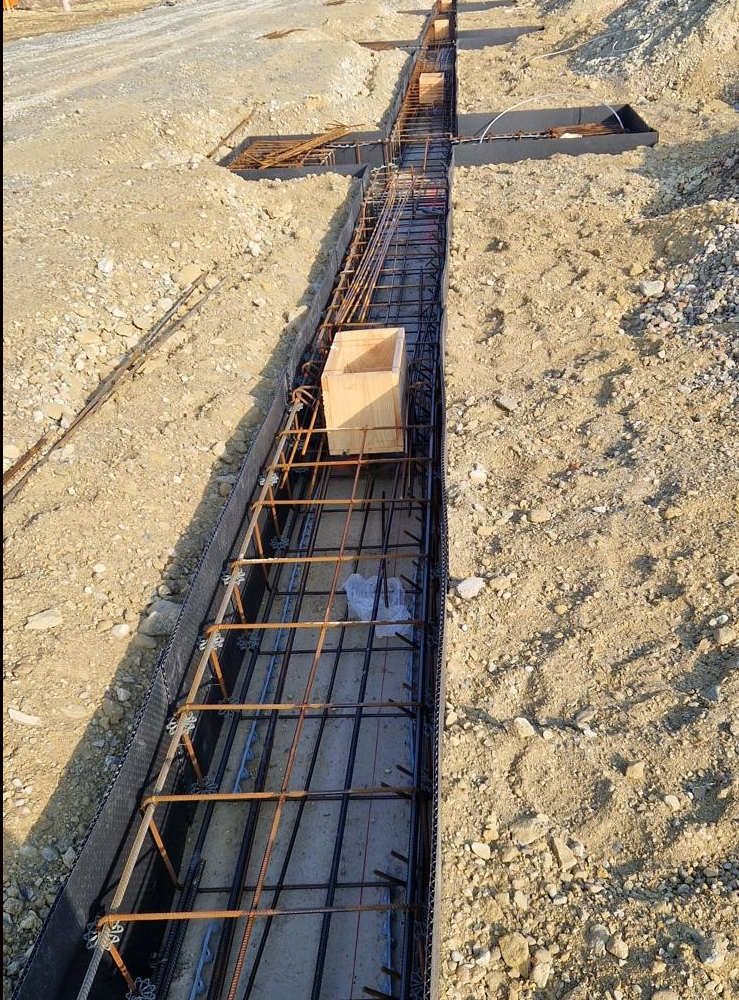

The board is a universal usable and cost-effective shuttering for single and strip foundations. The structure of the board allows the absorption of a lot of pressure and by cutting in one side of the baord, it can be easily bent around corners. Board size: 5.04 m²

Advantages:

low dead weight of the plate
assembly possible without crane and other aids
prefabricated foundations with low installation time
environmentally friendly, not hazardous to water, material recycling possible
single or strip foundations can be made easily without additional tools
no abherent required
dimensionally stable

Abmessung in mm:	2100 x 2400 mm
Stärke in mm:	10 mm
