Properties

Ausführung: ØA = 45,5 mm, ØB = 34 mm, L = 39 mm
ø in mm: 45 mm

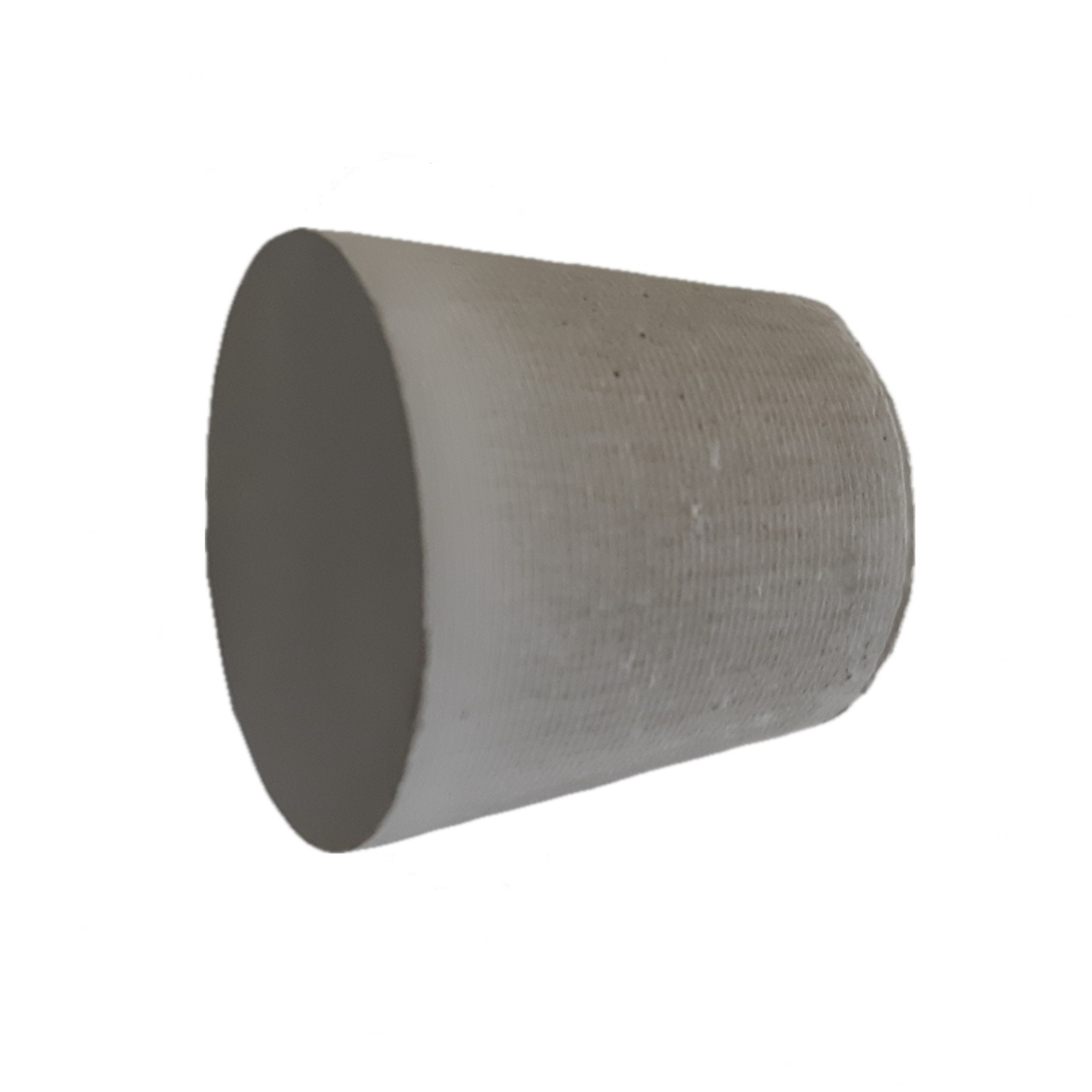

Exposed concrete cone for pressure cones 50 mm

Product number: 65AK0103

Available, delivery time: 1-3 days

Ausführung

Price on request

Stück
Stk

Description

High-class precisely tailored exposed concrete cone. After removing the pressure cones.



Properties

Ausführung: ØA = 45,5 mm, ØB = 34 mm, L = 39 mm
ø in mm: 45 mm
Filter products
Variants

With the help of our variant list you can find your article faster and easier.

Product Nr.
Product
Ausführung
Price
Action
65AK0101
 Exposed concrete cone for pressure cones 50 mm
ØA = 43 mm, ØB = 32 mm, L = 39 mm
65AK0102
 Exposed concrete cone for pressure cones 50 mm
ØA = 43 mm, ØB = 28 mm, L = 48 mm
65AK0103
 Exposed concrete cone for pressure cones 50 mm
ØA = 45,5 mm, ØB = 34 mm, L = 39 mm
65AK011
 Exposed concrete cone for pressure cones 50 mm
ØA = 59 mm, ØB = 47 mm, L = 45 mm
65AK0111
 Exposed concrete cone for pressure cones 50 mm
ØA = 30 mm, ØB = 28 mm, L = 30 mm
65AK0112
 Exposed concrete cone for pressure cones 50 mm
ØA = 33 mm, ØB = 28 mm, L = 20 mm
65AK05
 Exposed concrete cone for pressure cones 50 mm
ØA = 52 mm, ØB = 46 mm, L = 55 mm
65AK08
 Exposed concrete cone for pressure cones 50 mm
ØA = 56 mm, ØB = 42 mm, L = 46 mm
65AK10
 Exposed concrete cone for pressure cones 50 mm
ØA = 58 mm, ØB = 52 mm, L = 30 mm
