Properties

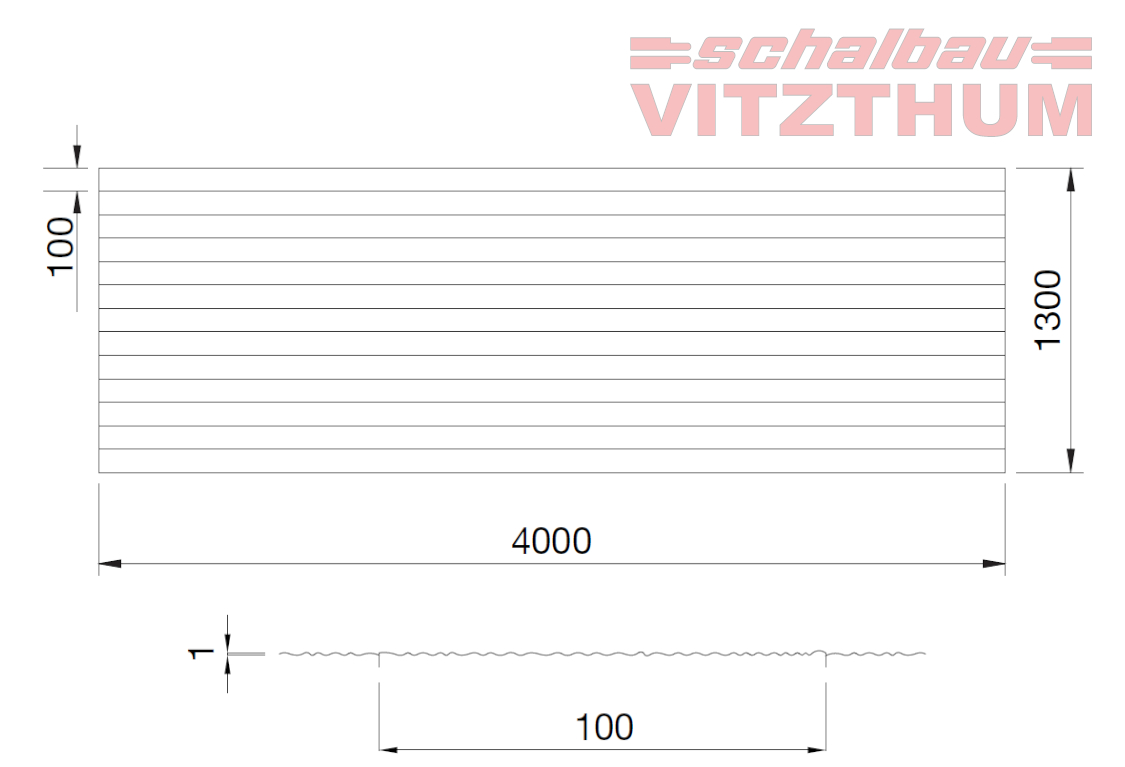

Ausführung:	Mod. 005 - Abm 4 000 x 1.300mm

Strukturmatten / Matrizen für Betonwand

Product number: 45N005

Ausführung

Mod. 005 - Abm 4 000 x 1.300mm

Mod. 053 - Abm. 4.000 x 1.210mm

Mod. 051 - Abm. 4.000 x 1.220mm

Stk

Description

Textured formliners from Schalbau Vitzthum in various designs for your exposed concrete wall. The mats can be attached to the formwork either with glue or nails.

Processing instructions in the download tab.

Tolerance range length and width +/- 2.0 mm

Properties

Ausführung:	Mod. 005 - Abm 4 000 x 1.300mm

Variants

With the help of our variant list you can find your article faster and easier.

Product Nr.	Product	Ausführung
45N005	Strukturmatten / Matrizen für Betonwand	Mod. 005 - Abm 4 000 x 1.300mm
45N051	Strukturmatten / Matrizen für Betonwand	Mod. 051 - Abm. 4.000 x 1.220mm
45N053	Strukturmatten / Matrizen für Betonwand	Mod. 053 - Abm. 4.000 x 1.210mm

Product Nr. : 45N005

Strukturmatten / Matrizen für Betonwand

Price

Ausführung: Mod. 005 - Abm 4 000 x 1.300mm

In Stock

Available, delivery time: 1-3 days

Product Nr. : 45N051

Strukturmatten / Matrizen für Betonwand

Price

Ausführung: Mod. 051 - Abm. 4.000 x 1.220mm

In Stock

Available, delivery time: 1-3 days

Product Nr. : 45N053

Strukturmatten / Matrizen für Betonwand

Price

Ausführung: Mod. 053 - Abm. 4.000 x 1.210mm

In Stock

Available, delivery time: 1-3 days
