Ribbed drawn metal Superrip

Stärke in mm:	0,58 mm

Stärke in mm:	0,58 mm

Product Nr.	Product	Stärke in mm	Price	Action
69R04	Ribbed drawn metal Superrip	0,58 mm	Log in to see more information	Log in or Sign up
69R06	Ribbed drawn metal Superrip	0,40 mm	Log in to see more information	Log in or Sign up

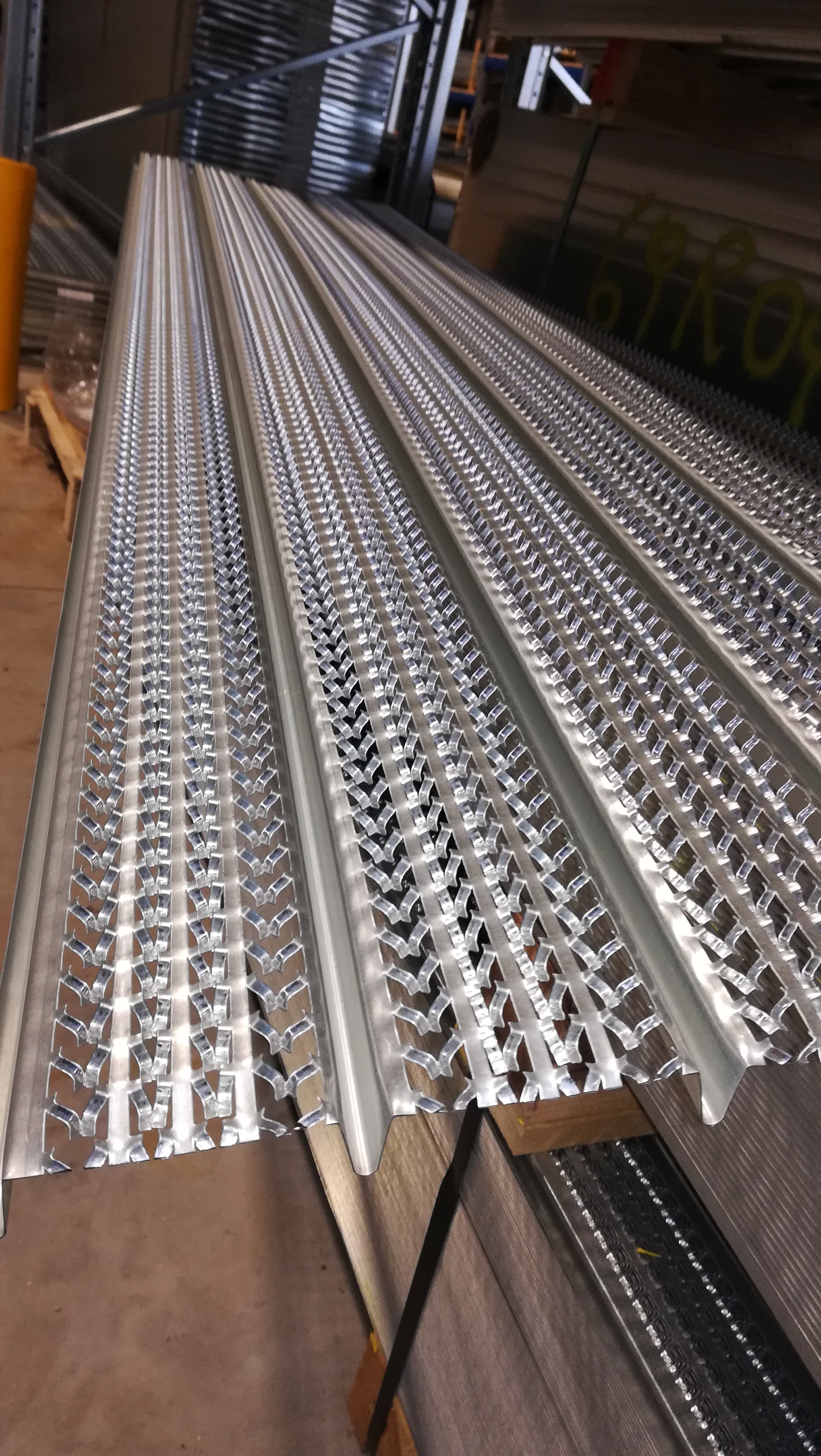

Ribbed drawn metal Superrip

Used as shuttering formwork in concrete and reinforced concrete construction. Longitudinal ribs ensure high load-bearing capacity. Strong composite effect becauce of the strong surface profiling. Particularly high stability thanks to 21 mm high ribs and bead reinforcement as well as a higher material thickness of 0.4 or 0.6 mm. Very cost-effective, as there is no need to remove or clean the formwork Element size 200 x 44.5 cm

Ripped drawb netak Lochripp

Element size 250 x 60 cm Used as permanent formwork in concrete and reinforced concrete construction. Longitudinal ribs ensure high load-bearing capacity. Strong bonding effect through stong surface profiling. Great stability thanks to 10 mm high ribs and bead reinforcement. Very cost-effective because there is no need to remove or clean the formwork

Ripped drawb netak Lochripp

Element size 250 x 60 cm Used as permanent formwork in concrete and reinforced concrete construction. Longitudinal ribs ensure high load-bearing capacity. Strong bonding effect through stong surface profiling. Great stability thanks to 10 mm high ribs and bead reinforcement. Very cost-effective because there is no need to remove or clean the formwork

Upturn beam element - with water bar holder bottom plate / wall

Upturn beam element made of wave-profiled perforated metal plate in order to set on edge in the area of the bottom plate. Including a integrated water bar or joint plate holder.Element length: 2500 mm (standard)

Formwork stripes

The formwork stripes is used to create recesses in base plates and ceiling. The formwork stripes (length: 10m) are perforated in transverse direction each 5 cm. It is possible to creates recesses in different dimensions. As example: 25 / 25 , 20 / 20 or 15 / 15. The profiling allows optimum connection in concrete. Available in all heights from 14 to 36 cm. Installation instruction: 1. Cut the needed length with a cutter from the roll. 2. Fold the formwork stripes in the required size. 3. Connect the overlapped endings with binding wire. 4. Nail the recess quiver sideward through the punch opening.

VIBA Plex F Formwork Board 10

The board is a universal usable and cost-effective shuttering for single and strip foundations. The structure of the board allows the absorption of a lot of pressure and by cutting in one side of the baord, it can be easily bent around corners. Board size: 5.04 m² Advantages: low dead weight of the plate assembly possible without crane and other aids prefabricated foundations with low installation time environmentally friendly, not hazardous to water, material recycling possible single or strip foundations can be made easily without additional tools no abherent required dimensionally stable

Installationsbloc "Prottelith"

Product properties: non-flammable passable insensitive to moisture frost-resistent easy perforation of openings Bulk density: 300 kg m³, +- 5% Compressive strength: 240 kPa (10% compression) Baustoffklasse: A2, s1, dO(ÖNORM EN 13501-1)

VITZTHUM - square concrete form

Concrete form for square pillars. Easy stripping through integrated division line.

Formwork stripes

The formwork stripes is used to create recesses in base plates and ceiling. The formwork stripes (length: 10m) are perforated in transverse direction each 5 cm. It is possible to creates recesses in different dimensions. As example: 25 / 25 , 20 / 20 or 15 / 15. The profiling allows optimum connection in concrete. Available in all heights from 14 to 36 cm. Installation instruction: 1. Cut the needed length with a cutter from the roll. 2. Fold the formwork stripes in the required size. 3. Connect the overlapped endings with binding wire. 4. Nail the recess quiver sideward through the punch opening.

Extension handle - MAX

Extension handle for MAX Wire tying machine for the RB2, 3, 5, series and RB441T series.
