Sylomer-Polyurethanlager SR110

Properties

Stärke in mm: 12 mm

Sylomer-Polyurethanlager SR110

Product number: 85SR011012
Stärke in mm
m²

Description

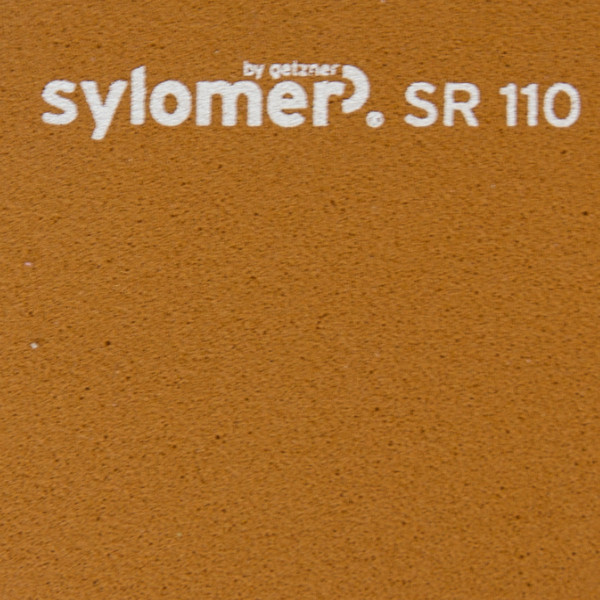

Sylomer sound bearing bearing type SR110

Area of application Pressure load

Deformation

Form factor dependent, the specified values apply to form factor q = 3

Static area of application
(static loads)

up to 0,110 N/mm²

approx. 10 %

Dynamic area of application
(static and dynamic loads)

up to 0,160 N/mm²

approx. 20%

Peak loads
(rare, short-term loads)

up to 3,0 N/mm²

approx. 70%

Properties

Stärke in mm: 12 mm
Downloads "Sylomer-Polyurethanlager SR110"
Filter products
Variants

With the help of our variant list you can find your article faster and easier.

Product Nr.
Product
Stärke in mm
85SR011012
 Sylomer-Polyurethanlager SR110
12 mm
85SR011025
 Sylomer-Polyurethanlager SR110
25 mm
