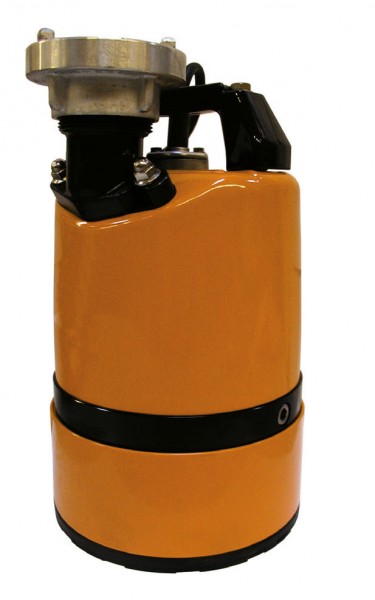

Submersible pump LSC 1.4 S flat suction cup up to 1 mm water level

Product number: 55LSC1

Stk

Description

Technical specifications:

with connection coupling Storz C, flat suction cup up to 1mm water level - fire brigade version
The pump is safe to run dry (semi-submerged or in slurping mode)

Power: 0.48 kW, 2.9 A, 230V 50Hz

Delivery rate max. 220 l / min

Sieve hole diameter: Ø 6mm

Pressure connection diameter: 25 mm

Scope of delivery: connection cable 10m with plug

Type of medium: dirty water

Delivery height max: 11 m

Weight: 12.0 kg

Immersion depth: 10 m

Max. Temperature: 40 ° C

Accessories Art. 55 LBE 020: Storz C 52 synthetic fiber hose, length 20m

The LSC 1.4S flat vacuum cleaner is an ideal fire service pump.

It is particularly suitable for extracting residual water up to 1 mm after extinguishing operations. The Storz C version allows flexible operation.
