Console 65 cm lacquered
Product number:
39G0900
Skip product gallery
Customers also viewed
Normal Console 150 cm lacquered
Console suspension (loop) made of 10 mm round bar, for brackets up to 50 mm.

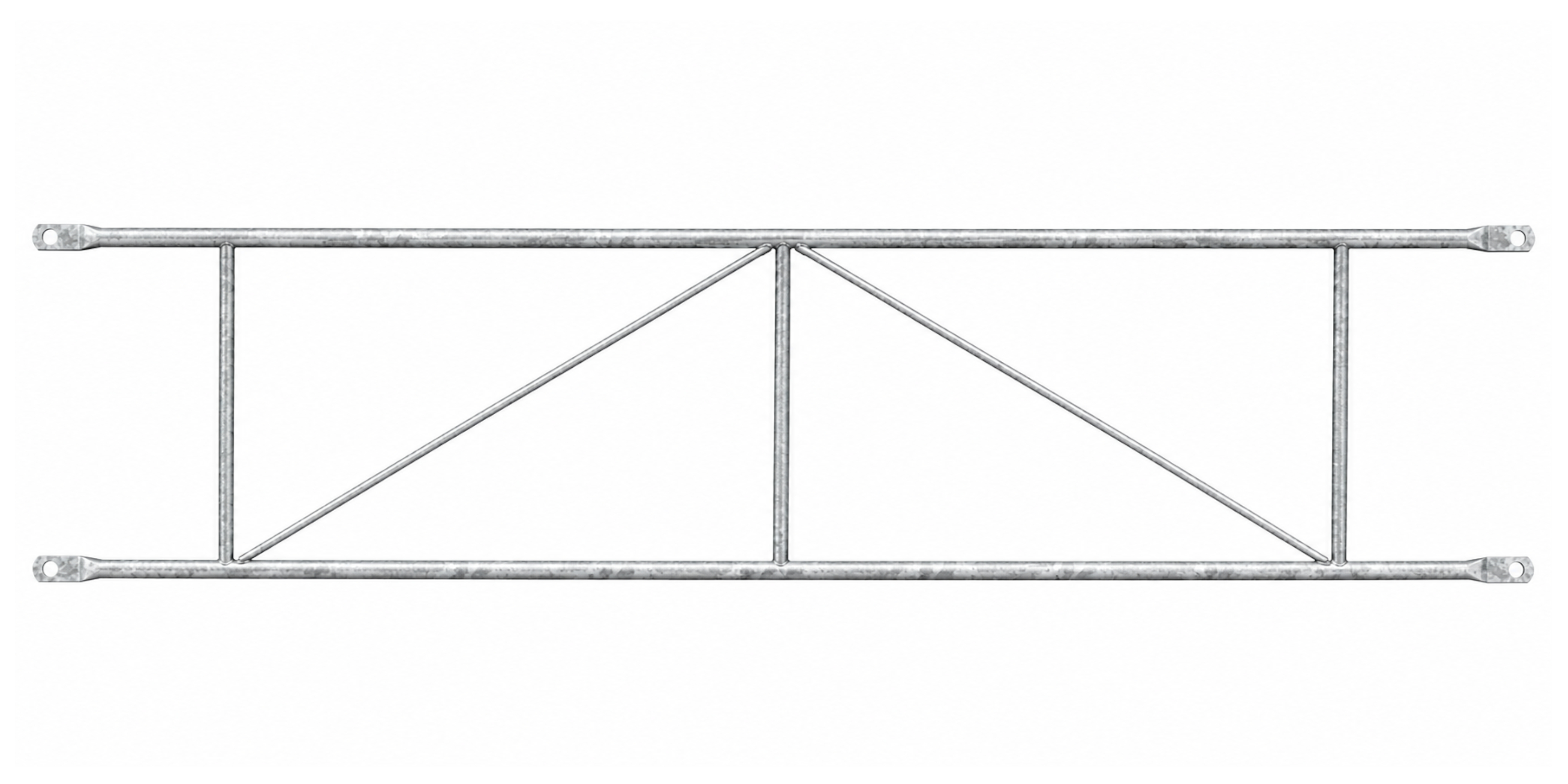

Double railing - adjustable
Simple and safe hooking on the frame for a quick assembly.
All variants in lacquered or of galvanized version available!
Infinitely variable length adjustment.
Hot-dip galvanized version.
In connection with to the railing bolt this double railing can be appropriated everywhere.
Adjustmentrange: 1,70 - 3,00m
Construction joint tape internal with stirrups
With internal round steel stirrups.Prevents the belt from bending during the concreting process.
Typ
a (width)
b
c
f
61AS200
200 mm
70 mm
3,5 mm
15 mm
61AS250
240 mm
80 mm
3,5 mm
15 mm
61AS320
320 mm
100 mm
4,0 mm
15 mm
Material: soft PVC; other materials on request!
Log in to see more information
Foundation anchor glav, height 90 cm
Simple support for the base plate stripping
Because of its expanded earth spike also applicable for soft grounds.
Faulenzer (special props)
Perpendicular and angle setting
Infinite adjustment with integrated spring base part
Can be clamped between ground and ceiling
Adjustment of the levels possible in varaible heights by sliding eyelets
With synthetic cap on the upper end
From profiled pipe inside 35 x 35, outer 40 x 40 mm
Baustütze - Mini (DC)
With covered thread (DC).
Headplate: 120 x 120 x 5 mm, with borehol ø 40 mm
G-hook: Ø 12 mm (no loosing) with bearing ring (loose)
Failure loads tested at concentric load, pay attention to security factor!
Ankerstab Ø 15,0 mm (90 kN) schwarz
Hot-rolled steel. Self-cleaning D&W Twin-rib threaded steel. Standard length: 6m
Other lengths on request
Log in to see more information
Rebar spacers with sidewise recesses
U-shaped bar spacer made of plastic used for the efficient rearrangement of the reinforcement.
Mill length 200 cm.
Other lengths on request.
