Properties
| Engine: | 50 Hz / 230 od. 400 V |
|---|---|
| Gewicht / Stk: | 95 kg |

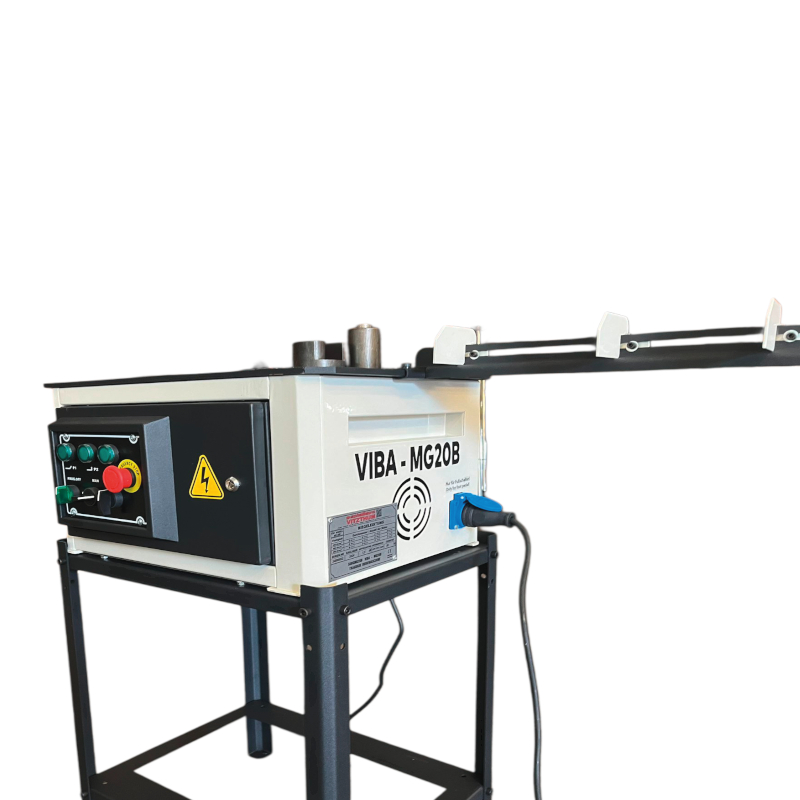

VIBA-MG20B tragbare Biegemaschine, 220V, incl. Zubehör
Product number:
56BGMG20B
Description

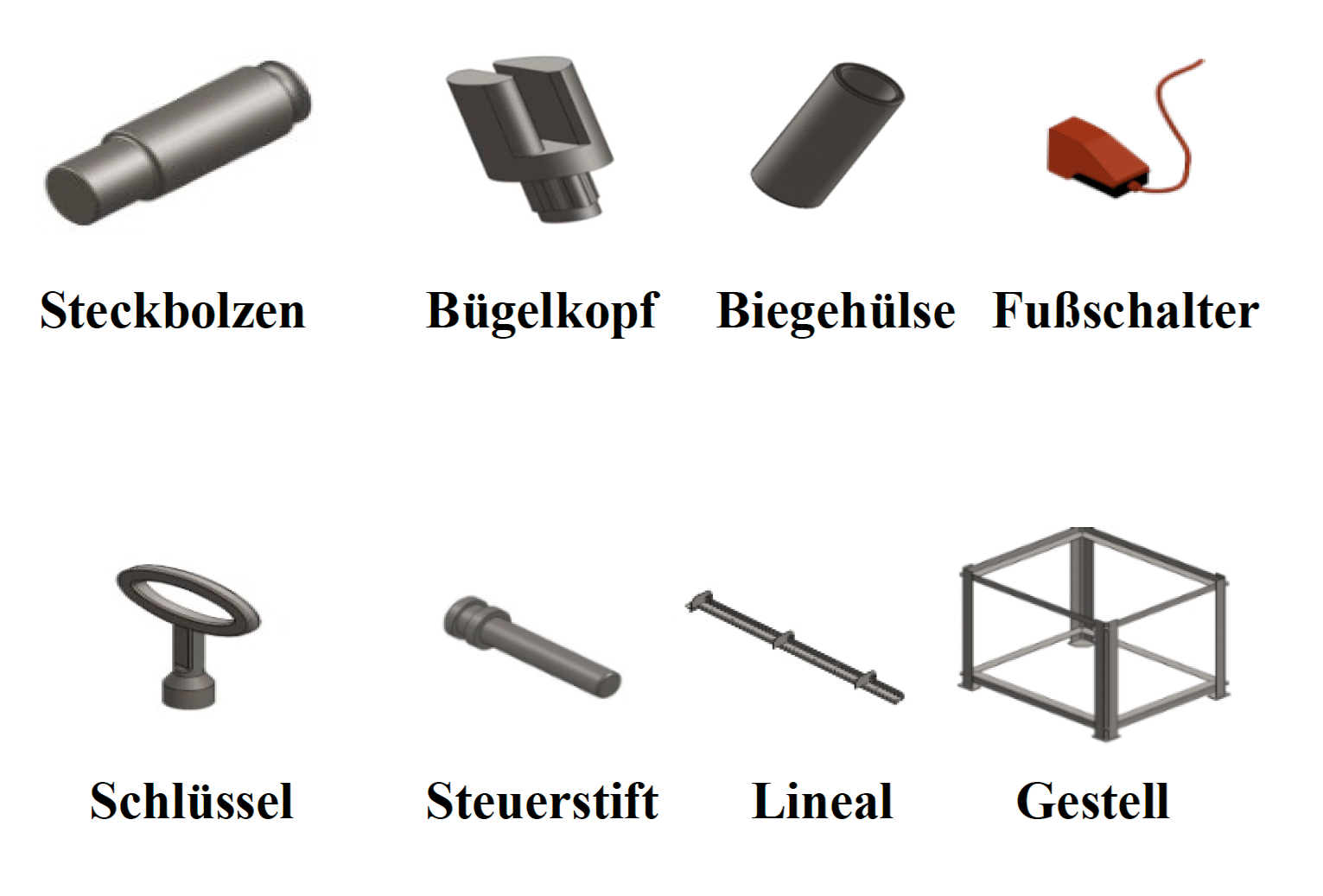

Die Maschine ist zum Biegen von Stahl-/Bewehrungsmaterial bestimmt. Das Material wird in den vorgesehenen Bügelkopf eingelegt. Mithilfe des Biegebolzens kann das Material sowohl im Manuell- als auch im Automatik-betrieb durch Betätigen des Fußschalters gebogen werden. Es sind bis zu 9 Biegesequenzen programmier- und die Winkel über die Steuerstifte einstellbar.
| Stahl N/mm² |
Durchmesser mm / Anzahl der Stäbe | |||
| 450 | Ø 20 x 1 | Ø 14 x 2 | Ø 12 x 3 | Ø 10 x 4 |
| 650 | Ø 16 x 2 | Ø 12 x 2 | Ø 10 x 3 | Ø 8 x 5 |
| 850 | Ø 14 x 1 | Ø 10 x 2 | Ø 8 x 2 | Ø 6 x 6 |
Properties
| Engine: | 50 Hz / 230 od. 400 V |
|---|---|
| Gewicht / Stk: | 95 kg |
Downloads "VIBA-MG20B tragbare Biegemaschine, 220V, incl. Zubehör"
