Properties

Höhe in cm:	97 cm

VIBA-Fundamentspanner

Product number: 65F

Available, delivery time: 1-3 days

Höhe in cm

97 cm

142 cm

Price on request

Stk

Description

used in connection with perforated tapes by large area formwork in different heights available

by height 970 mm: max. element width 900 mm

by height 1420 mm: max. element width 1350 mm

Properties

Höhe in cm:	97 cm

Variants

With the help of our variant list you can find your article faster and easier.

Product Nr.	Product	Höhe in cm	Price	Action
65F	VIBA-Fundamentspanner	97 cm	Log in to see more information	Log in or Sign up
65F2	VIBA-Fundamentspanner	142 cm	Log in to see more information	Log in or Sign up

Product Nr. : 65F

VIBA-Fundamentspanner

Price

Höhe in cm: 97 cm

In Stock

Available, delivery time: 1-3 days

Product Nr. : 65F2

VIBA-Fundamentspanner

Price

Höhe in cm: 142 cm

In Stock

Available, delivery time: 1-3 days

Zubehör

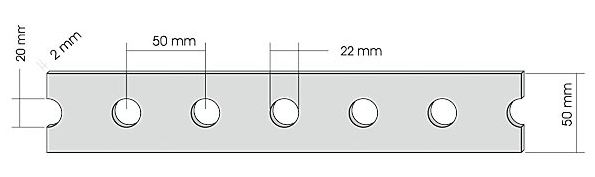

VIBA-punched steel strip 50 x 2,0 mm hole Ø 20/22 mm

Horizontal frame-elements for formworks of fundaments. Anchoring:On top with anchor rod Ø 15,0 mm and "super" nut.On base with VIBA-foundation tensioner and VIBA-punched steel strip.Wall thicknesses within a 5 cm grid can be produced. Load:punched steel strip max. 12 kNpunched steel strip length = wall thickness + 50 cm
