Properties

Stärke in mm: 12 mm

Sylomer SR 1200/12 weinrot

Product number: 85SR120012
Stärke in mm

Price on request

m²

Description

Sylomer Trittschall-Lager Typ SR 1200

Einsatzbereich Druckbelastung

Verformung

Formfaktorabhängig, die angegebenen Werte gelten für Formfaktor q = 3

Statischer Einsatzbereich
(statische Lasten)

bis 1,2 N/mm²

ca. 11%

Dynamischer Einsatzbereich
(statische und dynamische Lasten)

bis 1,8 N/mm²

ca. 17%

Lastspitzen
(seltene, kurzzeitige Lasten)

bis 6,0 N/mm²

ca. 35%













Properties

Stärke in mm: 12 mm
Downloads "Sylomer SR 1200/12 weinrot"
Filter products
Variants

With the help of our variant list you can find your article faster and easier.

Product Nr.
Product
Stärke in mm
Price
Action
85SR120012
 Sylomer SR 1200/12 weinrot
12 mm
85SR120025
 Sylomer SR 1200/25 weinrot
25 mm
Skip product gallery

Customers also viewed

Sylomer SR 1200/25 weinrot
Sylomer SR 1200/25 weinrot
Sylomer Trittschall-Lager Typ SR 1200 Einsatzbereich Druckbelastung Verformung Formfaktorabhängig, die angegebenen Werte gelten für Formfaktor q = 3 Statischer Einsatzbereich(statische Lasten) bis 1,2 N/mm² ca. 11% Dynamischer Einsatzbereich(statische und dynamische Lasten) bis 1,8 N/mm² ca. 17% Lastspitzen(seltene, kurzzeitige Lasten) bis 6,0 N/mm² ca. 35%
Abstandrohre mit aufgerauter Oberfläche von Ø 20mm bis Ø 40mm in Bunden. Standardlänge ist 2,0 Meter.
Spacer tubes with a roughened surface
Spacer tubes with a roughened surface from Ø 20mm to Ø 40 mm in bundlesØ 20mm to Ø 22mm 100 running meters per bundleØ 26mm to Ø 32mm 50 running meters per bundleØ 40mm 30 running meters per bundle
Abstandrohre mit aufgerauter Oberfläche von Ø 20mm bis Ø 40mm in Bunden. Standardlänge ist 2,0 Meter.
Spacer tubes with a roughened surface
Spacer tubes with a roughened surface from Ø 20mm to Ø 40 mm in bundlesØ 20mm to Ø 22mm 100 running meters per bundleØ 26mm to Ø 32mm 50 running meters per bundleØ 40mm 30 running meters per bundle
Formwork oil Prägnit ST300
Formwork oil Prägnit ST300
Tested formwork oil suitable for all formworks. Good degradable with certificate Mixture of mineral oil and plant-based oil Apply a thin layer for best effect with protection of the formwork. No cleaning of the formwork neccessary.  Degredable for 81% within 21 days.
Exposed concrete plugs for pressure cone
Exposed concrete plugs for pressure cone
The high-quality exposed concrete cones are bonded, with contact adhesive X1, in the remaining opening after removing the pressure cones. Apply the contact adhesive on the backside to obtain a clean visible area.
Exposed concrete plugs for pressure cone
Exposed concrete plugs for pressure cone
The high-quality exposed concrete cones are bonded, with contact adhesive X1, in the remaining opening after removing the pressure cones. Apply the contact adhesive on the backside to obtain a clean visible area.
Sabajoint-Fugenband, 5 x 9 mm breit
Sabajoint-Fugenband, 5 x 9 mm breit
Schalungsfugenbänder Sabajoint: Spezial-Abdichtungsbänder für den Sichtbeton. Sie gewährleisten eine makellose saubere Sichtbeton-Oberfläche, lassen sich einfach und zeitsparend an der Schalung anbringen und rückstandslos wieder entfernen. Sabajoint Material: Polyuretanschaum auf Esterbasis, einseitig selbstklebend mit Folienzwischenträger.
Mauerkragen aus TPE - Themoplastischem Elastomer
Mauerkragen aus TPE - Themoplastischem Elastomer
MPA certificated! Masonry collars from TPE-Themoplastic Elastomer Application area:The sealing collar is used whenever a water-tight lead-through of pipe lines through foundation slabs, walls, and masonry is required. The sealing collar, which has passed the pressure test at 5 bar, prevents moisture from getting into the building along the outer pipe walls. Tested for impermeability up to 50 m water column. Properties:The sealing collar is supplied in pre-assembled condition with 2 stainless steel straps. The circular, 4 cm wide collar, which is equipped with additional waterstops, prevents liquids from getting into the building. Small waterstops inside the collar ensure water-tightness up to a water column of 50 m after tightening of the stainless steel fastening straps.Assembly clean pipe surface if necessary slide on the sealing collar and fix it in the centre of the concrete/wall tighten the fastening straps

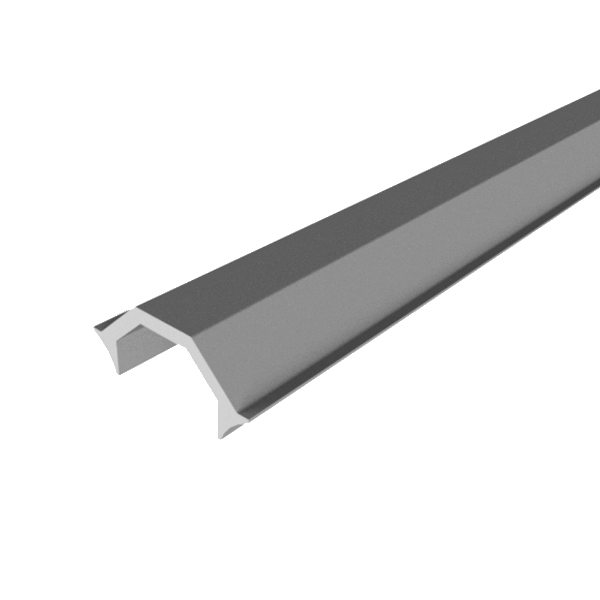

Wassernase
Wassernase
Rainfall drips off at the drip edge without hitting the underside of the surface or the vertical wall.

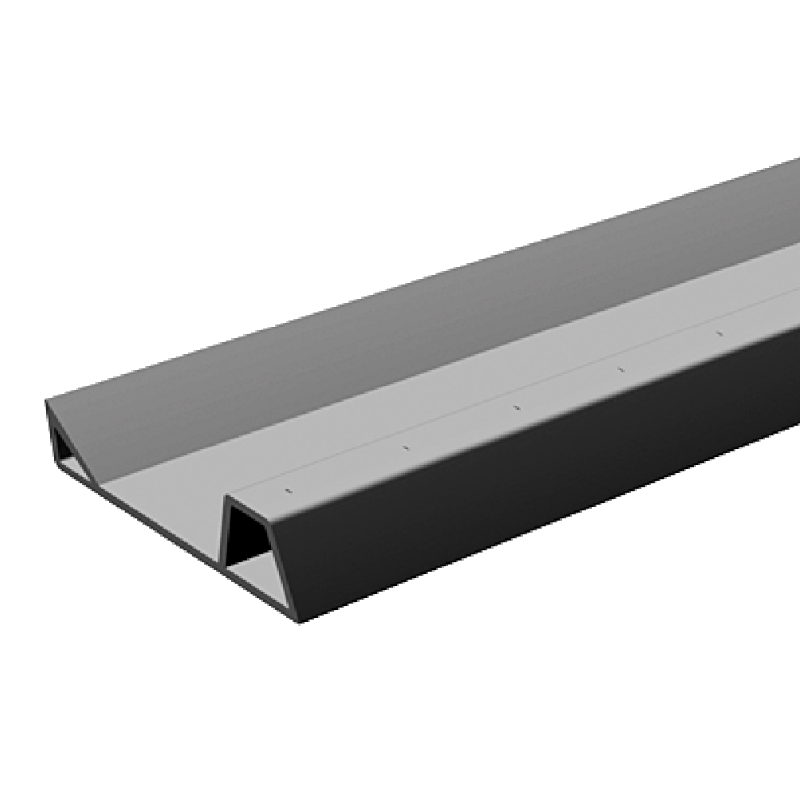

Drip rail
