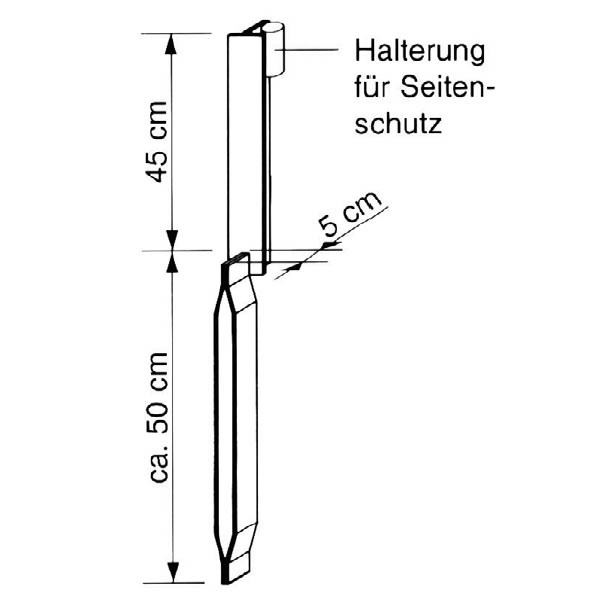

Randabschaler
Product number:
39R
Description
Easy device for shuttering of ceiling etc.
Mounting on the walls with any turnbuckle or threaded rod.
Height adjustable through longitudinal slot.
- Time saving
- Easy handling
- No Wood surplus
