Properties

Ausführung: Standard
Höhe in cm: 18 cm
ø in mm: 6 mm

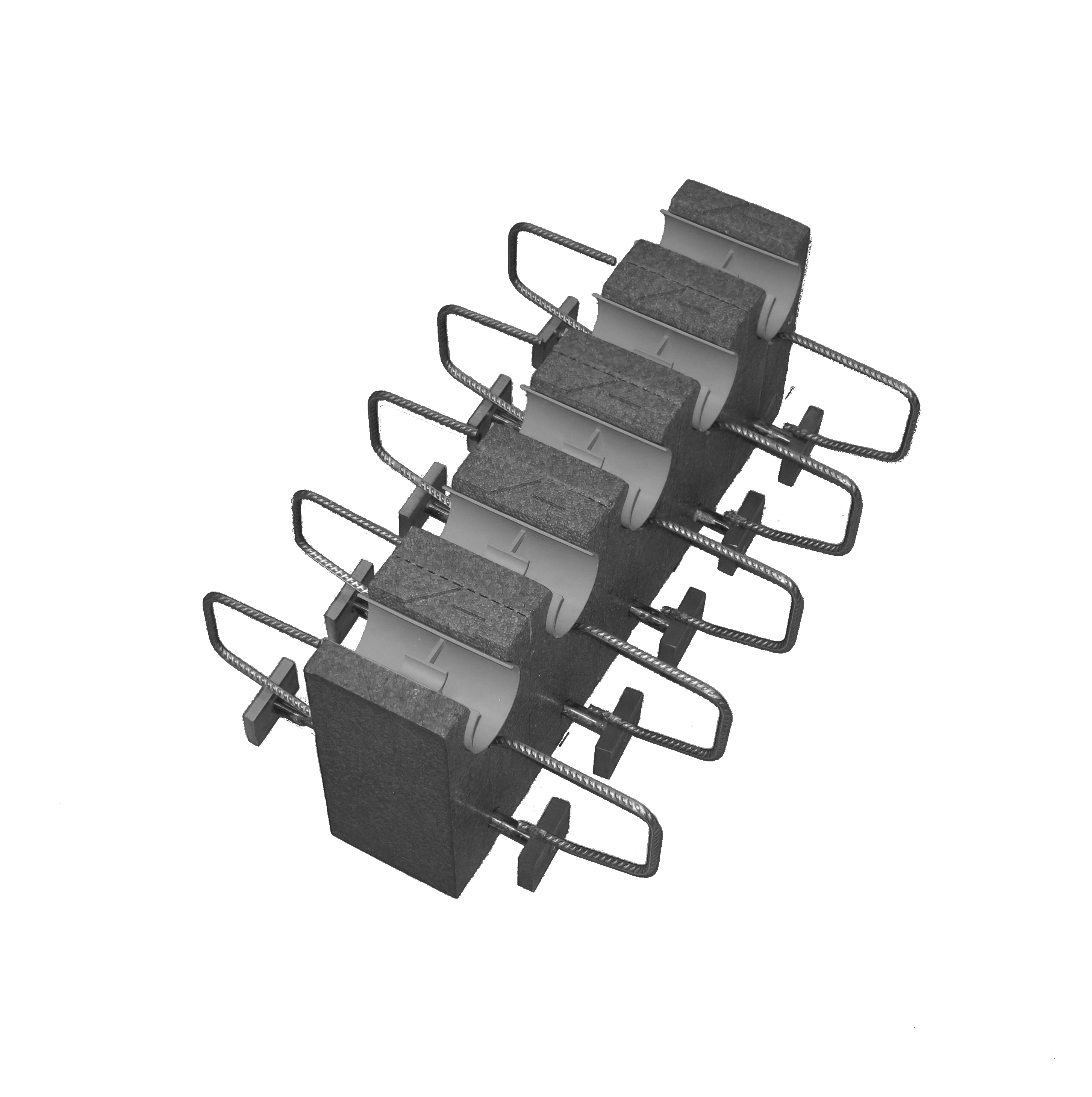

ISITHERM Maxi

Product number: 85KI18M6

Available on request

Höhe in cm
ø in mm
Ausführung

Price on request

Stk

Description

Insulation is very important by building construction. A special problem zone are overhanging building components which can cause a massive energy waste through thermal bridges.

The highly developed Thermoelement ISITHERM provide a perfect Insulation-connection and solve this problem.

Dimension and material

Heigth

16, 18, 20, 22, 25 cm

Insulation-strength

10 cm

Elementlength

Standard 75 cm, Maxi 50 cm (by equal number iron)

Weigth

ca. 4,50 kg

Insulating material

Reinforcement

EPS Plus

Steel St 37



















Properties

Ausführung: Standard
Höhe in cm: 18 cm
ø in mm: 6 mm
Filter products
Variants

With the help of our variant list you can find your article faster and easier.

Product Nr.
Product
Ausführung
Höhe in cm
ø in mm
Price
Action
85KI16M6
 ISITHERM Maxi
Standard
16 cm
6 mm
85KI16M6R90
 ISITHERM Maxi
Brandbeständig R90
16 cm
6 mm
85KI16M8
 ISITHERM Maxi
Standard
16 cm
8 mm
85KI16M8R90
 ISITHERM Maxi
Brandbeständig R90
16 cm
8 mm
85KI18M6
 ISITHERM Maxi
Standard
18 cm
6 mm
85KI18M6R90
 ISITHERM Maxi
Brandbeständig R90
18 cm
6 mm
85KI18M8
 ISITHERM Maxi
Standard
18 cm
8 mm
85KI18M8R90
 ISITHERM Maxi
Brandbeständig R90
18 cm
8 mm
85KI20M6
 ISITHERM Maxi
Standard
20 cm
6 mm
85KI20M6R90
 ISITHERM Maxi
Brandbeständig R90
20 cm
6 mm
