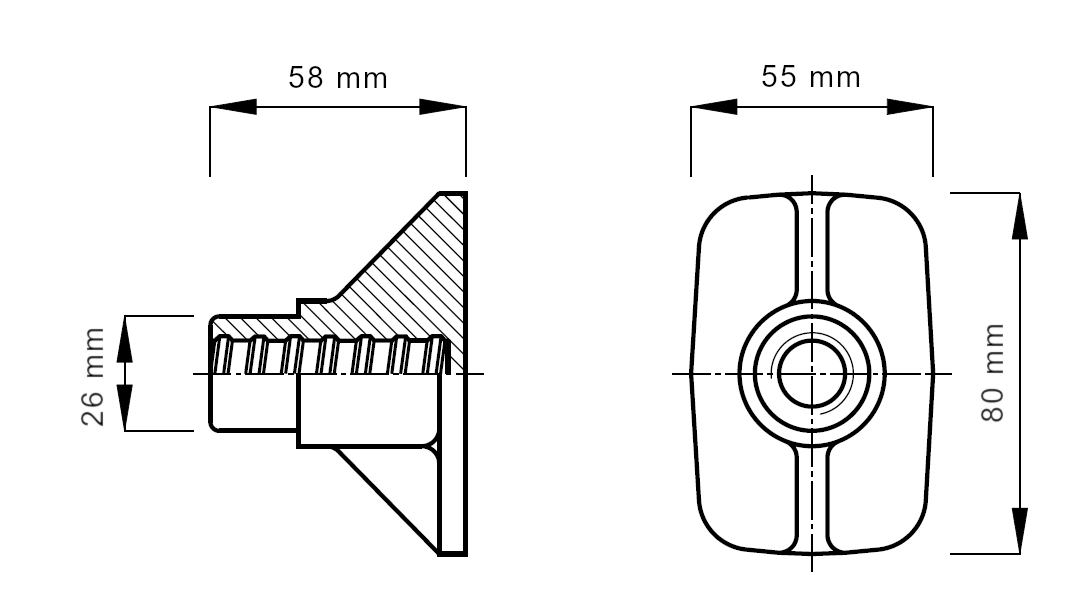

Montageanker GTW 45 15,0 mm
Montageanker GTW 45 15,0 mm
Montageanker GTW 45 15,0 mm

Properties

Ausführung: Klein

Montageanker GTW 45 15,0 mm

Product number: 65CM15

Available, delivery time: 1-3 days

Ausführung

Price on request

Stk

Description

Ausführung schwarz. Zur Befestigung in Schalung wird der Montagefuß (65CM15F) empfohlen.
Einbautiefe: 108 mm, Betongüte: >= B 25.
Max. Tragkraft mit 3-facher Sicherheit bei: B25 = 30kN, B35 = 40 kN.

Prüfbescheinigung in Anlehnung DIN 18216

Properties

Ausführung: Klein
Filter products
Variants

With the help of our variant list you can find your article faster and easier.

Product Nr.
Product
Ausführung
Price
Action
65CM15
 Montageanker GTW 45 15,0 mm
Klein
65CM15K

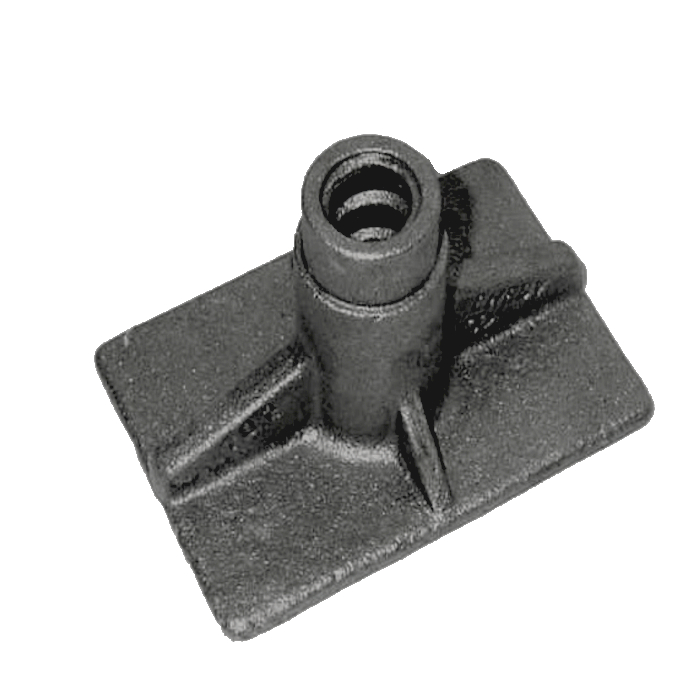

 Montageanker 15,0 mm groß
Groß
Skip product gallery

Zubehör

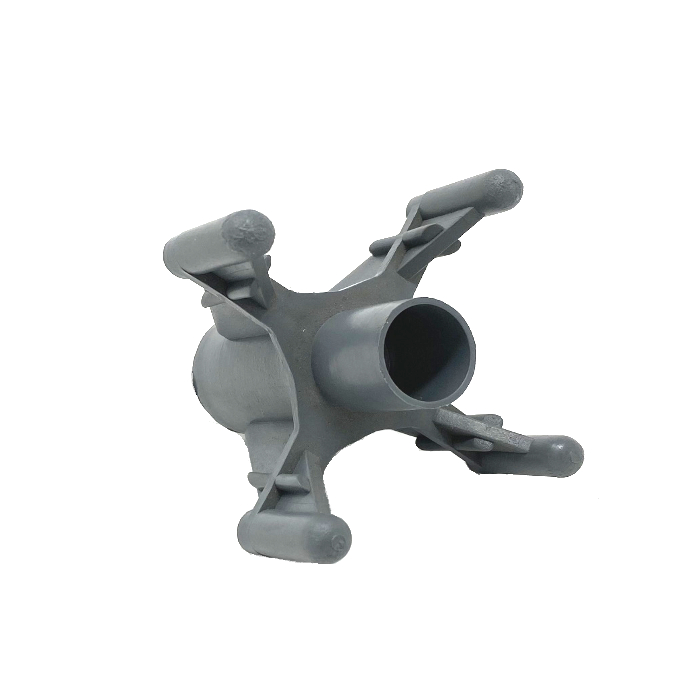

Montagefuß aus PVC für Montageanker

Ausführung Kunststoff (PVC).Passend für Montageanker groß (65CM15K) und klein (65CM15).Eventuell verschließen mit Stopfen Ø 20 mm. a = Innendurchmesser
