Properties
| Cutting depth: | max. 145 mm |
|---|---|
| Leistung: | 4,8 kW |

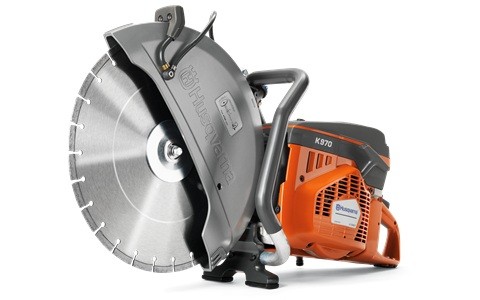

Splitter saw Husqvarna model K 970 16 "
Product number:
58A09716
Description
Robust, reliable, light and powerful - the K 970 Splitter saw machine is always ready for use. The perfect choice when you need an all-round Splitter saw . The machine works even under the most difficult conditions, such as fuel and weather fluctuations. Together with the KV 970 guide carriage, it is also suitable for use in road construction. The guide carriage also has the advantage that you can concentrate fully on cutting.
| Displacement | 93,6 ccm |
|---|---|
| Power | 4,8 kW |
| Front handle vibrations | 3,9/3,4 m/s² |
|---|---|
| Rear handle vibrations | 4,2/4,8 m/s² |
| Sound pressure level | 104 dB(A) |
| Sound power level, LWA | 115 dB(A) |
| Cutting disc diameter | 350/400 mm |
|---|---|
| Cutting depth, max. | 125/145 mm |
| Combined bushing diameter | 20/25,4 mm |
| Weight (excluding cutting equipment) | 10,9/11,9 kg |
|---|
Properties
| Cutting depth: | max. 145 mm |
|---|---|
| Leistung: | 4,8 kW |
Downloads "Splitter saw Husqvarna model K 970 16 ""
